ESYLUX PD-ATMO 360i/8 A KNX sensor infrarrojo pasivo (PIR) - cableado - 8 m - techo - interior - blanco

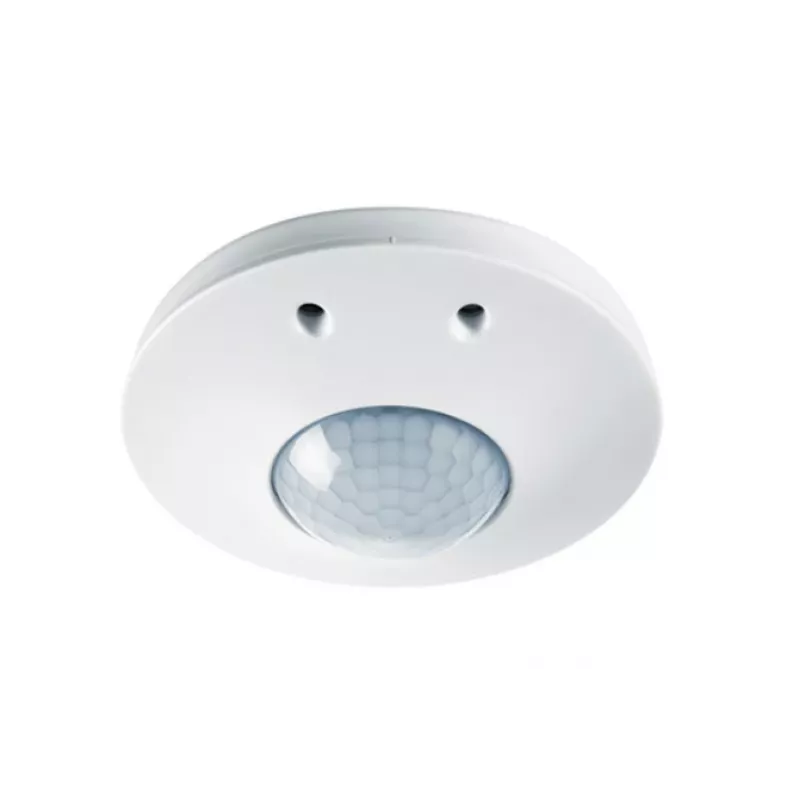

The ESYLUX PD-ATMO 360i/8 A KNX is a high-performance passive infrared (PIR) presence detector designed for ceiling mounting in indoor environments. It integrates seamlessly into KNX building automation systems, offering precise presence detection, constant light control, and HVAC management. With a 360° detection angle and an 8-meter diameter range (at 2.5 m mounting height), it is ideal for offices, conference rooms, classrooms, and other commercial spaces.

Advantages

Energy-efficient presence detection with integrated light, temperature, and humidity sensors enables intelligent lighting and climate control. The device supports scene management and constant light control, enhancing comfort and reducing energy consumption. Its UV-stabilised polycarbonate housing ensures durability and long-lasting performance.

Suitable for

• Office buildings and meeting rooms
• Educational facilities (classrooms, lecture halls)
• Healthcare facilities (patient rooms, corridors)
• Retail and commercial spaces
• Any indoor area requiring automated lighting and HVAC control

Key specifications

• Sensor Technology: Passive Infrared (PIR)
• Bus System: KNX
• Connectivity: Wired
• Detection Angle: 360°
• Detection Range: 8 m diameter (at 2.5 m mounting height)
• Mounting Type: Ceiling (flush or surface mount)
• Application: Indoor
• Colour: White
• Integrated Sensors: Light, Temperature, Humidity
• Protection Class: IP20
• Operating Voltage: KNX Bus (21-30V DC)
• Recommended Mounting Height: 2.0 - 3.0 m
• Material: UV-stabilised Polycarbonate
• Operating Temperature: -20 °C to +50 °C

Recommendations

For optimal performance, mount the sensor at a height of 2.5 m and ensure clear line of sight to the monitored area. Pair with KNX actuators and control panels for a complete building automation solution.
