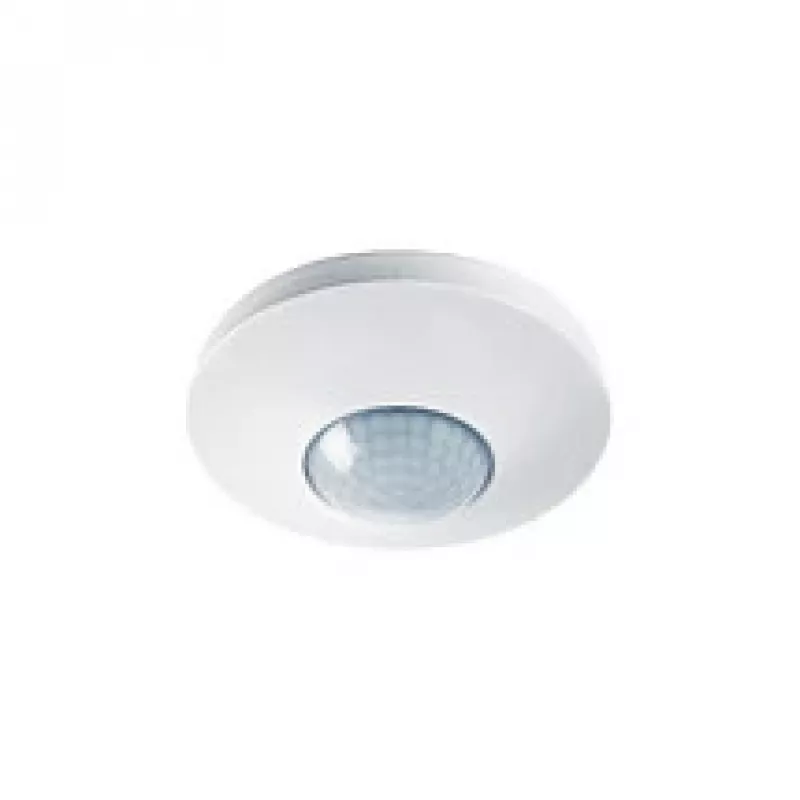

ESYLUX PD-C 360i/8plus sensor infrarrojo pasivo (PIR) - con cable - 8 m - techo - interior - blanco

The ESYLUX PD-C 360i/8plus is a high-quality passive infrared (PIR) sensor designed for ceiling flush mounting in indoor environments. It offers a 360° detection angle and a detection diameter of 8 meters at a 3-meter installation height, making it ideal for automatic lighting control in offices, corridors, and other commercial spaces. The sensor operates at 230 V AC and features adjustable time delay (60 sec to 15 min) and light measurement range (5-2000 Lux). Its robust UV-stabilised polycarbonate housing ensures durability, while the screw terminals simplify wiring.

Advantages

Energy-efficient lighting control with stand-by power consumption of only 0.5 W. Easy installation and configuration with adjustable settings. Reliable detection performance with a wide 360° coverage area.

Suitable for

• Indoor ceiling mounting in offices, meeting rooms, and hallways
• Automatic lighting control in commercial buildings
• Energy-saving applications requiring presence detection

Key specifications

• Sensor Technology: Passive Infrared (PIR)
• Mounting Type: Ceiling flush mount
• Detection Angle: 360°
• Detection Range (Diameter): 8 m (at 3 m installation height)
• Recommended Installation Height: 2.5 m
• Operating Voltage: 230 V AC, 50 Hz
• Max. Switching Capacity (Resistive Load): 2300 W
• Max. Switching Capacity (Inductive Load): 1150 VA (cos φ = 0.5)
• Light Measurement Range: 5 - 2000 Lux
• Time Delay Setting: 60 sec - 15 min (adjustable)
• Protection Class: IP20
• Color: White (RAL 9010)
• Operating Temperature Range: -25 °C to +50 °C
• Stand-by Power Consumption: approx. 0.5 W
• Number of Switching Channels: 1 (Lighting)
• Connection Type: Screw terminals
• Housing Material: UV-stabilised polycarbonate
• Application Area: Indoor

Recommendations

For optimal performance, install at the recommended height of 2.5 m and ensure the sensor has a clear view of the area to be monitored. Suitable for use with LED, fluorescent, and incandescent lighting loads.
