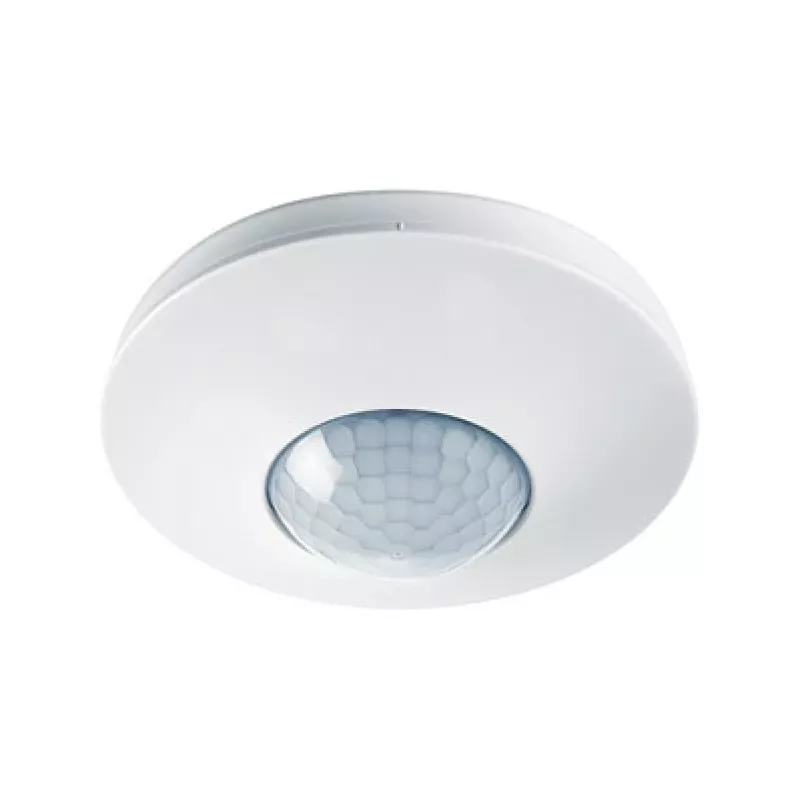

ESYLUX PD-C360i/8 sensor infrarrojo pasivo (PIR), montaje en techo, 8 m de alcance, blanco, con cable

The ESYLUX PD-C360i/8 is a high-quality passive infrared (PIR) sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and an 8-meter diameter range (at 3 m mounting height), it provides reliable presence detection for energy-efficient lighting management. The sensor is wired and flush-mounted to the ceiling, making it ideal for offices, corridors, and other commercial or residential spaces.

Advantages

Energy-saving automatic lighting control with adjustable time delay and light level settings. Easy installation with flush-mount ceiling design. Robust UV-stabilised polycarbonate housing ensures long-lasting performance. Low standby power consumption of only 0.5 W.

Suitable for

• Indoor ceiling mounting in offices, meeting rooms, hallways, and storage areas
• Automatic lighting control in commercial and residential buildings
• Replacing conventional light switches for improved energy efficiency

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Installation location: Indoor
• Connectivity: Wired
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity (resistive load): 2300 W
• Switching capacity (LED load): 600 W
• Time setting range: 10 s - 30 min, pulse
• Light level setting: 10 - 2000 Lux
• Protection class: IP20
• Operating temperature: -20 °C to +50 °C
• Power consumption (standby): approx. 0.5 W
• Optimal mounting height: 2.5 m
• Colour: White
• Number of channels: 1 (lighting)
• Material: UV-stabilised polycarbonate

Recommendations

For best performance, mount at the recommended height of 2.5 m and ensure the sensor has a clear view of the area to be monitored. Suitable for use with LED, fluorescent, and incandescent loads up to the specified switching capacities.
