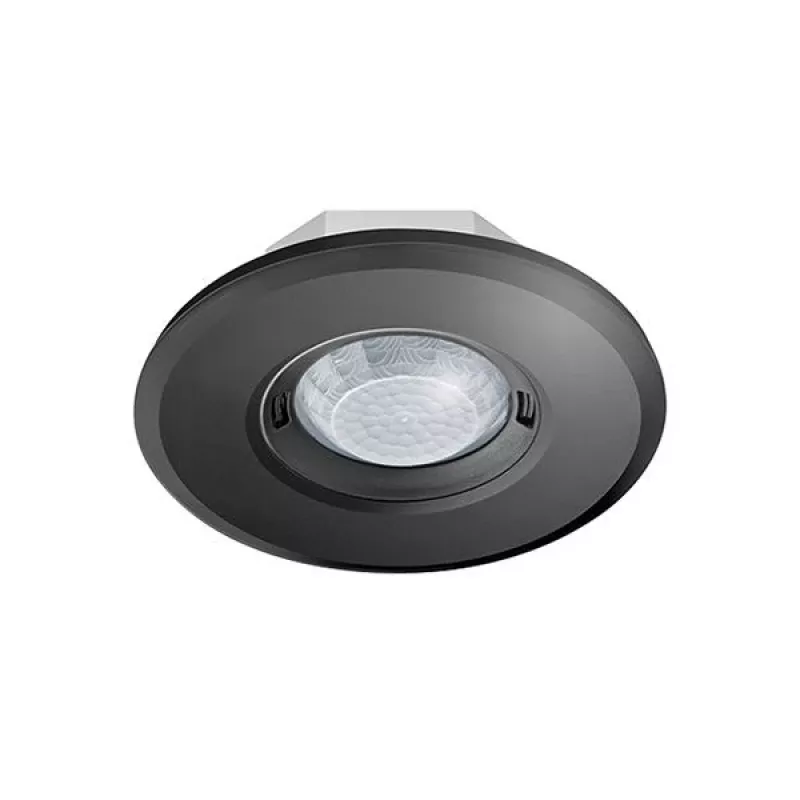

ESYLUX PD-FLAT 360i/8 RB detector de movimiento enrasado en techo, negro, 360°, 8 m de alcance

The ESYLUX PD-FLAT 360i/8 RB is a high-quality passive infrared (PIR) motion detector designed for ceiling flush-mounting. With a 360° detection angle and an 8-meter diameter range (at 3 m installation height), it is ideal for automatic lighting control in offices, corridors, and commercial spaces. The detector features adjustable time delay (10 s to 60 min) and brightness threshold (5 to 2000 lux), ensuring energy-efficient operation.

Advantages

Energy-saving automatic lighting control with precise detection. Easy installation with flush-mount design. Robust UV-stabilised polycarbonate housing for long-lasting performance. Low standby power consumption (<0.5 W).

Suitable for

• Office rooms and meeting areas
• Corridors and stairwells
• Storage rooms and utility spaces
• Commercial and public buildings

Key specifications

• Detection angle: 360°
• Detection range (diameter): 8 m at 3 m installation height
• Recommended installation height: 2.5 - 3.5 m
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 600 W
• Time delay setting: 10 s - 60 min
• Brightness threshold setting: 5 - 2000 lux
• Protection class: IP40
• Ambient temperature: -25 °C to +50 °C
• Standby power consumption: < 0.5 W
• Housing material: UV-stabilised polycarbonate
• Colour: Black (RAL 9005)
• Diameter: 80 mm
• Installation depth: 30 mm

Recommendations

For optimal performance, install at a height of 2.5–3.5 m. Ensure the sensor has a clear view of the area to be monitored. Suitable for indoor use only.
