Delock Adaptador D-Sub 9 Polos Hembra a Regleta de Conexión de 4 Polos con Interruptor DIP y Resistencia de Terminación de 120 Ohmios para CAN / LIN (91294)

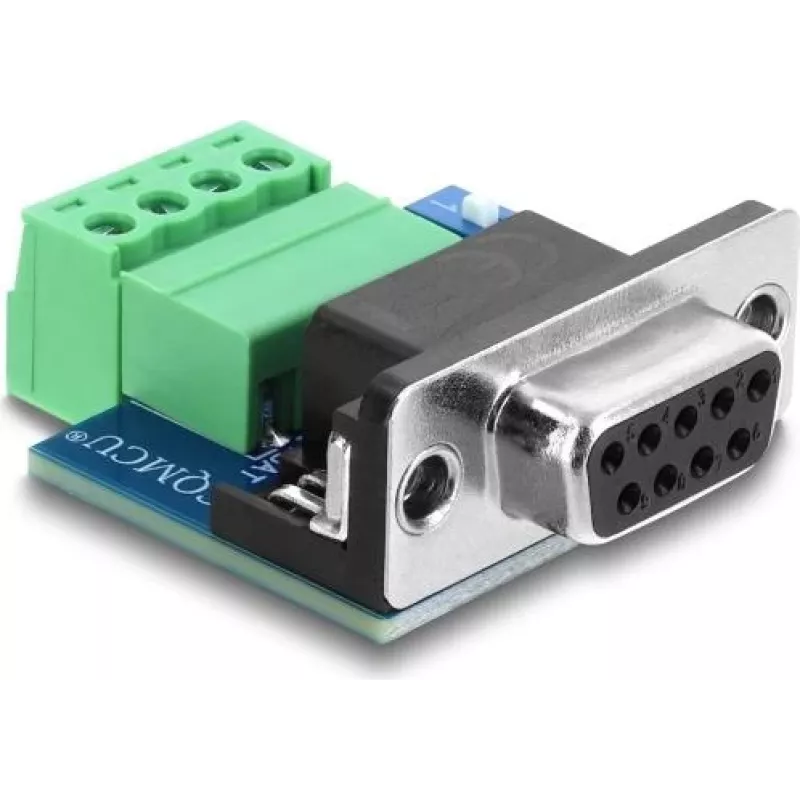

This Delock adapter converts a D-Sub 9 pin female connector to a 4 pin screw terminal block, featuring a DIP switch for enabling/disabling a 120 Ohm termination resistor. It is designed for CAN (Controller Area Network) and LIN (Local Interconnect Network) bus systems, providing a simple and reliable connection for industrial and automotive applications.

Advantages

Easy termination control via DIP switch; robust screw terminal block for secure wiring; compact plastic housing; supports standard CAN/LIN pinout.

Suitable for

• Connecting CAN/LIN devices to a D-Sub interface
• Prototyping and testing bus systems
• Industrial automation and automotive diagnostics

Key specifications

• Connector 1: D-Sub 9 pin female
• Connector 2: 4 pin screw terminal block
• Termination resistor: 120 Ohm (switchable via DIP switch)
• Supported bus systems: CAN, LIN
• Housing material: Plastic
• Colour: Black
• Operating temperature: -20 °C to 85 °C
• Compliance: RoHS, CE

Recommendations

For reliable CAN/LIN connections, ensure proper wiring: CAN_H to Pin 7, CAN_L to Pin 2, GND to Pin 3, V+ to Pin 9.
