EUROLITE LED-Strip Power Feeder conector clip-on sin soldadura de 5 pines 12mm 50530074

When installing long runs of 12mm RGBW or RGB+CCT LED strips, voltage drop and signal degradation can cause uneven brightness and colour shifts. This EUROLITE 5-pin power feeder solves that by allowing you to inject power and data at any point along the strip without soldering. The clip-on design snaps securely onto the strip's copper pads, creating a reliable connection in seconds.

Who is it for

Ideal for electricians, lighting installers, and DIY enthusiasts working with 5-pad 12mm LED strips in cove lighting, under-cabinet, display, or architectural applications. It is perfect for extending runs beyond a single power supply's limit or for adding controllers mid-run.

Main features

• Solderless clip-on connector for 12mm wide 5-pin LED strips
• Compatible with RGBW and RGB+CCT (5-pad) strip types
• Enables power and signal injection at any point along the strip

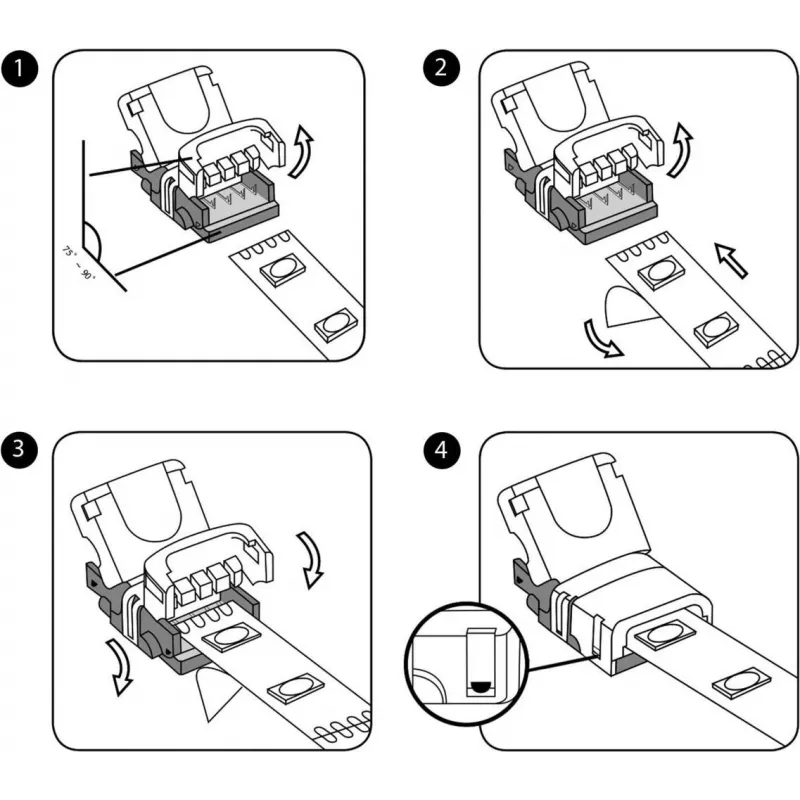

• Tool-free installation – simply open, align, and snap shut
• Durable plastic housing with metal contacts for reliable conductivity
• Supports DC 5V, 12V, and 24V systems (passive component)
• White housing blends with most strip installations

Specifications

• Product type: LED strip connector / power feeder
• Connector type: Solderless clip-on
• Pin configuration: 5-pin
• Compatible LED strip width: 12 mm
• Connection method: Quick connector
• Application: Power and signal injection
• Compatibility: RGBW, RGB+CCT LED strips (5-pad, 12mm)
• Material: Plastic housing, metal contacts
• Colour: White
• Voltage compatibility: DC 5V, 12V, 24V (passive)
• Installation: Easy, tool-free
• Usage environment: Indoor
• Quantity: 1 piece

Tips

For best results, ensure the LED strip's copper pads are clean and free from adhesive residue before clipping the connector. Position the feeder at intervals to maintain consistent brightness across long runs. Always verify the strip's pinout matches the connector's 5-pin configuration (typically +, R, G, B, W or +, CW, WW, R, G).
