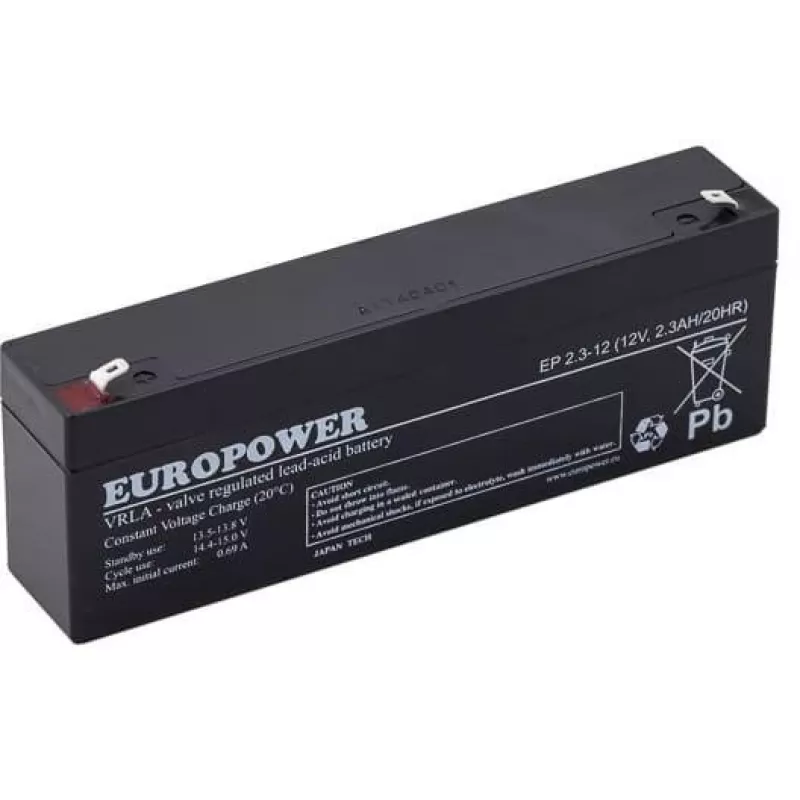

EUROPOWER EP 2.3-12 pila AGM 12V 2,3Ah vida útil de diseño 6-9 años

The EUROPOWER EP 2.3-12 is a high-quality AGM (Absorbent Glass Mat) VRLA battery designed for standby power applications. With a nominal voltage of 12V and a capacity of 2.3Ah (C20), this maintenance-free battery offers a design life of 6-9 years according to EUROBAT classification (Standard Commercial). It is ideal for use in alarm systems, emergency lighting, UPS, and other backup power systems.

Advantages

• Maintenance-free operation – no water refilling required
• Low self-discharge rate (<3% per month at 25°C) ensures long shelf life
• Wide operating temperature range (-20°C to 60°C discharge, -10°C to 60°C charge)
• High discharge current capability (max 34.5A for 5 seconds)
• Durable ABS case material
• F1 Faston tab terminals (187) for easy connection

Suitable for

• Alarm and security systems
• Emergency lighting
• Uninterruptible Power Supplies (UPS)
• Telecommunications equipment
• Medical devices
• Electronic cash registers

Key specifications

• Brand: EUROPOWER
• Model: EP 2.3-12
• Nominal Voltage: 12 V
• Nominal Capacity (C20): 2.3 Ah
• Battery Technology: AGM (Absorbent Glass Mat)
• Battery Type: VRLA (Valve Regulated Lead Acid)
• Design Life: 6-9 years (EUROBAT Standard Commercial)
• Terminal Type: F1 (Faston Tab 187)
• Internal Resistance: Approx. 60 mΩ (at 25°C)
• Max. Discharge Current (5 sec): 34.5 A
• Max. Charging Current: 0.69 A
• Float Charge Voltage: 13.5 - 13.8 V (at 25°C)
• Cycle Use Voltage: 14.4 - 15.0 V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 60°C
• Operating Temperature Range (Charge): -10°C to 60°C
• Self-Discharge Rate: < 3% per month (at 25°C)
• Case Material: ABS
• Maintenance: Maintenance-free
• Total Height (with terminals): 66 mm

Recommendations

For optimal performance and longevity, charge the battery with a compatible charger that provides the correct float or cycle voltage. Store in a cool, dry place. Always follow manufacturer guidelines for installation and use.
