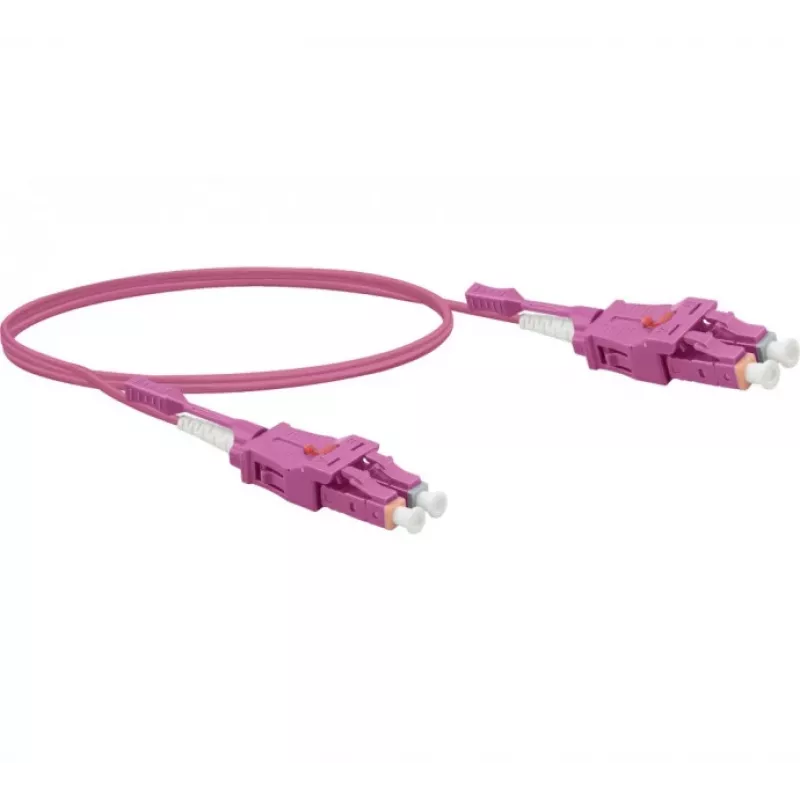

Exertis Connect Cable de conexión de fibra óptica LC/UPC a LC/UPC OM4 multimodo dúplex, 2m, Uniboot, Libre de halógenos, Violeta Erika 392952

High-density fiber patching in data centers often suffers from cable congestion and difficult polarity management. This Exertis Connect uniboot patch cable solves both by combining both fibers into a single 2mm jacket, reducing bulk and simplifying installation.

Who is it for

Network engineers and data center technicians who need reliable, high-performance OM4 multimode connectivity in space-constrained environments. Ideal for 10G, 40G, and 100G Ethernet links in enterprise LANs, SANs, and data center interconnects.

Main features

• Uniboot design: single cable body for duplex transmission, reducing cable volume and improving airflow.
• OM4 multimode fiber: supports 10GbE, 40GbE, and 100GbE up to 550m at 10G (per OM4 standard).
• LC/UPC to LC/UPC connectors: precision ceramic ferrules with UPC polish for low insertion loss and high return loss.
• Halogen-free (LSZH) jacket: emits low smoke and no toxic halogens in case of fire, suitable for enclosed spaces.
• 2.0m length with 2mm diameter: flexible and easy to route in high-density patch panels.
• Erika violet jacket: standard OM4 color coding for quick identification.

Specifications

• Connector A: LC/UPC Male
• Connector B: LC/UPC Male
• Fiber mode: Multimode
• Fiber grade: OM4
• Core/cladding diameter: 50/125 µm
• Cable length: 2.0 m
• Cable diameter: 2 mm
• Jacket material: Halogen-free (LSZH)
• Connector design: Uniboot
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB

Tips

For optimal performance, ensure both ends are cleaned before connection and avoid bending beyond the minimum bend radius. Use with OM4-compatible transceivers for best results.
