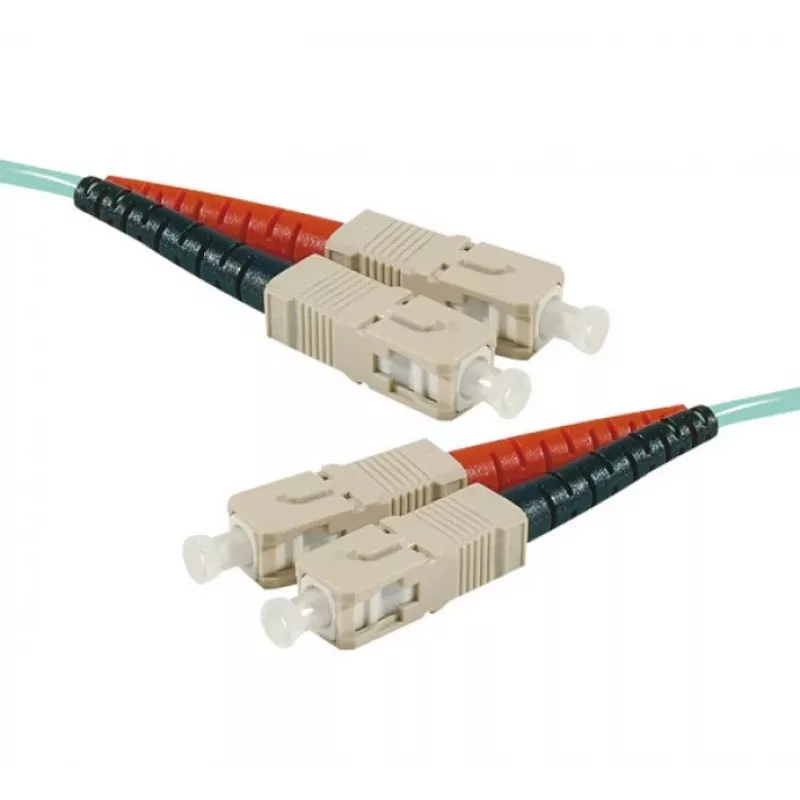

EXERTIS CONNECT cable de conexión de fibra óptica OM3 SC dúplex UPC, 50/125 µm, aqua, 20 m, High Density 392758

This high-density OM3 fibre patch cable stands out with its slim 2 mm diameter, allowing tighter cable management in crowded racks without sacrificing performance. Pre-terminated with SC duplex connectors and UPC polish, it delivers reliable, low-loss connections for high-speed multimode networks.

Highlights

• OM3 multimode fibre supports 10 Gb/s up to 300 m and 40/100 Gb/s up to 100 m
• SC duplex connectors with UPC polish ensure low insertion loss and high return loss
• Aqua jacket colour for easy identification of OM3 fibre
• High-density 2 mm cable diameter saves space in patch panels and cable trays
• 20 m length ideal for inter-rack or intra-rack patching

In daily use

This patch cable is built for data centres and enterprise networks where space is at a premium. The high-density design reduces clutter, while the robust construction maintains signal integrity across the full 20 m span. The SC duplex connectors click securely into place, and the UPC polish minimises reflections for stable, error-free links.

Full specifications

• Fibre type: Multimode OM3, 50/125 µm core/cladding
• Connectors: SC duplex to SC duplex, UPC polish
• Insertion loss: ≤ 0.25 dB per connector pair
• Return loss: ≥ 50 dB per connector pair
• Cable diameter: 2 mm (high density)
• Length: 20 m
• Colour: Aqua
• Standards: IEC 61754, IEC 61755, ISO 11801
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Modal bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm

Final note

A practical choice for high-density fibre patching where performance and space efficiency matter.
