EXERTIS CONNECT Cable de fibra óptica OM4 HD, SC dúplex a LC dúplex, 50/125 µm, violeta erika, 0,5 m 392800

With an insertion loss of ≤ 0.25 dB, this EXERTIS CONNECT OM4 fibre patch cable delivers high-performance optical connectivity for demanding data centre environments. The HD (High Density) design enables efficient cable management in space-constrained installations.

Overview

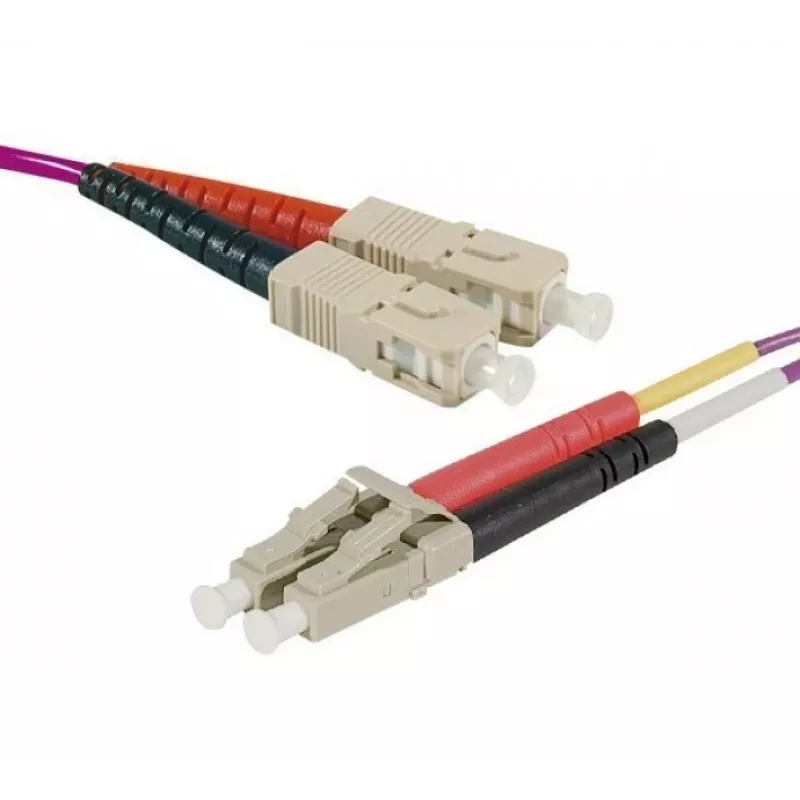

This 0.5 m patch cable features SC Duplex to LC Duplex connectors with UPC polish, ensuring low back reflection and reliable signal integrity. The cable uses 50/125 µm OM4 multimode fibre, optimised for high-speed networks.

What stands out

• OM4 multimode fibre supports 40/100 Gigabit Ethernet up to 150 metres at 850 nm.
• High Density (HD) construction maximises port density in patch panels and enclosures.
• Erika violet jacket provides easy identification in high-density fibre installations.
• Compliant with IEC 61754, IEC 61755, and ISO 11801 standards.

Technical details

• Fibre type: OM4 multimode, 50/125 µm core/cladding diameter.
• Connectors: SC Duplex (A) to LC Duplex (B), UPC polish.
• Insertion loss: ≤ 0.25 dB.
• Supported wavelengths: 850 nm and 1300 nm.
• Bandwidth (EMB): 4700 MHz·km at 850 nm, 500 MHz·km at 1300 nm.
• Attenuation: 2.3 dB/km at 850 nm, 0.6 dB/km at 1300 nm.

Our verdict

A reliable, standards-compliant OM4 patch cable with excellent insertion loss performance, ideal for high-density fibre optic networks.
