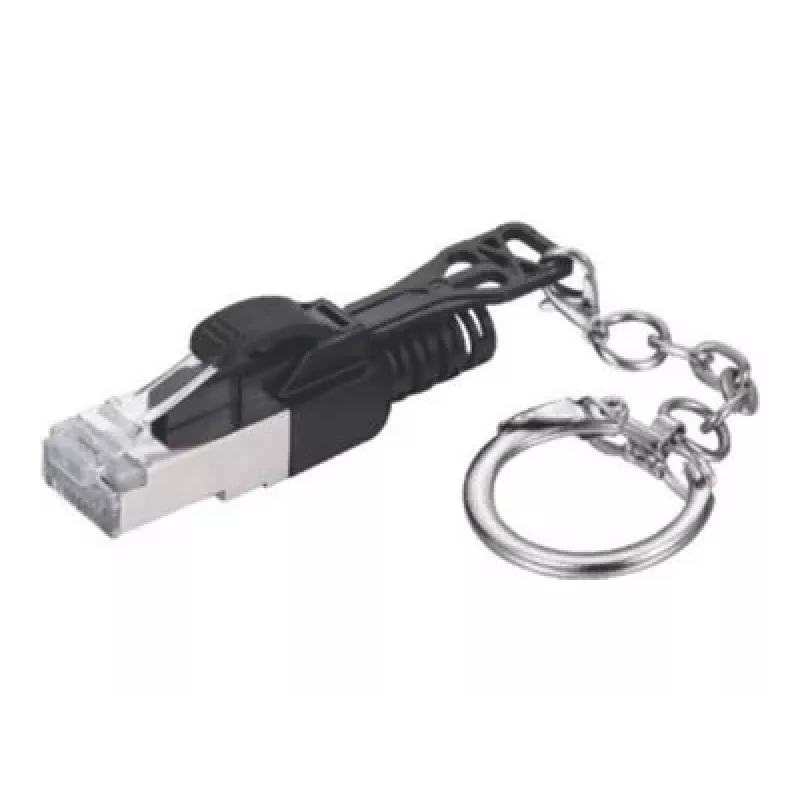

EXERTIS CONNECT conector modular macho RJ45 Cat. 6A, STP, con bloqueo, para cable de red, pack de 10 (920843)

Lockable RJ45 modular plug for 10 Gigabit Ethernet over shielded twisted pair, with gold-plated contacts rated for over 750 insertion cycles.

Overview

This Cat. 6A STP modular plug is engineered for stranded patch cables, supporting 10GBase-T performance. The transparent polycarbonate housing allows visual inspection of termination, while the rear cable entry accommodates AWG 24-26 stranded conductors. A locking mechanism prevents accidental disconnection in high-vibration environments.

What stands out

• Lockable design secures connection against unintended removal
• Gold-plated phosphor bronze contacts (50µ") ensure reliable signal integrity
• Supports 10 Gigabit Ethernet for high-speed data transmission
• Pack of 10 pieces for multiple terminations

Technical details

• Connector type: RJ45 modular plug, 8P8C
• Performance category: Cat. 6A (Class EA)
• Shielding: STP (shielded twisted pair)
• Compatibility: stranded patch cables, AWG 24-26
• Termination: crimp-on
• Housing material: polycarbonate
• Contact material: phosphor bronze with gold plating
• Operating temperature: -10°C to +60°C

Our verdict

A dependable choice for professional network installations requiring secure, high-performance RJ45 terminations.
