EXERTIS CONNECT Conector RJ45 montable en campo, Cat.6A, STP, ángulo ajustable (920822)

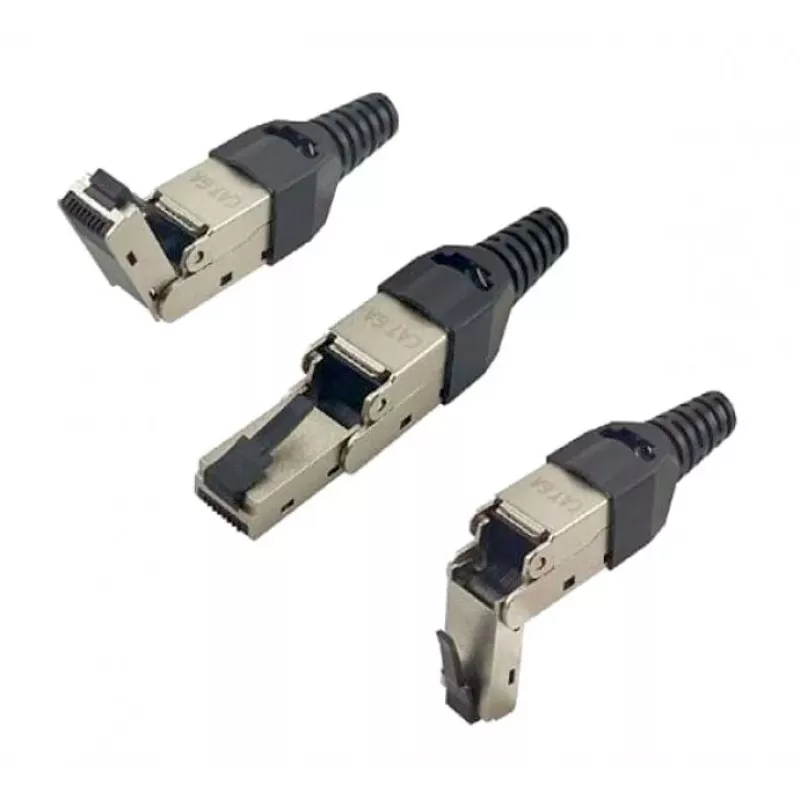

Terminating shielded Cat.6A cable in the field often means juggling crimp tools, dies and awkward angles. This field-terminable RJ45 plug eliminates that hassle: a tool-less IDC mechanism locks solid or stranded conductors into place, and the adjustable housing lets you set the cable exit to 90° or 270° to suit tight patch panels, wall outlets or equipment ports.

Who is it for

Network installers, data centre technicians and industrial maintenance teams who need fast, reliable 10-Gigabit Ethernet terminations without carrying a full crimp kit. It is equally useful for office cabling upgrades and PoE device deployments.

Main features

• Tool-less field termination for Cat.6A shielded twisted pair (STP) cable
• Adjustable cable exit angle (90°/270°) for confined spaces
• Supports solid and stranded wires, AWG 22–26, cable OD 5.0–9.0 mm
• Zinc die-cast nickel-plated housing, gold-plated contacts (50µ")
• PoE, PoE+ and 4PPoE (IEEE 802.3af/at/bt) compatible
• Colour-coded T568A/T568B wiring, reusable up to 10 cycles

Specifications

• Connector type: RJ45 plug, 8P8C
• Performance: Cat.6A, 10 Gigabit Ethernet
• Shielding: STP
• Termination: field-terminable, tool-less IDC
• Wire compatibility: solid and stranded
• Wire gauge: AWG 22–26
• Max cable outer diameter: 5.0–9.0 mm
• Housing: zinc die-cast, nickel-plated
• Contact plating: gold, 50µ"
• PoE support: PoE, PoE+, 4PPoE
• Wiring scheme: T568A & T568B
• Reusability: up to 10 cycles
• Operating temperature: -10°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

Use a cable stripper to expose exactly the required conductor length, then follow the colour code printed on the IDC block. For PoE++ (4PPoE) links, verify that the cable is Cat.6A or higher and properly bonded to ground at the patch panel.
