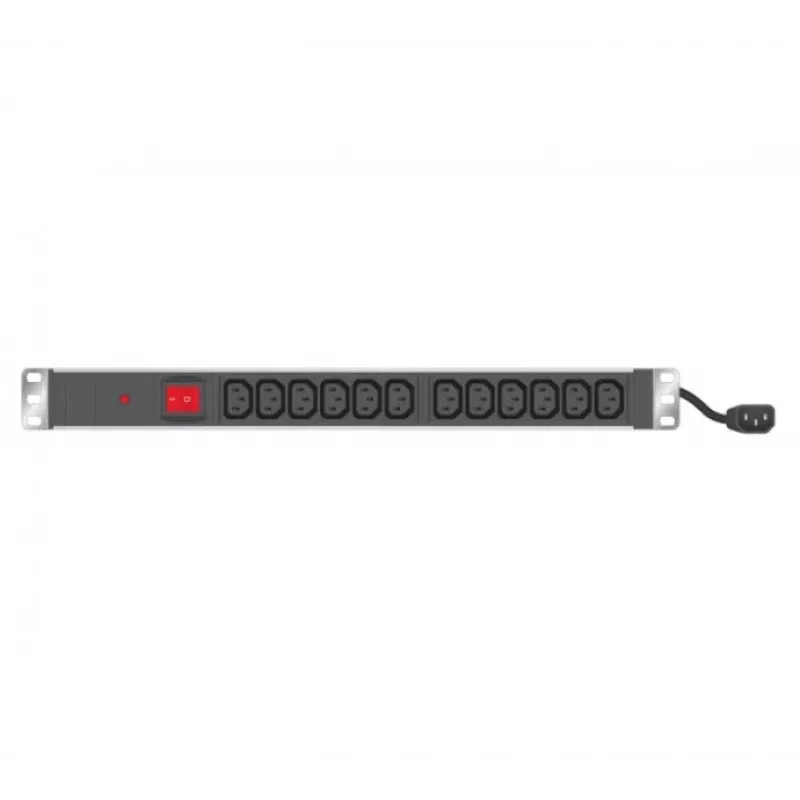

EXERTIS CONNECT PDU para rack 19" 1U, 12 salidas IEC C13, entrada schuko, cable de 2,5 m, aluminio, negro (808903)

This 19-inch rackmount power distribution unit packs 12 IEC C13 outlets into a slim 1U aluminium chassis, making it a cost-effective way to power multiple devices in server racks and network cabinets. The illuminated on/off switch gives you instant visual confirmation of power status, while the 2.5-metre Schuko input cable with 1.5 mm² conductors provides flexibility during installation.

Highlights

• 12 IEC C13 female outlets for connecting servers, switches, and other equipment
• Rated for 16 A and 230 V AC, delivering up to 3680 W of power
• Durable black aluminium housing with RAL 9005 finish
• Built-in illuminated on/off switch for easy control and status indication
• Includes 2.5 m input cable with Schuko plug and 3 x 1.5 mm² cross-section

In daily use

Mount this PDU horizontally in a standard 19-inch rack, taking up just 1U of space. The aluminium enclosure offers robust protection while keeping weight manageable. The 12 outlets are arranged to accommodate typical data centre power cords, and the illuminated switch allows you to cut power to all connected devices at once without unplugging the unit.

Full specifications

• Product type: Power Distribution Unit (PDU)
• Form factor: 19-inch rackmount, 1U
• Output sockets: 12 x IEC C13 female
• Input plug: Schuko (CEE 7/7) male
• Input cable length: 2.5 m
• Input cable cross-section: 3 x 1.5 mm²
• Maximum current: 16 A
• Maximum power: 3680 W
• Nominal voltage: 230 V AC
• Housing material: Aluminium
• Colour: Black (RAL 9005)
• Control features: Illuminated on/off switch
• Mounting orientation: Horizontal

Final note

A straightforward, reliable power distribution solution for rack environments where basic, high-density outlet distribution is needed without advanced monitoring or switching features.
