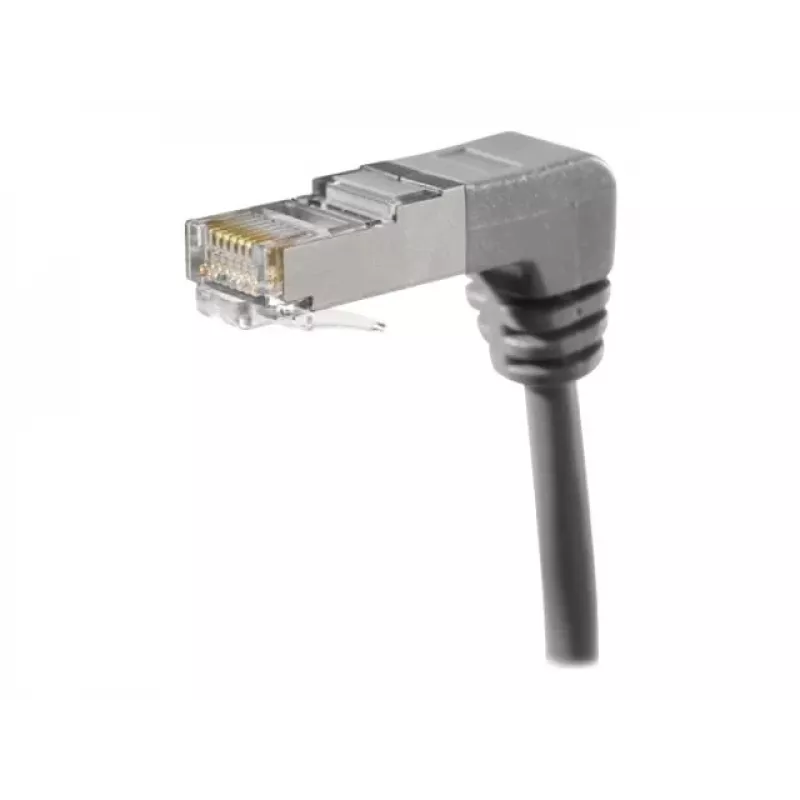

EXERTIS CONNECT S/FTP Cat.6A Cable de conexión en ángulo, gris, 3,0 m, ambos conectores hacia abajo 854290

This patch cable stands out with its dual downward-angled RJ45 connectors, which reduce strain and improve cable management in tight spaces behind patch panels or desks. It combines Cat.6A performance with S/FTP shielding for reliable 10 Gigabit Ethernet transmission.

Highlights

• Angled connectors on both ends, oriented downward for space-saving installations
• S/FTP shielding with individually foil-wrapped pairs and overall braid
• Supports 10GBASE-T up to 500 MHz bandwidth
• LSZH jacket for low smoke and halogen-free safety
• Snagless molded boot protects the locking tab

In daily use

With a length of 3 meters, this grey patch cable is ideal for connecting network devices in server rooms, offices, or home setups where space is limited. The downward-angled connectors allow the cable to run flush against the wall or floor, reducing clutter and preventing accidental disconnection. The stranded 26 AWG copper conductors provide flexibility while maintaining excellent signal integrity.

Full specifications

• Cable type: Patch cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 3.0 m
• Colour: Grey
• Connector type: RJ45 (8P8C)
• Connector orientation: Angled downwards on both sides (90-degree)
• Conductor material: Copper (Cu)
• Conductor gauge: 26 AWG (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Pin assignment: 1:1 (T568B standard)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Boot type: Molded, snagless
• Flame retardancy: IEC 60332-1
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +60°C

Final note

A professional-grade angled patch cable that combines performance, durability, and easy installation in one reliable solution.
