EXSYS Cable adaptador D-Tipo RJ45 hembra a macho, CAT.5e, 20 cm, negro EX-49159

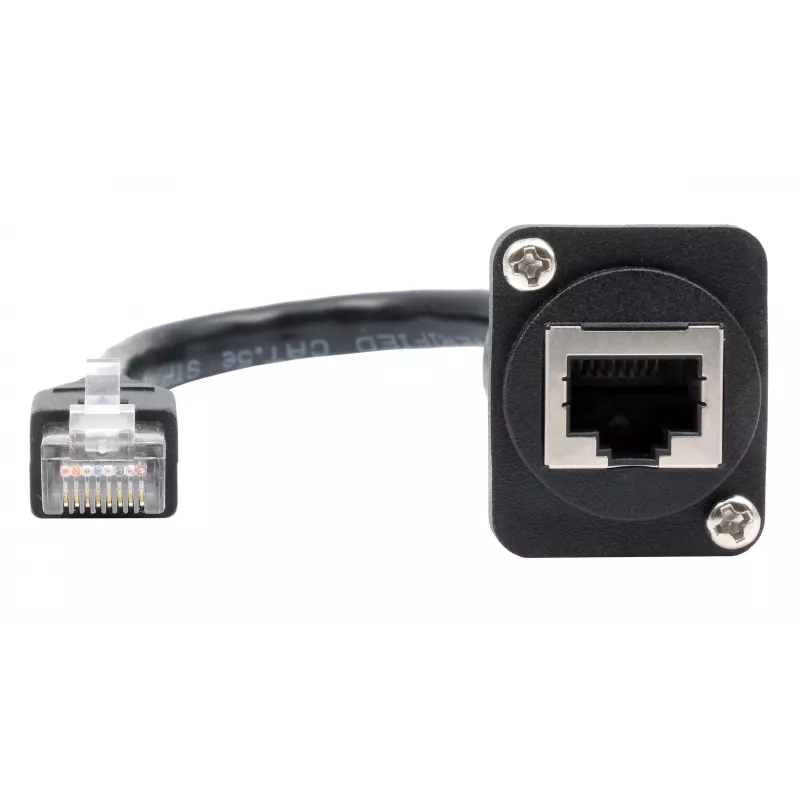

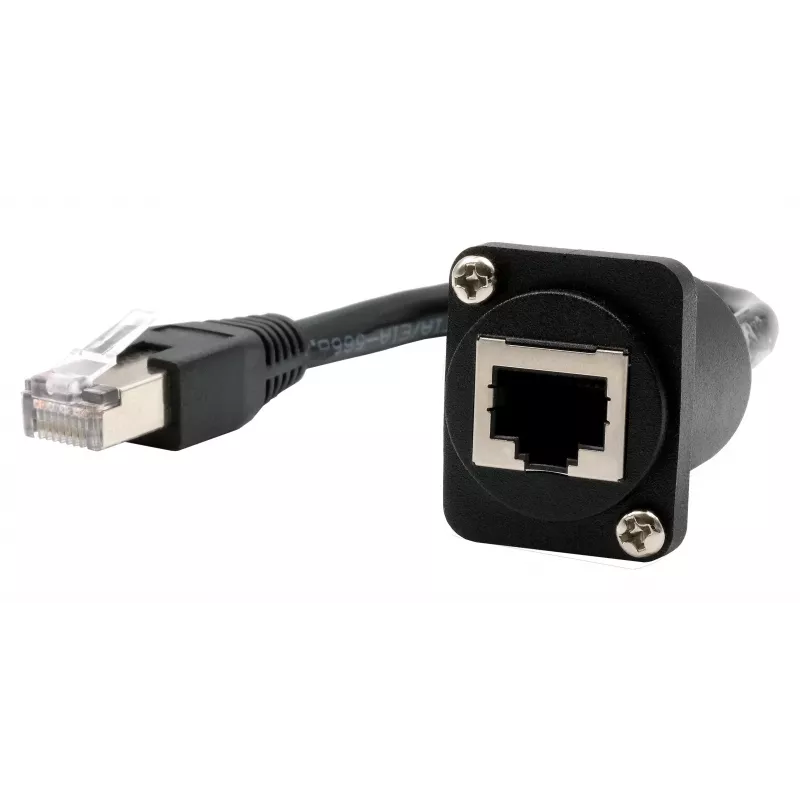

Panel-mount Ethernet connections often require a clean, reliable way to bring a network port to a faceplate or enclosure. This EXSYS adapter cable solves that by providing a D-Type panel-mount RJ45 female socket connected to a 20 cm CAT.5e cable terminated with an RJ45 male plug. It allows you to extend a network connection through a panel or wall plate without custom wiring.

Who is it for

Network installers, system integrators, and IT technicians who need a professional panel-mount Ethernet solution for patch panels, wall boxes, or equipment enclosures. It is suitable for Gigabit Ethernet networks where a short, reliable jumper is needed.

Main features

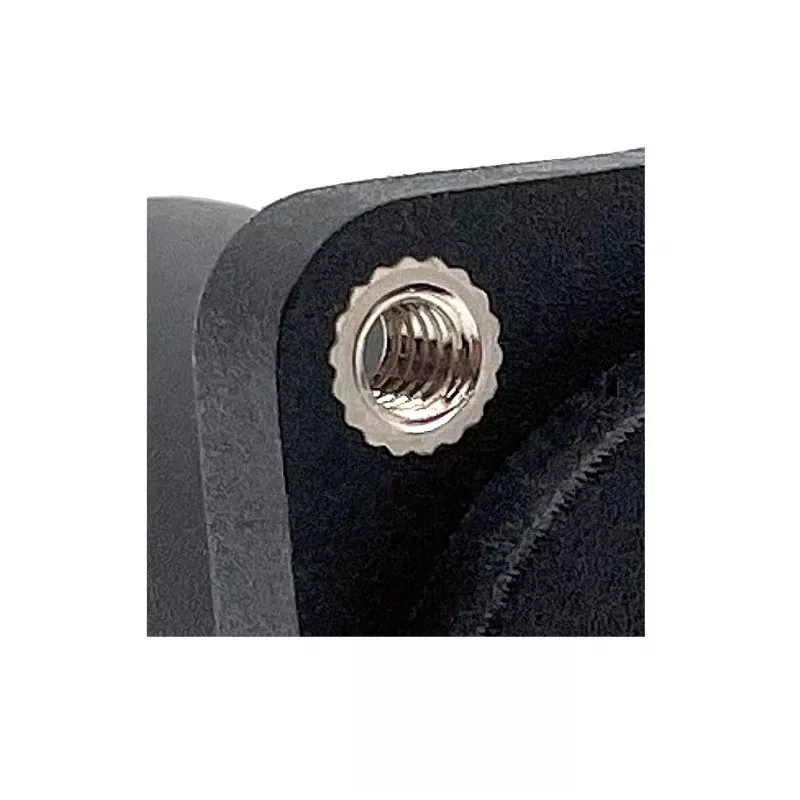

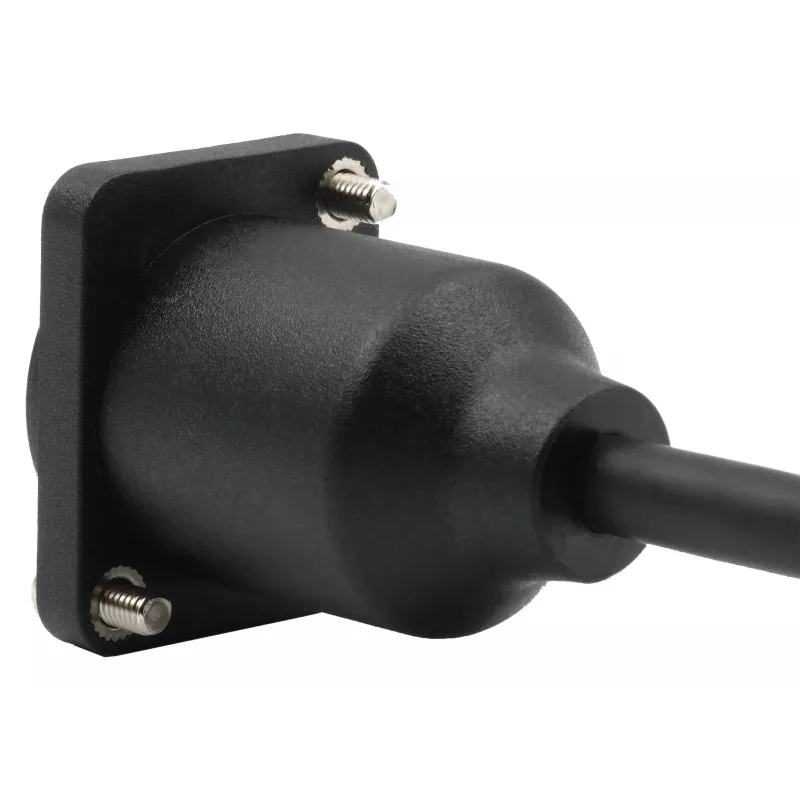

• D-Type panel-mount RJ45 female connector with two mounting holes
• 20 cm CAT.5e cable with RJ45 male plug
• Supports data rates up to 1000 Mbps (Gigabit Ethernet)
• Straight-through wiring scheme, 100 Ohm impedance
• Unshielded twisted pair (UTP) construction with copper conductors and PVC jacket
• Black colour for discreet integration

Specifications

• Connector 1: RJ45 female (D-Type panel mount)
• Connector 2: RJ45 male
• Cable standard: CAT.5e
• Cable length: 20 cm
• Data transfer rate: up to 1000 Mbps
• Shielding: UTP
• Conductor material: copper
• Jacket material: PVC
• Colour: black
• Wiring scheme: straight-through
• Impedance: 100 Ohm

Tips

Ensure the panel cutout matches the D-Type mounting dimensions before installation. The short cable length is ideal for internal patching; avoid excessive bending to maintain signal integrity.
