Rack de servidor independiente ROLINE Pro 42 U 19" 600x1000 negro

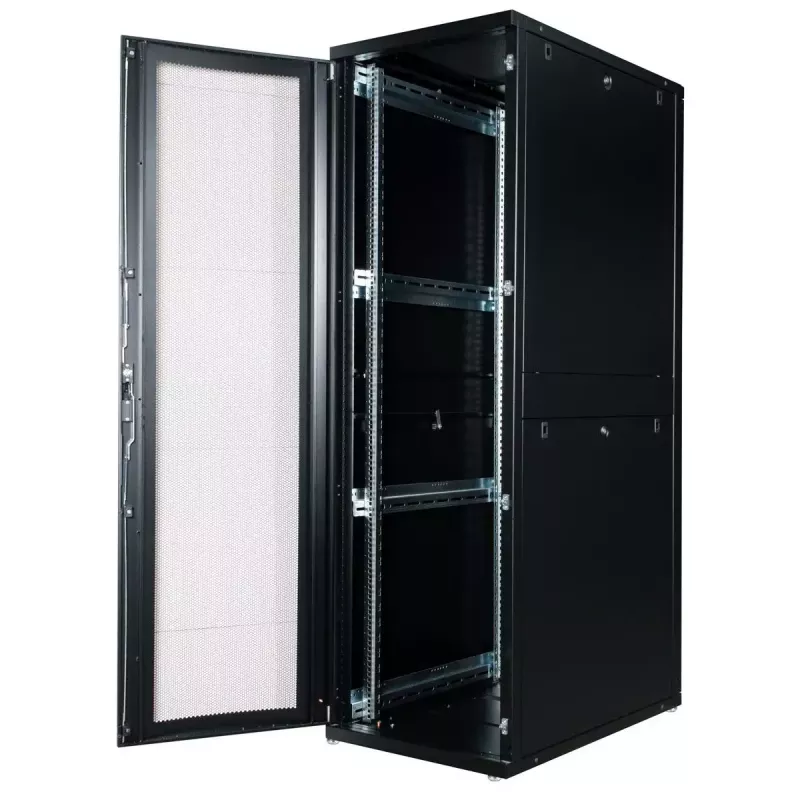

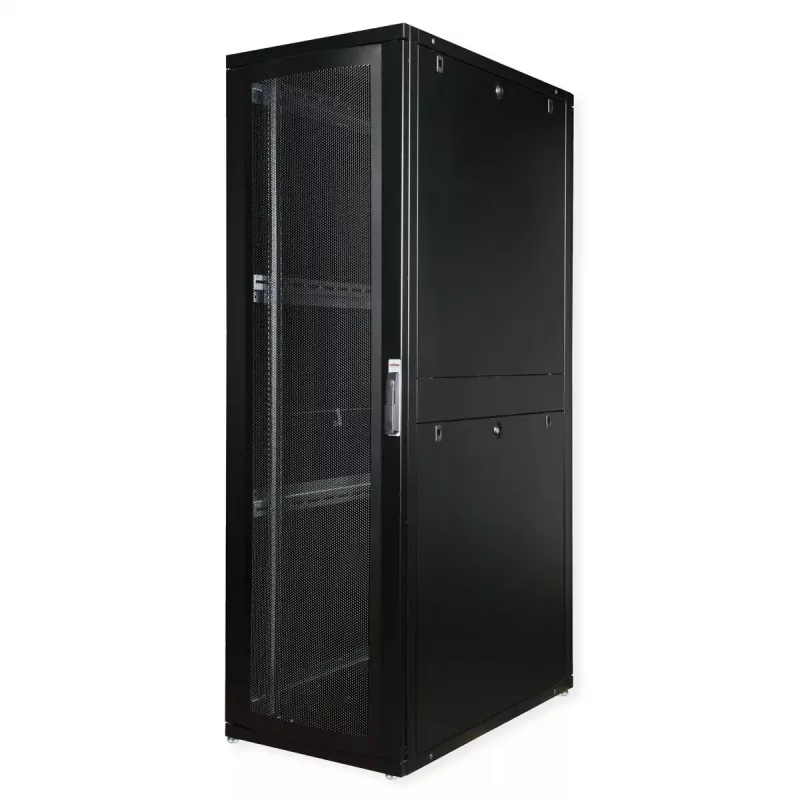

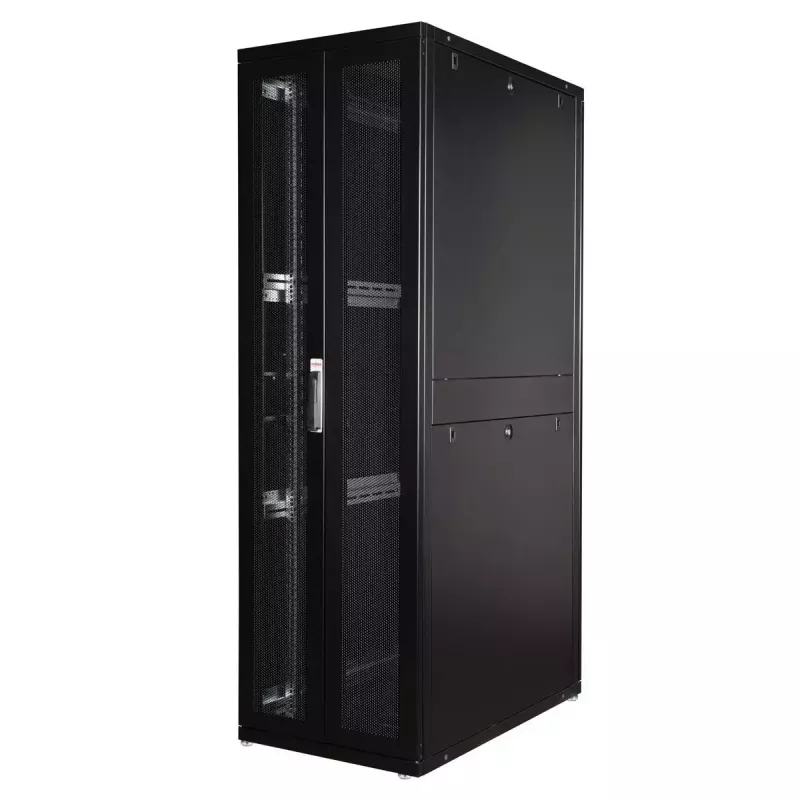

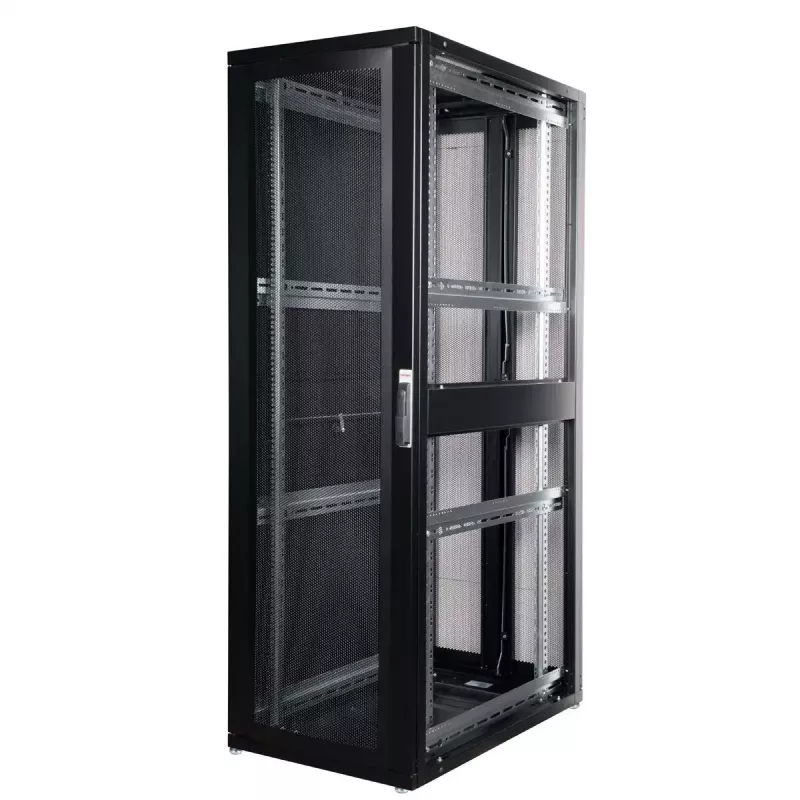

The ROLINE 19-inch server rack Pro 42 U 600x1000 in black is a freestanding enclosure designed for organized installation and flexible network cabling. It supports up to 42U of equipment and a maximum load capacity of 1000 kg. The cabinet features adjustable 19" profile rails, perforated doors and roof for improved airflow, multiple cable inlets with brush seals and foam-gasket options, modular removable side panels and a robust steel construction with powder-coated finish (RAL 9005).

Advantages

The enclosure offers flexible cable management with side roof and base inlets, including brush-type and slide-on foam-seal options, plus an additional brush inlet in the base chassis for wider cable routing possibilities. Perforated front and rear doors combined with a perforated roof enable better air circulation and fan module installation. Internally, two pairs of galvanised 19" rails with bi-directional unit markings and adjustable depth provide precise mounting and stability; depth braces connect the rails for added strength. The cabinet’s modular, lockable and removable side panels and replaceable hinges allow easy access and maintenance. Electrostatic powder-coating and up to 2.0 mm steel thickness ensure a durable finish and stable structure.

Suitable for

• Installation of servers, switches and rack-mounted network equipment
• Data centre and server room racks for medium to large IT deployments
• Structured cabling and network patching installations

Key specifications

• Rack size: 19-inch, 42U
• External dimensions (W x D): 600 x 1000 mm
• Maximum load capacity: 1000 kg
• Weight: 103 kg
• Protection class: IP20
• Material: steel, up to 2.0 mm thickness; galvanised 19" rails
• Finish: electrostatic powder coating, black (RAL 9005)
• Cable management: side inlets with brushes, slide-on foam seal, base brush inlet (from 800 mm width available on wider models)
• Doors: perforated single-leaf front door, double-leaf perforated rear door, swivel handle with profile half cylinder
• Additional features: perforated roof for fan module, adjustable feet, modular lockable removable side panels

How to use

Place the freestanding rack on a level surface and adjust the feet for stable positioning. Unscrew and remove the side panels or doors as needed to access the interior. Mount equipment to the galvanised 19" rails using standard rack screws, adjusting rail depth to fit non-standard device depths and securing with depth braces. Route cables through the brush and foam-sealed inlets to maintain tidiness and minimise dust ingress. Install fan modules in the perforated roof if active ventilation is required.

Recommendations

For optimal airflow and ease of maintenance, keep perforated front and rear doors unobstructed, use the provided brush inlets for structured cable entry, and ensure load distribution is balanced across the rack. Verify compatibility of deep or unusually shaped equipment with the adjustable rail depth before installation.
