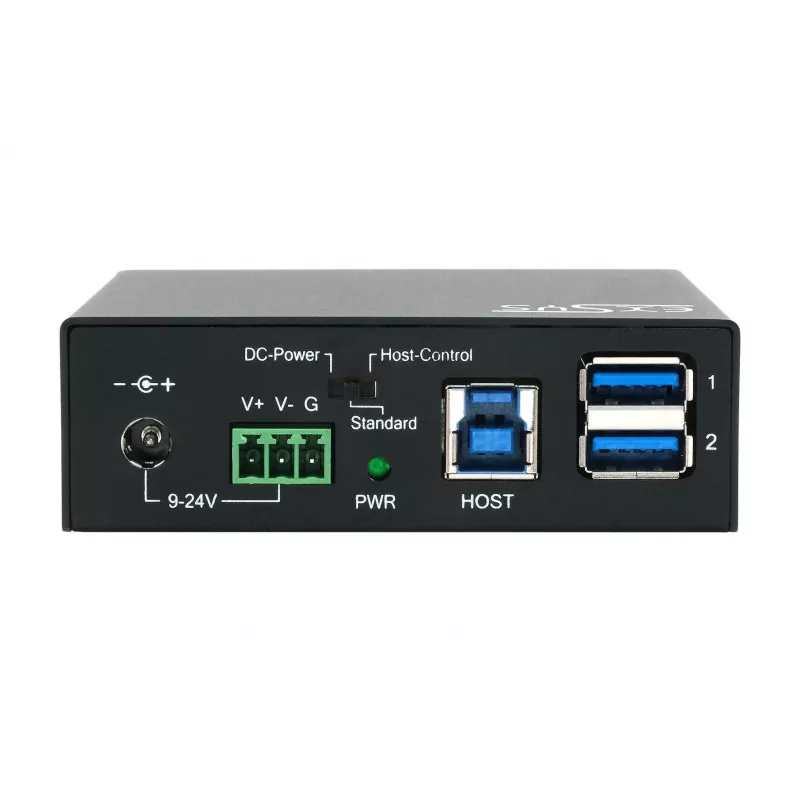

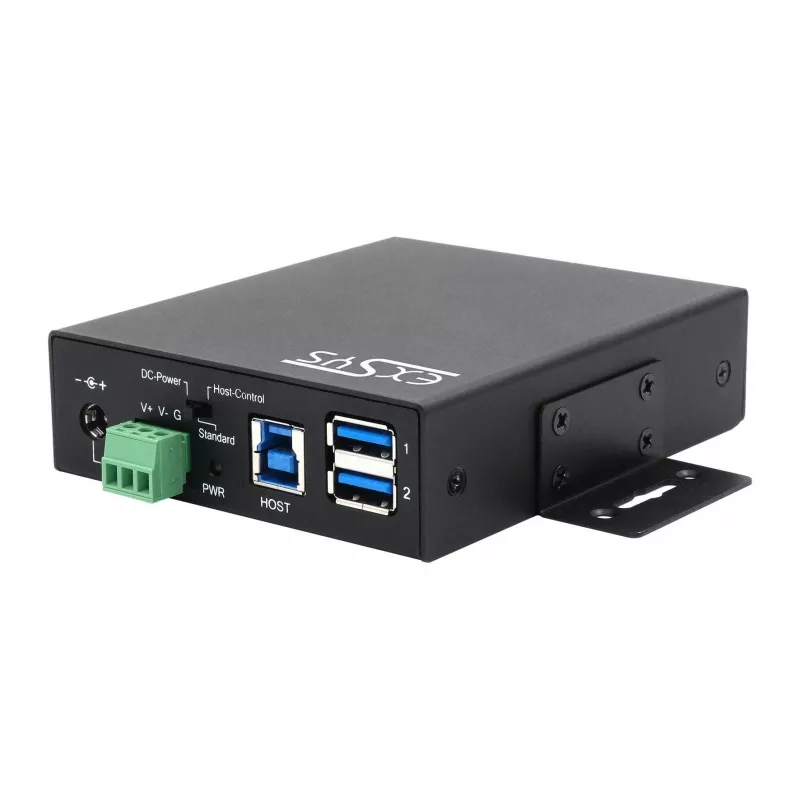

EXSYS EX-11241HMS hub metálico USB 3.2 Gen 1 de 10 puertos con protección ESD de 15KV

With 15KV ESD protection and a rugged metal chassis, the EXSYS EX-11241HMS delivers ten USB 3.2 Gen 1 ports from a single upstream connection, each capable of 5Gbps.

Overview

The EX-11241HMS is a 10-port industrial USB hub engineered for demanding environments. It expands one USB 3.2 Gen 1 Type-B upstream port into ten USB Type-A downstream ports, all supporting SuperSpeed USB 5Gbps data transfer. The all-metal housing provides durability and aids heat dissipation, while the included external 12V/3A power supply ensures stable operation even when all ports are loaded.

What stands out

• 15KV air and 8KV contact ESD protection safeguards connected devices from electrostatic discharge.
• Ten downstream USB Type-A ports with individual overcurrent protection and status LEDs.

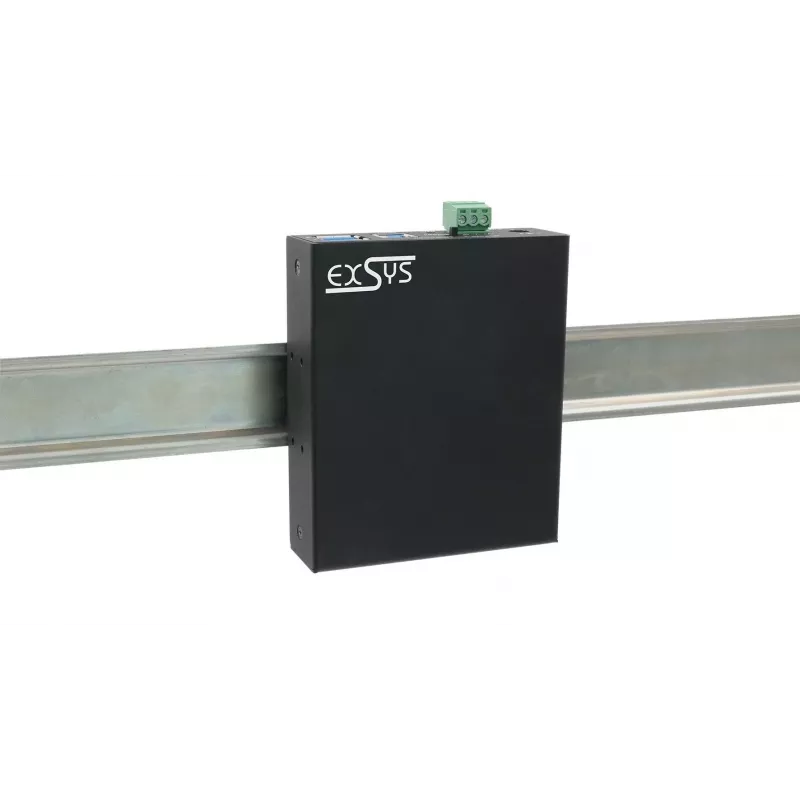

• Metal enclosure with wall-mount and DIN-rail mounting options for industrial installation.
• Backward compatible with USB 2.0 and USB 1.1 devices.
• Plug-and-play with no driver installation required on Windows, macOS, and Linux.

Technical details

• USB Standard: USB 3.2 Gen 1 (SuperSpeed USB 5Gbps)
• Upstream Port: 1 x USB Type-B
• Downstream Ports: 10 x USB Type-A
• Data Transfer Rate: Up to 5 Gbps
• ESD Protection: 15KV air, 8KV contact
• Housing Material: Metal
• Power Supply: External 12V/3A adapter (included)
• Chipset: Genesys Logic GL3523
• Operating Temperature: 0°C to 55°C
• Mounting Options: Wall-mountable, DIN-Rail mountable
• LED Indicators: Power LED, 10x port status LEDs
• Overcurrent Protection: Yes (per port)
• Plug & Play: Yes
• Hot-Swappable: Yes

Our verdict

The EXSYS EX-11241HMS is a robust, industrial-grade USB hub that combines high port density with serious ESD protection, making it a reliable choice for factory floors, kiosks, and other static-prone environments.
