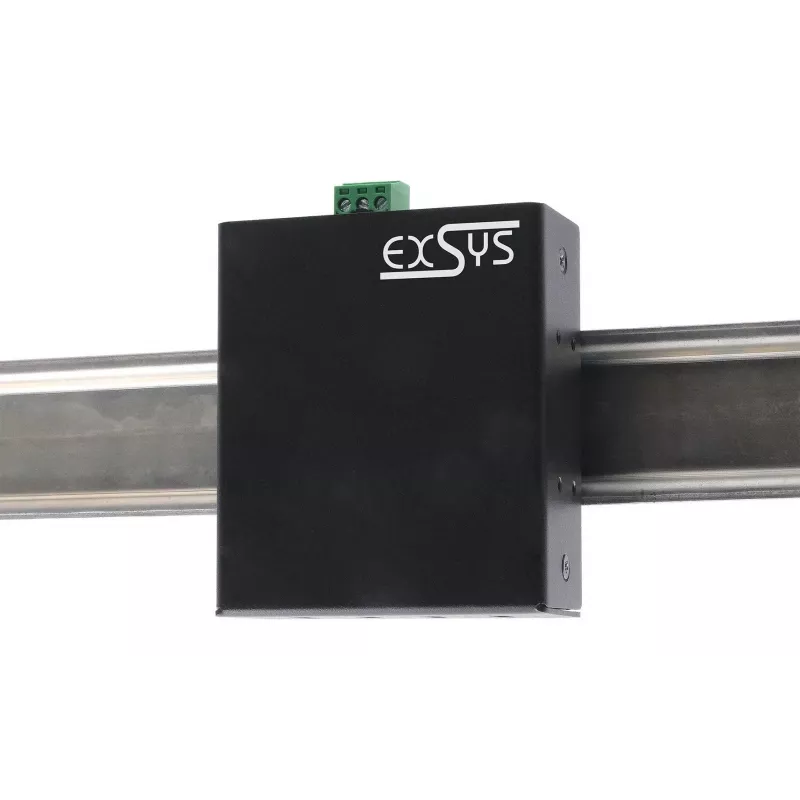

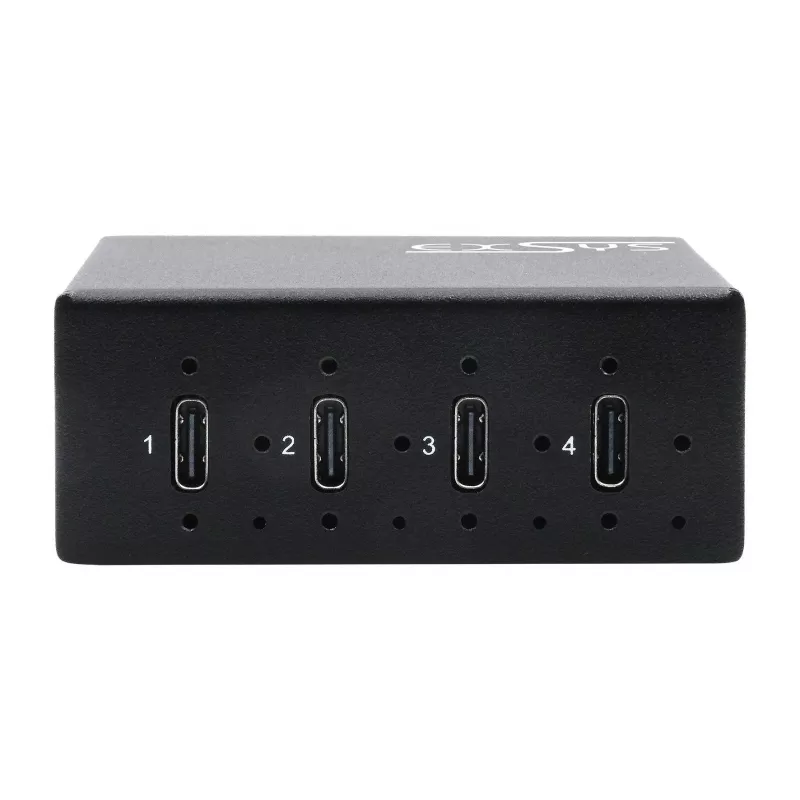

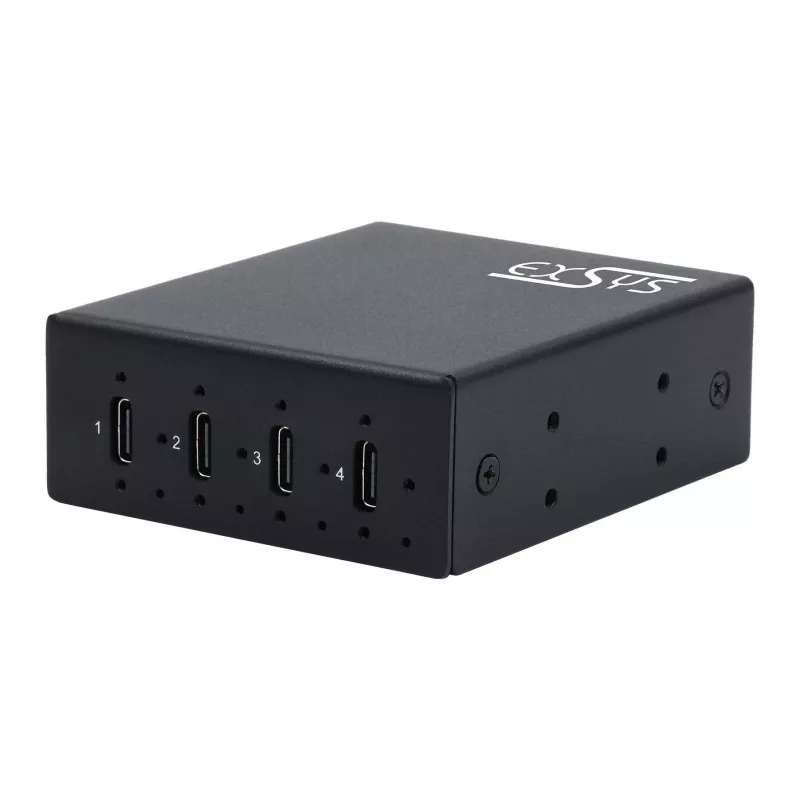

EXSYS EX-12274HMS Hub industrial metálico USB 3.2 Gen 2x1 de 4 puertos, 10Gbps, 15KV ESD, montaje en pared/carril DIN

In industrial and embedded environments, reliable high-speed USB expansion is critical, yet standard hubs often fail due to electrical noise and lack of secure mounting. The EXSYS EX-12274HMS solves this by providing four USB 3.2 Gen 2x1 ports in a rugged metal chassis designed for wall or DIN-rail installation.

Who is it for

System integrators, automation engineers, and IT professionals needing a durable, high-performance USB hub for factory floors, control cabinets, or kiosks where vibration and ESD are concerns.

Main features

• 4 downstream USB 3.2 Gen 2x1 Type-A ports with 10Gbps data transfer rate
• 1 upstream USB Type-B port
• 15KV air / 8KV contact ESD protection per port
• Metal housing for durability and heat dissipation
• Wall and DIN-rail mounting options
• Self-powered via external 9-24V DC input (power supply not included)
• Overcurrent protection per port
• Plug & Play, hot-swappable
• LED indicators for power and port status

Specifications

• USB Standard: USB 3.2 Gen 2x1 (10Gbps)
• Downstream Ports: 4 x USB Type-A
• Upstream Port: 1 x USB Type-B
• ESD Protection: 15KV air, 8KV contact
• Housing Material: Metal
• Mounting: Wall mount, DIN rail
• Power Input: 9-24V DC (external adapter required)
• Operating Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% RH non-condensing
• OS Compatibility: Windows, macOS, Linux

Tips

For optimal performance, use a certified external DC power supply within the specified voltage range. The metal housing may become warm during operation; ensure adequate ventilation when installed in enclosures.
