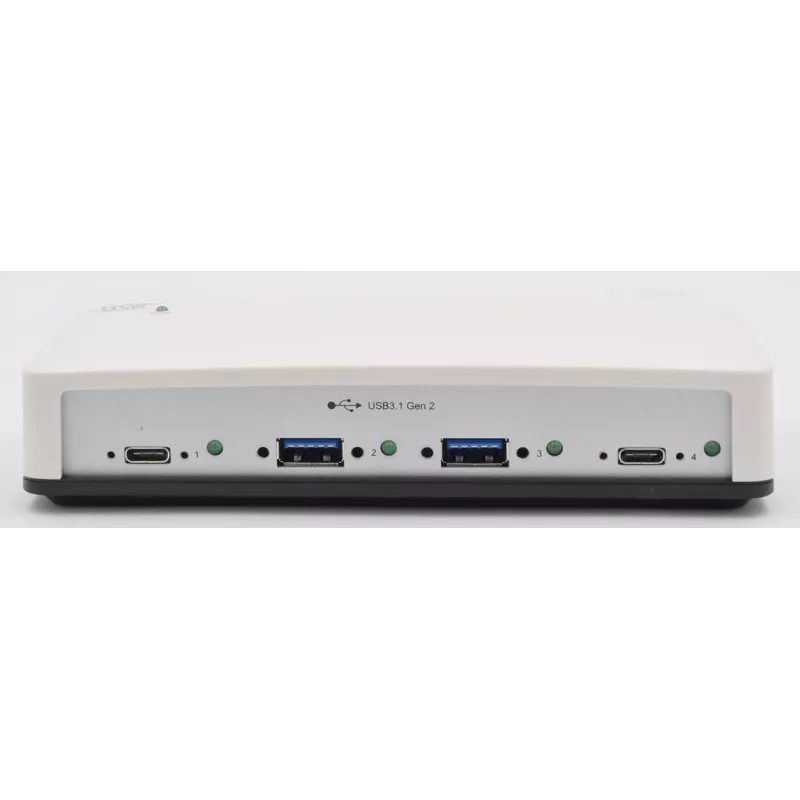

EXSYS EX-1250V hub USB 3.2 Gen 2 industrial de 4 puertos con montaje en carril DIN, pared y rack

In industrial automation, connecting multiple high-speed USB devices to a single host while maintaining a reliable link in harsh environments is a daily challenge. The EXSYS EX-1250V industrial USB 3.2 Gen 2 hub answers that need with four downstream ports—two Type-A and two Type-C—delivering up to 10 Gbps data transfer rates. Its rugged aluminum housing and wide operating temperature range of -40°C to 85°C make it suitable for factory floors, control cabinets, and mobile installations. The hub supports flexible mounting via DIN-rail, wall, or optional rack brackets, ensuring seamless integration into existing infrastructure.

Key specifications

• USB Standard: USB 3.2 Gen 2 (10 Gbps)
• Upstream Port: 1 x USB 3.2 Gen 2 Type-B
• Downstream Ports: 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C
• Power Input: DC 9-24V via terminal block
• Power Output per Port: Up to 1.5A (BC 1.2)
• Chipset: VIA VL822-Q7
• Housing Material: Aluminum
• ESD Protection: 15kV Air, 8kV Contact
• Operating Temperature: -40°C to 85°C
• OS Compatibility: Windows, macOS, Linux
• LED Indicators: Power, Port Status
• Plug & Play, Hot-Swap Support, Over-Current Protection
• Certifications: CE, FCC, RoHS

Why choose it

This hub combines high-speed USB 3.2 Gen 2 performance with industrial-grade durability. The aluminum housing and wide temperature tolerance ensure reliable operation in demanding environments, while the versatile mounting options allow installation in DIN-rail enclosures, on walls, or in 19-inch racks. The terminal block power input accepts a wide voltage range, making it compatible with various industrial power systems. Each downstream port provides up to 1.5A for charging or powering connected devices, and the built-in ESD protection safeguards against electrostatic discharge.

Ideal use cases

• Industrial automation and control systems
• Machine vision and inspection setups
• Digital signage and kiosk applications
• Laboratory and test equipment connectivity
• Vehicle-mounted computing systems

Good to know

The hub is plug-and-play with no driver installation required on Windows, macOS, or Linux. It supports hot-swapping, allowing you to connect or disconnect devices without rebooting the system. The LED indicators provide clear status for power and port activity. For rack mounting, optional brackets are available separately. The hub's compact design and multiple mounting options make it a versatile choice for space-constrained industrial environments.
