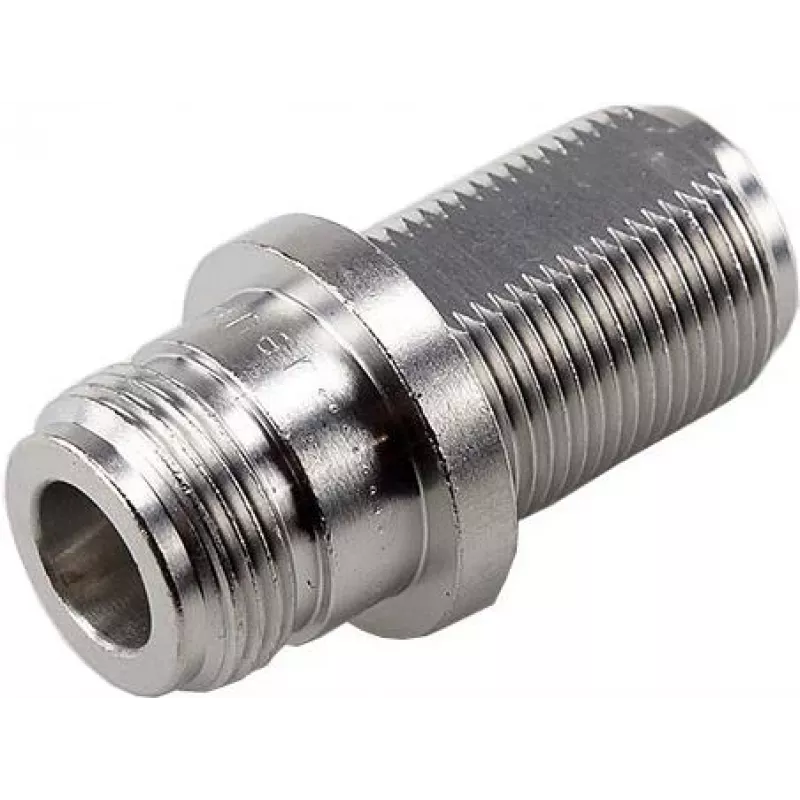

Telegärtner adaptador de panel tipo N hembra-hembra 50 ohmios IP68 MIL-STD Z10 con brida J01024A0006

Field technicians and network engineers rely on this Telegärtner N bulkhead adapter to join two N-type female connectors through a panel or enclosure wall. The Z10 flange mount fits a standard 25.4 x 25.4 mm cutout, making it suitable for industrial cabinets, outdoor enclosures, and test setups that require a robust RF pass-through.

Key specifications

• Connector series: N
• Connector type: Bulkhead adapter
• Connector gender: Jack (female) to Jack (female)
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• VSWR: max 1.25 at 10 GHz
• Protection class: IP68 (mated)
• Mounting type: Bulkhead, Z10 flange
• Flange dimensions: 25.4 x 25.4 mm
• Operating temperature: -65 °C to +165 °C
• Body material: Brass, nickel plated
• Center contact material: Brass, gold plated
• Insulator material: PTFE
• Dielectric withstanding voltage: 2.5 kVeff
• Insulation resistance: ≥ 5 GΩ
• Mating cycles: ≥ 500
• Standard compliance: MIL-STD-348A/304, IEC 61169-16

Why choose it

The adapter’s IP68 rating ensures reliable signal integrity even when mated in dusty or temporarily submerged environments. Gold-plated center contacts and a PTFE insulator provide low loss and stable performance across the full frequency range.

Ideal use cases

• RF test benches and laboratory setups
• Outdoor antenna feed-throughs
• Industrial machinery with sealed enclosures
• Military and aerospace communication systems

Good to know

The bulkhead design allows the adapter to be securely fastened from one side, simplifying installation in tight spaces. It is compatible with all standard N-type plugs per MIL-STD-348.
