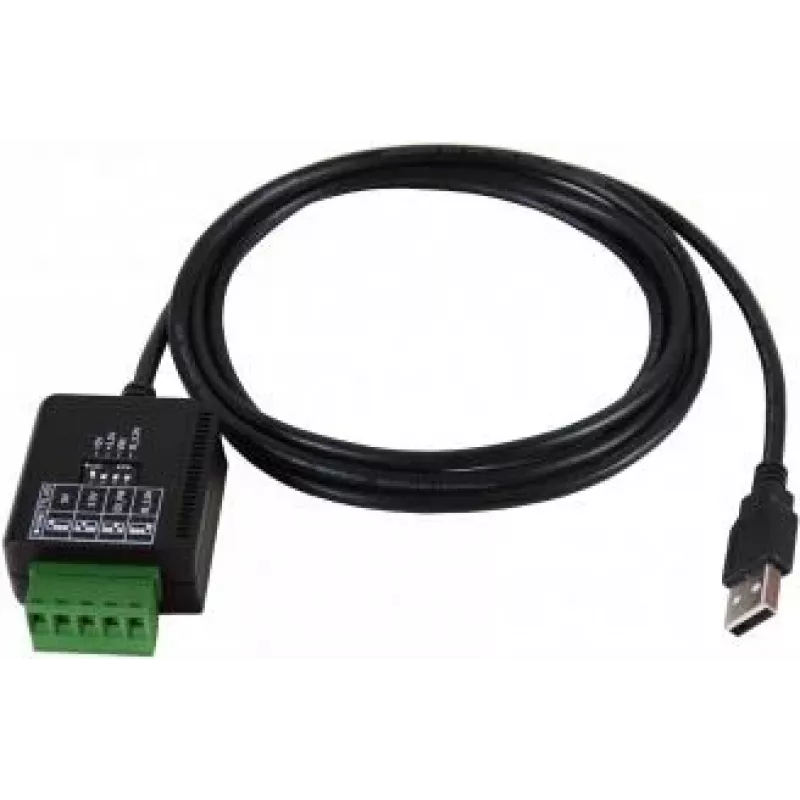

EXSYS EX-1310IS-TTL Adaptador serie USB 2.0 a RS-232 TTL/CMOS con protección ESD de 15KV y aislamiento óptico de 2,5KV (chipset FTDI)

This USB to serial adapter stands out by combining TTL/CMOS signal levels with robust 15KV ESD protection and 2.5KV optical isolation, making it suitable for industrial and embedded applications where signal integrity and electrical isolation are critical. The FTDI chipset ensures broad compatibility and reliable performance across Windows, macOS, and Linux.

Highlights

• USB 2.0 Type-A male to DB9 male RS-232 serial adapter
• TTL/CMOS signal levels for direct connection to microcontrollers and embedded systems
• 15KV ESD protection (Human Body Model) safeguards against electrostatic discharge
• 2.5KV optical isolation prevents ground loops and protects connected equipment
• FTDI chipset for stable drivers and wide OS support
• Supports baud rates up to 921.6 Kbps

In daily use

The adapter is USB bus powered, so no external power supply is needed. It supports data bits 5-8, stop bits 1/1.5/2, and parity none/even/odd/mark/space, with flow control options including RTS/CTS, DTR/DSR, and XON/XOFF. This flexibility allows configuration for a wide range of serial devices.

Full specifications

• Host Interface: USB 2.0 Type-A Male
• Serial Interface: RS-232, DB9 Male
• Signal Levels: TTL/CMOS
• Chipset: FTDI
• Max Baud Rate: 921.6 Kbps
• ESD Protection: 15 KV (Human Body Model)
• Optical Isolation: 2.5 KV
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Mark, Space
• Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
• Power Source: USB Bus Powered
• Operating System Compatibility: Windows, macOS, Linux

Final note

Ideal for industrial automation, POS systems, and embedded development where isolation and protection are required.
