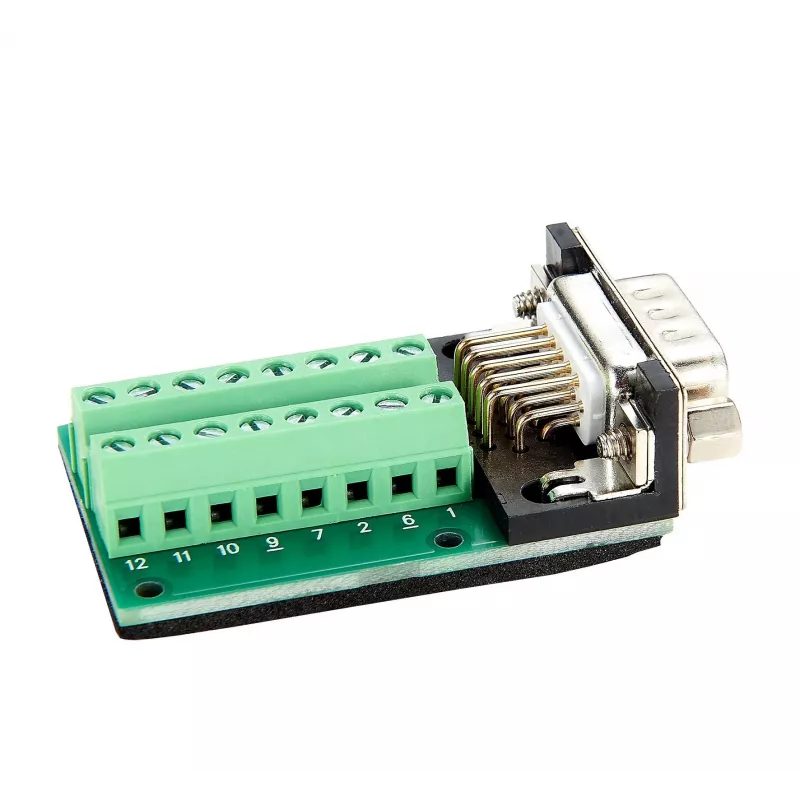

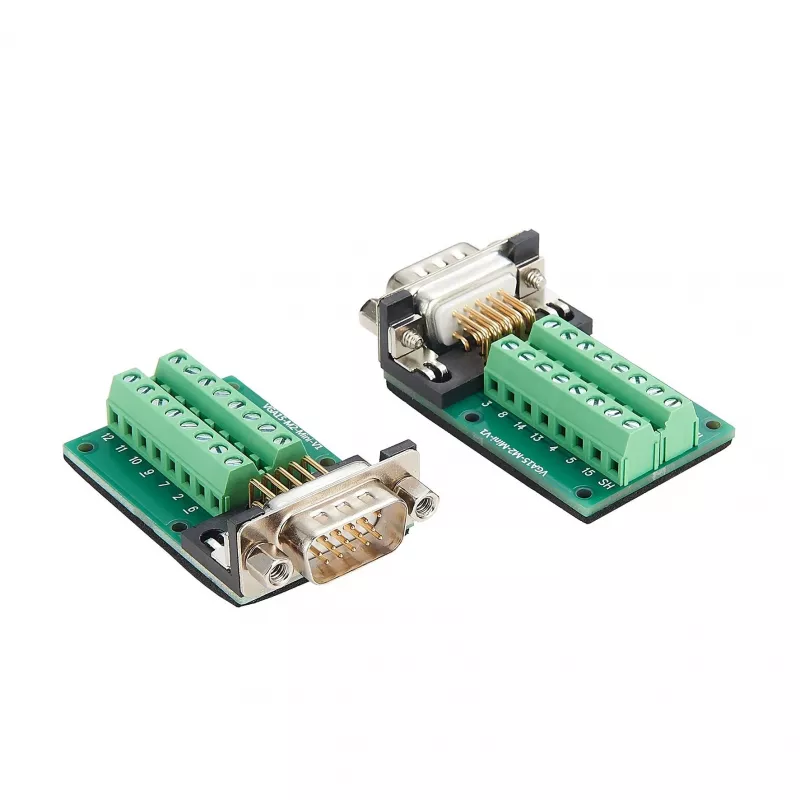

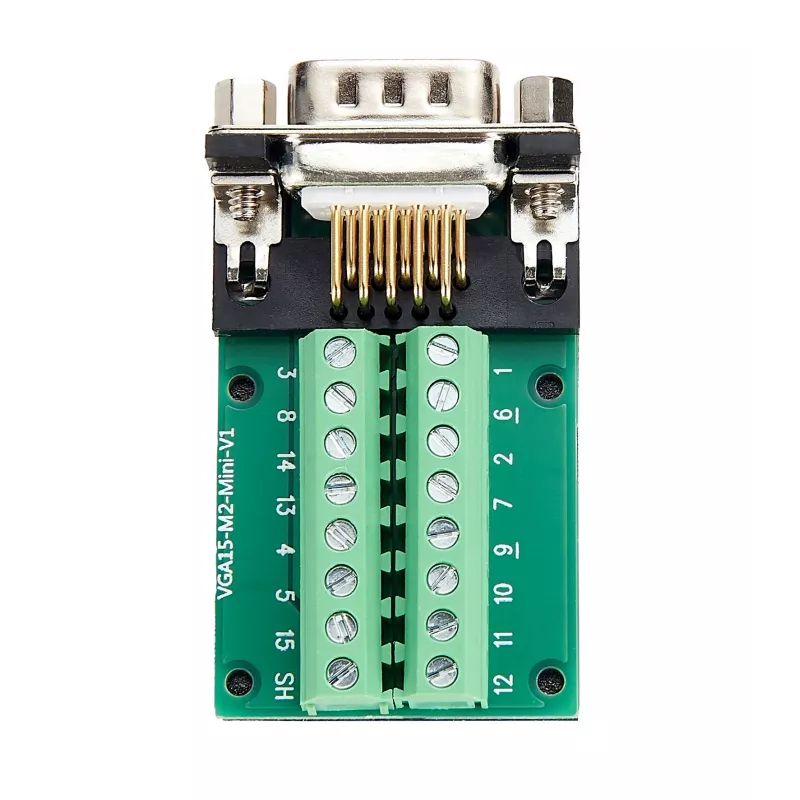

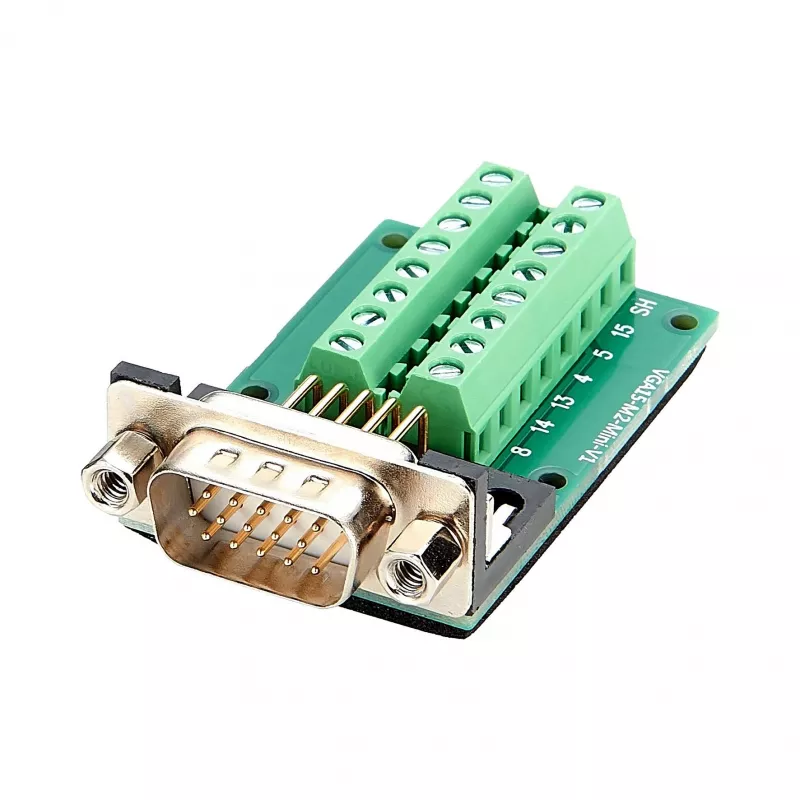

EXSYS EX-49022 Adaptador de conector macho VGA a bloque de terminales de 16 pines

For technicians and engineers working on custom VGA wiring, industrial control panels, or prototyping setups, the EXSYS EX-49022 adapter provides a direct way to connect a standard 15-pin VGA male connector to individual screw terminals. This breakout adapter is ideal for creating custom VGA cables, integrating analog RGBHV signals into custom hardware, or troubleshooting display connections.

Key specifications

• Connector 1: 15-pin VGA male (HD-15 / D-Sub high density)
• Connector 2: 16-pin screw terminal block
• Wiring method: screw terminals
• Housing material: plastic
• Colour: black
• Signal compatibility: analog RGBHV (Red, Green, Blue, Horizontal Sync, Vertical Sync)
• Data compatibility: DDC (Display Data Channel)
• Mounting type: free-hanging

Why choose it

This adapter eliminates the need for soldering when breaking out VGA signals. The screw terminals allow for quick, secure connections to individual wires, making it suitable for prototyping, custom cable assembly, and field repairs. The compact, free-hanging design can be used in a variety of installations.

Ideal use cases

• Custom VGA cable fabrication
• Industrial control and automation signal integration
• Prototyping and testing of analog video signals
• Repairing or modifying existing VGA connections

Good to know

The adapter supports analog RGBHV signals as well as DDC for display identification. It is a passive device with no active electronics.
