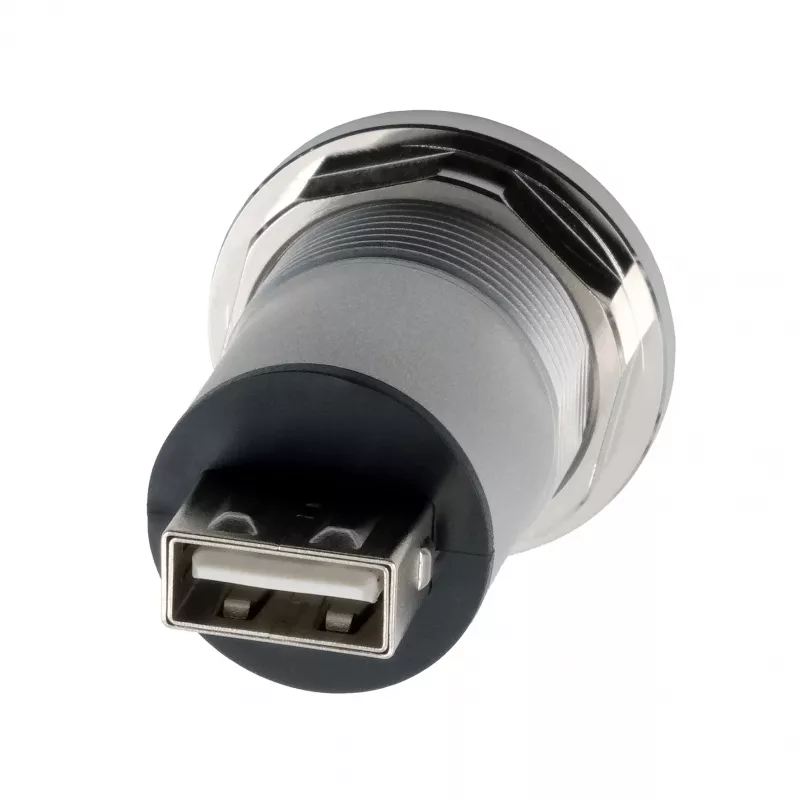

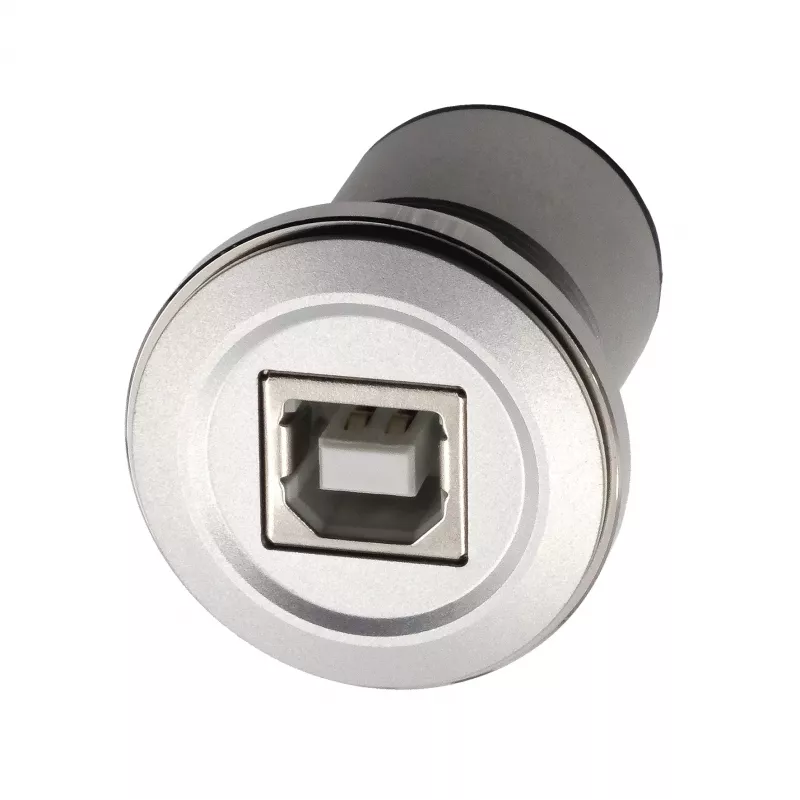

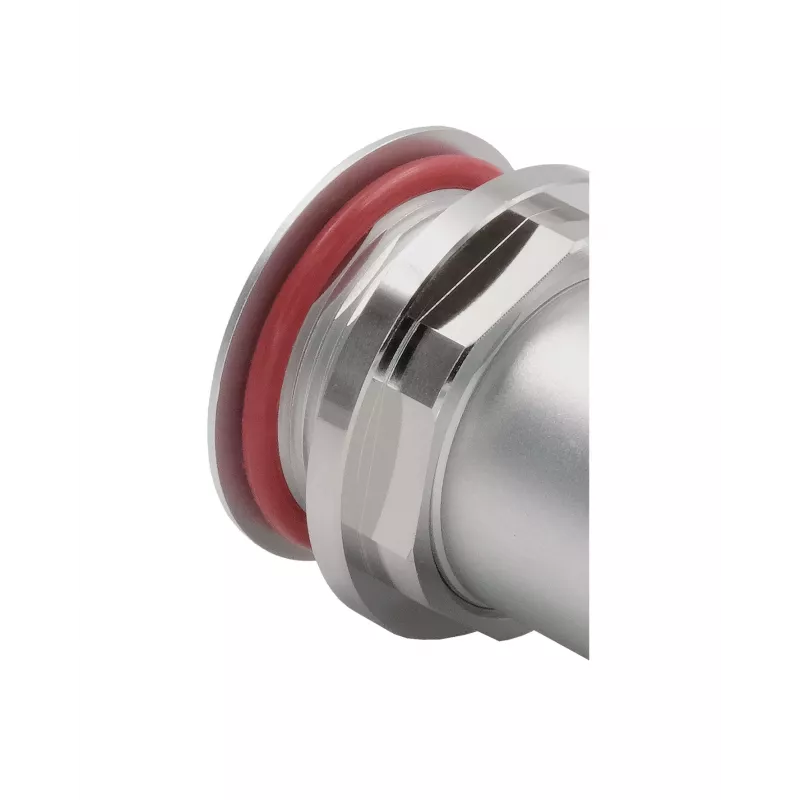

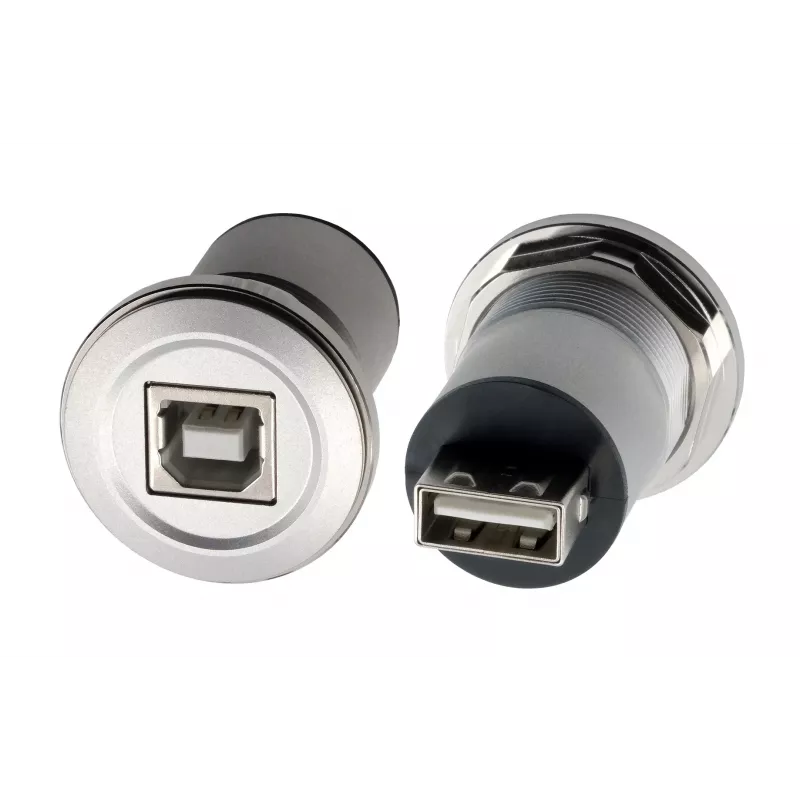

EXSYS EX-49193 Adaptador USB 2.0 de montaje en panel metálico USB-B conector hembra a USB-A conector hembra

Transfer data at up to 480 Mbps through a rugged metal panel mount adapter built for industrial and custom enclosure use.

Overview

The EXSYS EX-49193 is a panel mount adapter that converts a USB Type-B female port to a USB Type-A female port, enabling secure, through-panel USB 2.0 connectivity. Its all-metal housing provides shielding and durability, making it suitable for industrial applications, rack mounts, and custom enclosures.

What stands out

• USB 2.0 high-speed data transfer up to 480 Mbps
• Backward compatible with USB 1.1 devices
• Metal housing for shielding and ruggedness
• Screw-in panel mounting with 25 x 25 mm cutout
• Plug and play, no drivers required

Technical details

• Connector 1: USB Type-B female
• Connector 2: USB Type-A female
• Data transfer rate: 480 Mbps
• Housing material: Metal
• Mounting type: Screw-in panel mount
• Panel cutout dimensions: 25 x 25 mm
• Mounting hole distance: 30 mm (center-to-center)
• Colour: Silver

Our verdict

A solid, no-nonsense panel mount USB adapter for professionals who need reliable connectivity in fixed installations.
