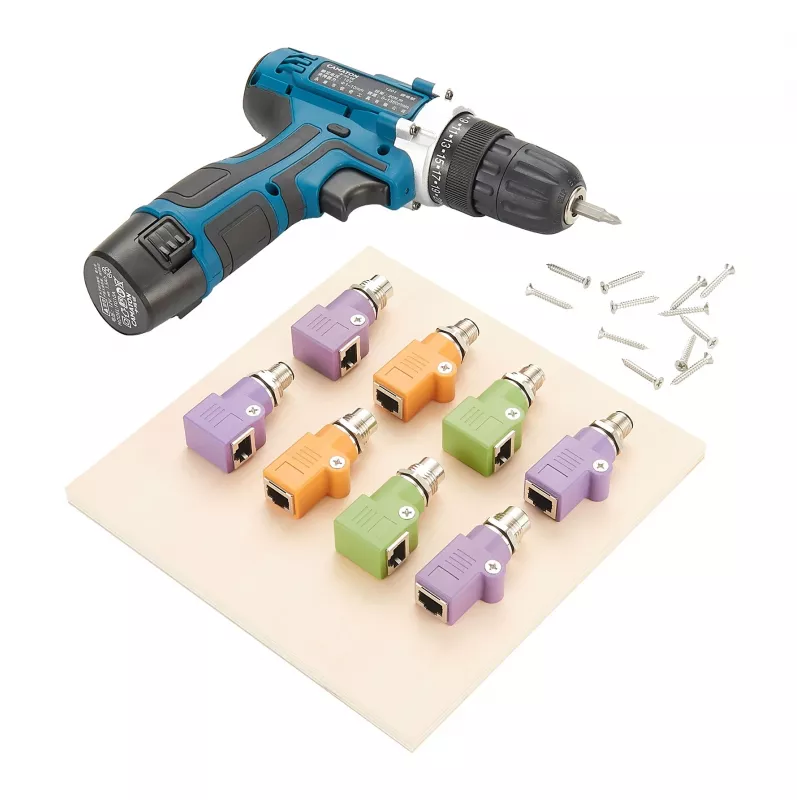

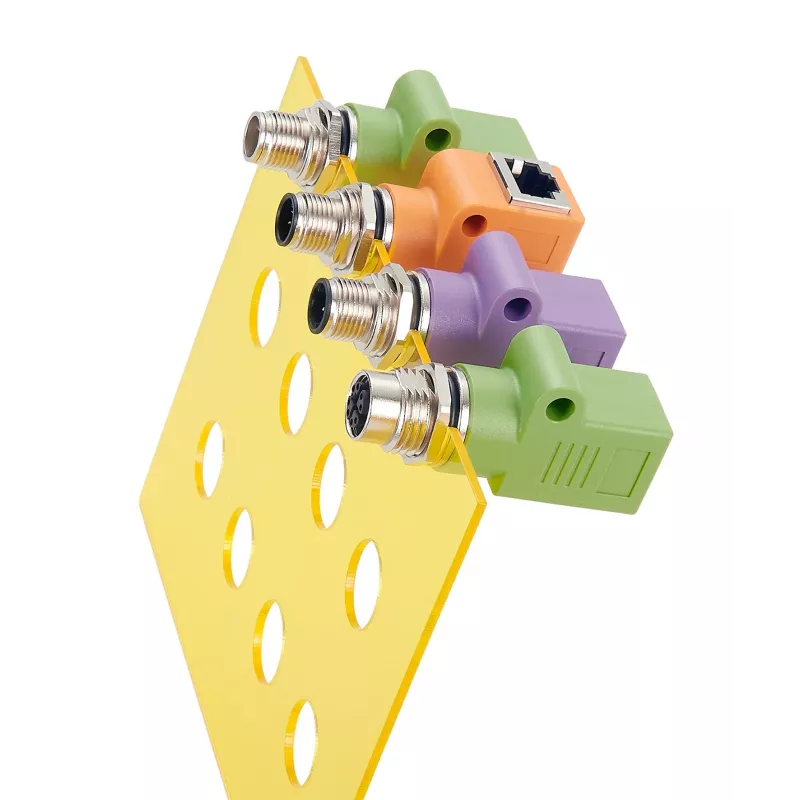

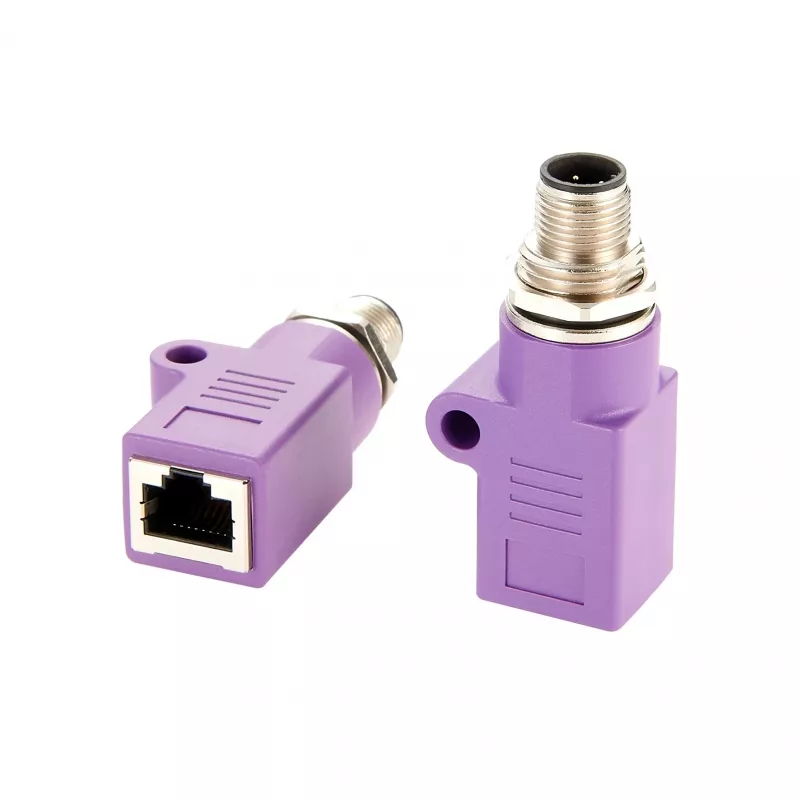

EXSYS EX-49520 Adaptador Ethernet industrial blindado M12 D-Code 4-Pin conector macho a conector hembra RJ45

Industrial Ethernet often requires connecting M12 D-coded field devices to standard RJ45 infrastructure, but mismatched connectors can halt a project. The EXSYS EX-49520 adapter bridges this gap by converting a 4-pin M12 D-code male connector to an RJ45 female port, enabling reliable Fast Ethernet links in harsh environments.

Who is it for

Automation engineers, machine builders, and system integrators who need to connect sensors, actuators, or industrial cameras with M12 D-code interfaces to standard Ethernet switches or cables.

Main features

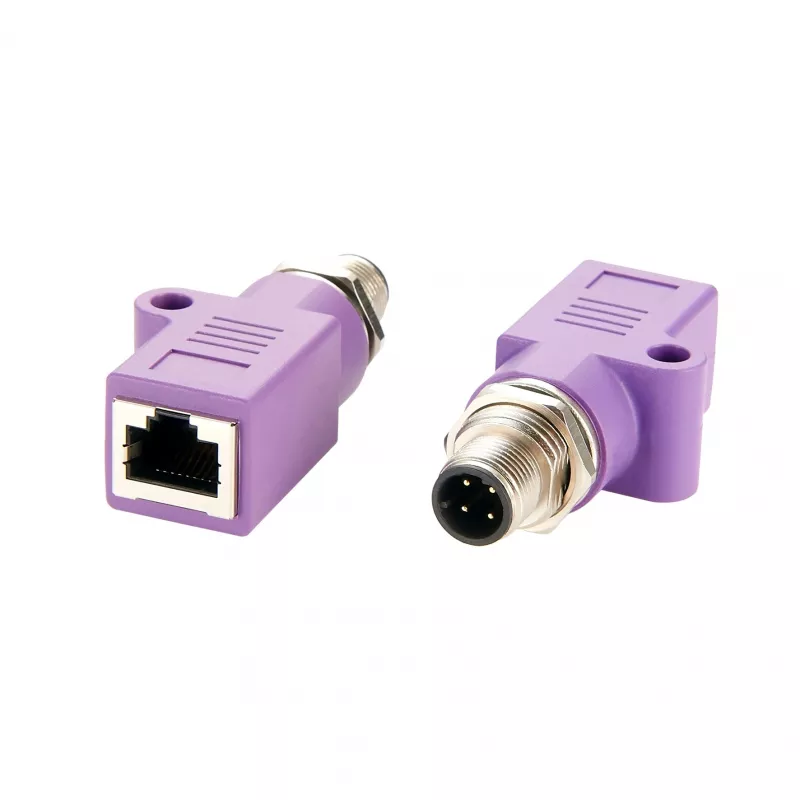

• M12 D-code 4-pin male to RJ45 female inline adapter
• Supports Fast Ethernet (10/100 Mbps)
• Shielded metal housing for EMI protection
• IP67 rated for dust and water resistance
• Gold-plated contacts for reliable signal integrity
• Operating temperature range: -20°C to +85°C

Tips

Pair with a shielded Cat5e or better cable to maintain signal integrity. For outdoor or washdown areas, ensure mating connectors are also IP67 rated to preserve the seal.
