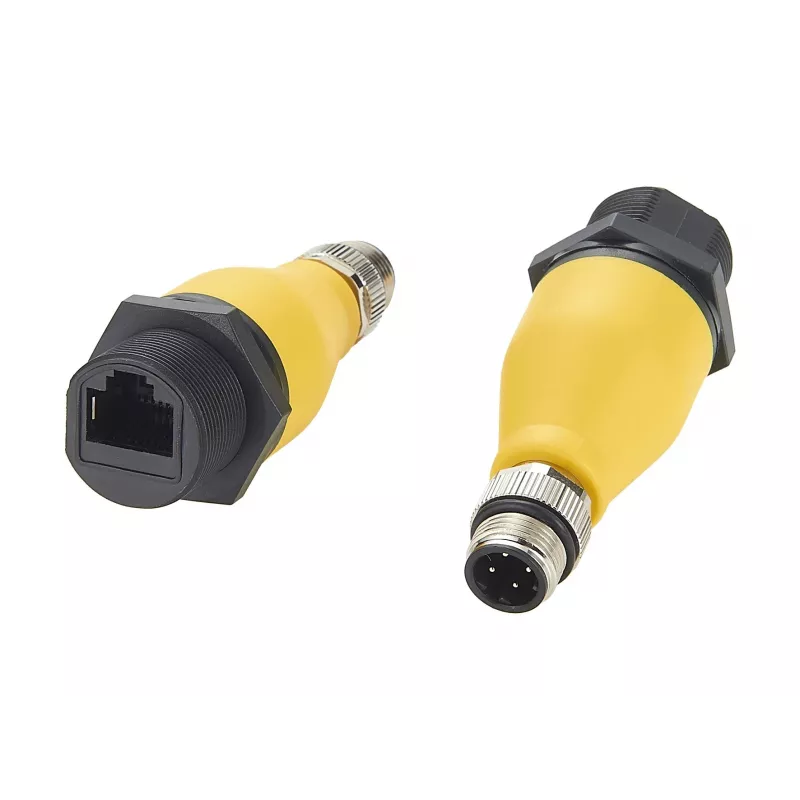

EXSYS EX-49524 Adaptador industrial de conector macho M12 D-Code de 4 pines a conector hembra RJ45, IP67, Fast Ethernet

Connect industrial Ethernet devices with M12 D-coded interfaces to standard RJ45 networks using this rugged inline adapter from EXSYS. Ideal for factory automation, robotics, and outdoor installations where vibration, dust, and moisture are present.

Key specifications

• Connector 1: M12 D-code, male, 4-pin
• Connector 2: RJ45, female
• IP67 rated for dust and water protection
• Supports Fast Ethernet (10/100 Mbps)
• Housing material: nickel-plated brass
• Operating temperature: -40°C to +85°C
• Voltage rating: 60V, current rating: 4A

Why choose it

The metal housing and IP67 sealing ensure reliable connections in harsh environments, while the D-coded wiring supports 2-pair Fast Ethernet for industrial protocols.

Ideal use cases

• Connecting sensors and actuators with M12 ports to Ethernet networks
• Industrial machinery and automation systems
• Outdoor or washdown areas requiring sealed connections

Good to know

The adapter is inline and does not require a panel cutout. It is compatible with standard RJ45 patch cables and M12 D-coded connectors.
