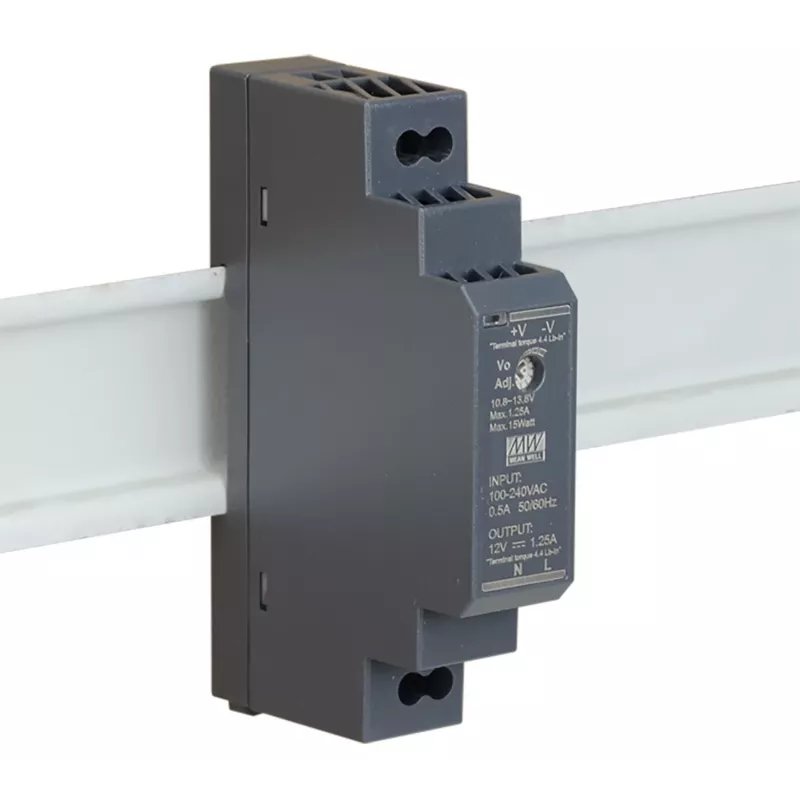

EXSYS EX-6970 Fuente de alimentación para carril DIN 15W 12V DC 1,25A

Industrial control panels and building automation systems often need a compact, reliable DC source mounted directly on the DIN rail. The EXSYS EX-6970 delivers 15 watts at 12 V DC from a wide AC input range, with screw terminals for secure wiring and a plastic housing that keeps weight low while protecting the electronics.

Key specifications

• Output: 12 V DC, 1.25 A, 15 W
• Input: 85–264 V AC / 120–370 V DC, 47–63 Hz
• Efficiency: >80%
• Ripple & noise: <120 mVp-p
• Isolation voltage: 3000 V AC (input to output)
• No-load power consumption: <0.5 W
• Operating temperature: -20°C to +60°C
• Storage temperature: -40°C to +85°C
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Connection: screw terminals
• Cooling: free air convection
• Housing material: plastic

Why choose it

The EX-6970 accepts both AC and DC input, making it flexible for machine builders and panel shops. Overload, overvoltage, and short-circuit protection are built in, and the wide temperature range suits demanding environments.

Ideal use cases

• Powering sensors, relays, and controllers in industrial cabinets
• Building automation and HVAC control panels
• Retrofit projects where DIN rail space is limited

Good to know

The unit is convection cooled, so no fan is needed. It is designed for DIN rail mounting and uses screw terminals for reliable field wiring.
