Exsys hub USB 3.2 Gen 1 con protección ESD de 15kV, montaje en carril DIN, 6 puertos (EX-11246HMS)

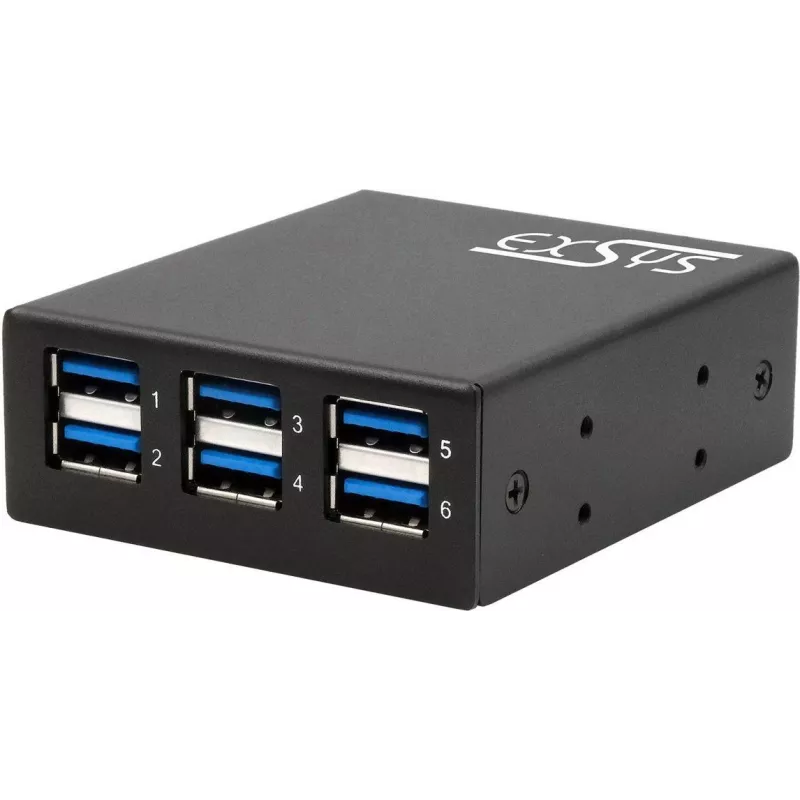

The Exsys EX-11246HMS is a robust industrial USB 3.2 Gen 1 hub designed for reliable data transfer and device connectivity in demanding environments. With 6 USB ports (4 downstream Type-A, 1 upstream Type-B) and 15kV ESD protection, it ensures stable operation and safeguards connected equipment against electrostatic discharges. The metal housing and DIN-rail mounting make it ideal for industrial automation, control cabinets, and embedded systems.

Advantages

Industrial-grade durability with aluminum housing and wide temperature range (-40°C to 85°C). Per-port over-current protection and LED indicators for easy monitoring. Plug-and-play installation with no driver required for Windows, macOS, and Linux.

Suitable for

• Industrial automation and control systems
• Factory floor data collection and monitoring
• Embedded computing and IoT gateways
• Server rooms and network cabinets

Key specifications

• USB Standard: USB 3.2 Gen 1 (5 Gbps)
• Downstream Ports: 4 x USB Type-A
• Upstream Port: 1 x USB Type-B
• ESD Protection: 15kV Air, 8kV Contact
• Mounting: DIN-Rail
• Power Input: 9-24V DC (terminal block)
• Operating Temperature: -40°C to 85°C
• Housing: Metal (Aluminum)
• Chipset: VIA VL817
• Backward Compatible: USB 2.0, 1.1

Recommendations

For optimal performance, use a certified USB 3.0 cable and a stable 9-24V DC power source. Ideal for expanding USB connectivity in harsh industrial settings.
