Extensor HDBaseT 4K UHD Wyrestorm con HDCP 2.2 y PoH bidireccional y paso de CEC

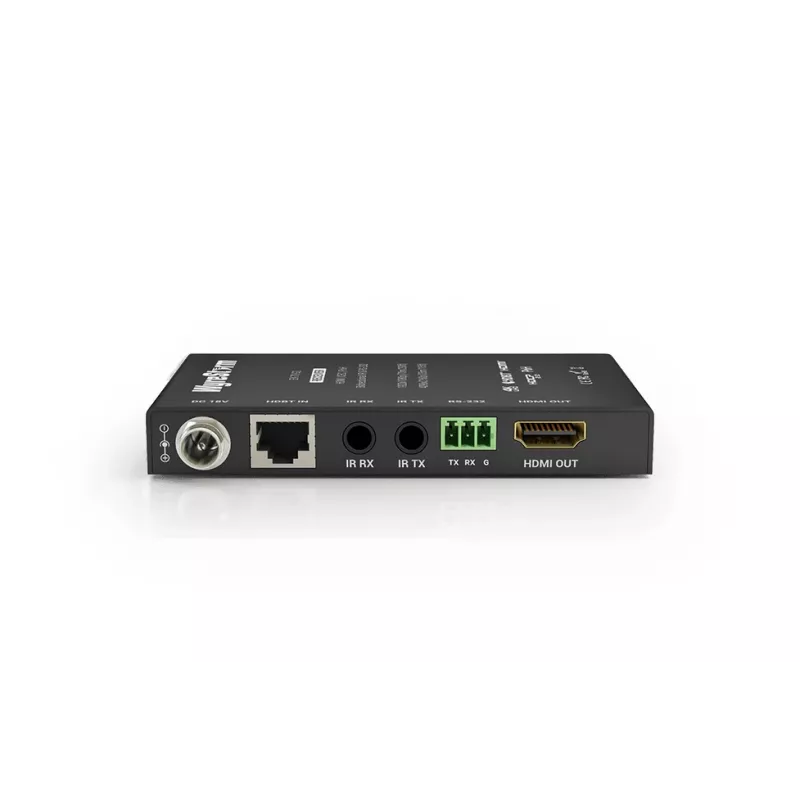

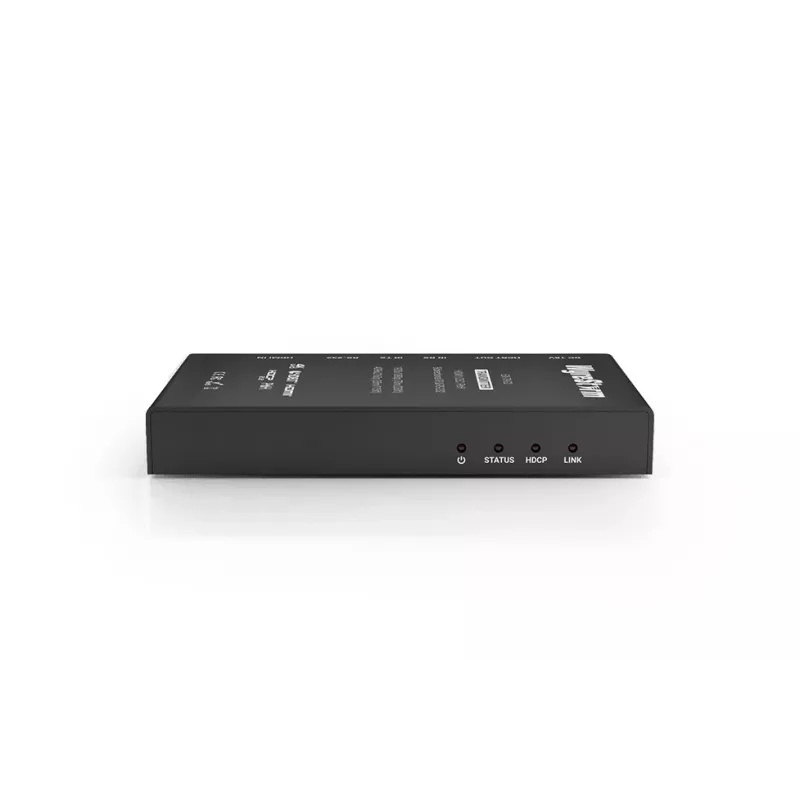

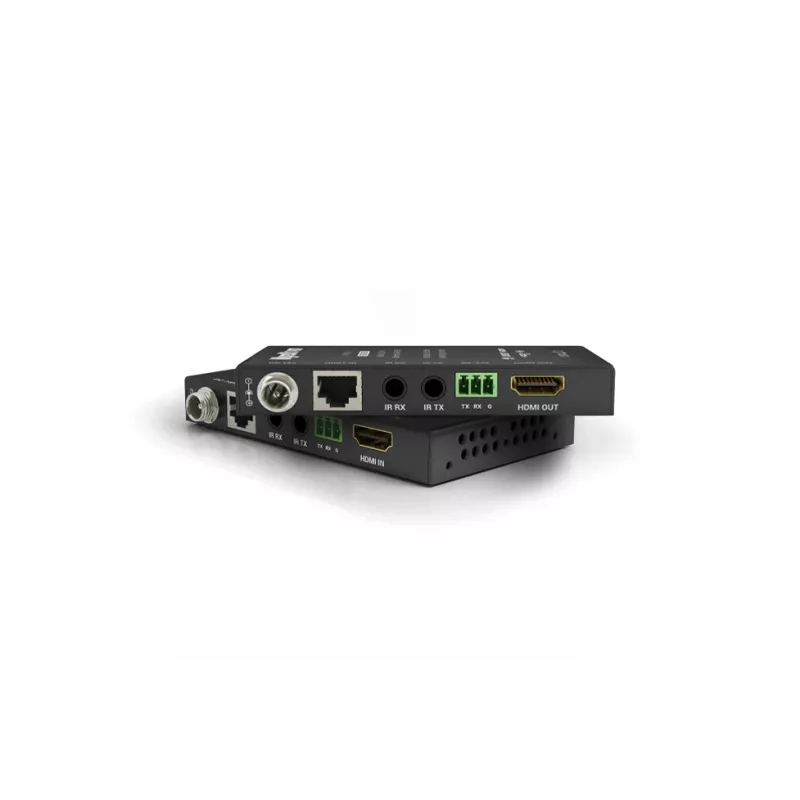

The Wyrestorm EX-70-G2 is a professional 4K UHD HDBaseT extender set that transmits HDMI signals up to 70m at 1080p or 40m at 4K UHD over a single Cat5e/6 cable. It supports HDCP 2.2 and 1.4, HDR10, and features 2-way Power over HDBaseT (PoH) for flexible installation. With CEC, IR, and RS-232 passthrough, it integrates seamlessly into any AV system.

Advantages

This extender set offers reliable, high-quality video extension with low latency. The 2-way PoH allows either the transmitter or receiver to be powered, simplifying cabling. Metal housing ensures durability, and EDID management provides compatibility with various displays.

Suitable for

• Home theater installations
• Digital signage
• Conference rooms and classrooms
• Any application requiring long-distance HDMI extension

Key specifications

• Max Video Resolution: 4K UHD (3840x2160) @60Hz 4:2:0 8bit / @30Hz 4:4:4 8bit
• Max Transmission Distance (1080p): 70m (230ft)
• Max Transmission Distance (4K UHD): 40m (131ft)
• HDCP Compliance: HDCP 2.2 & HDCP 1.4
• HDR Support: HDR10
• HDBaseT Class: Class B (Lite)
• Power over HDBaseT (PoH): 2-way (Tx or Rx can be powered)
• CEC Passthrough: Yes
• IR Passthrough: 2-way
• RS-232 Passthrough: 2-way
• Video Bandwidth: 10.2 Gbps
• Audio Formats Supported: LPCM, Dolby Digital, DTS-HD Master Audio
• EDID Management: Yes
• Transmitter Inputs: 1x HDMI In, 1x IR In, 1x RS-232
• Transmitter Outputs: 1x HDBaseT Out, 1x IR Out
• Receiver Inputs: 1x HDBaseT In, 1x IR In
• Receiver Outputs: 1x HDMI Out, 1x IR Out, 1x RS-232
• Power Supply: 12V DC, 2A (external PSU included)
• Housing Material: Metal
• Operating Temperature: 0 to 45°C (32 to 113°F)

Recommendations

For optimal performance, use high-quality Cat6 cables. Ensure the power supply is connected to the unit designated as the power source. This extender is ideal for professional AV integrators and enthusiasts seeking reliable 4K extension.
