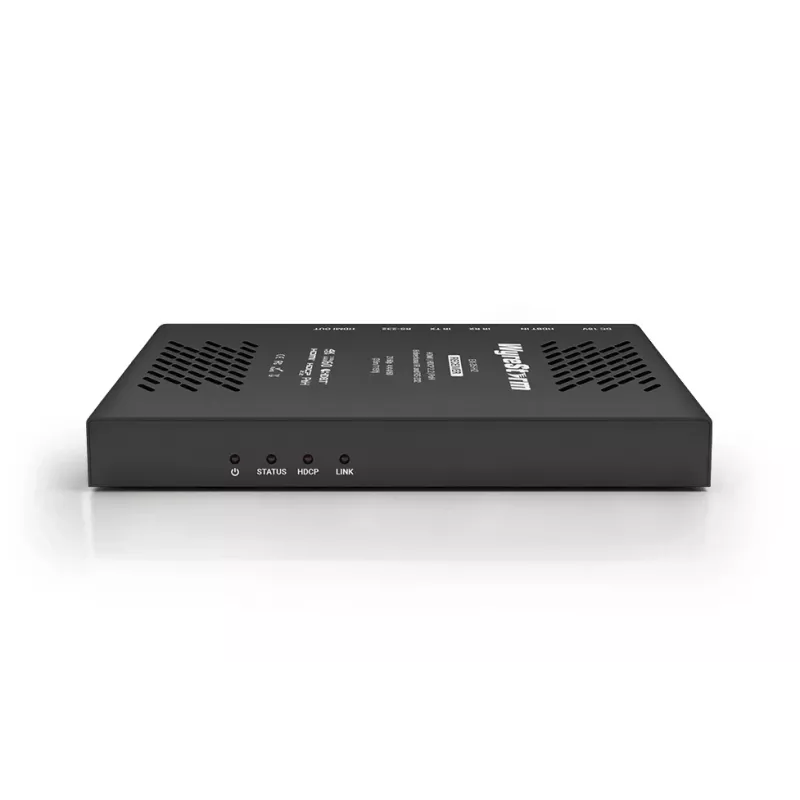

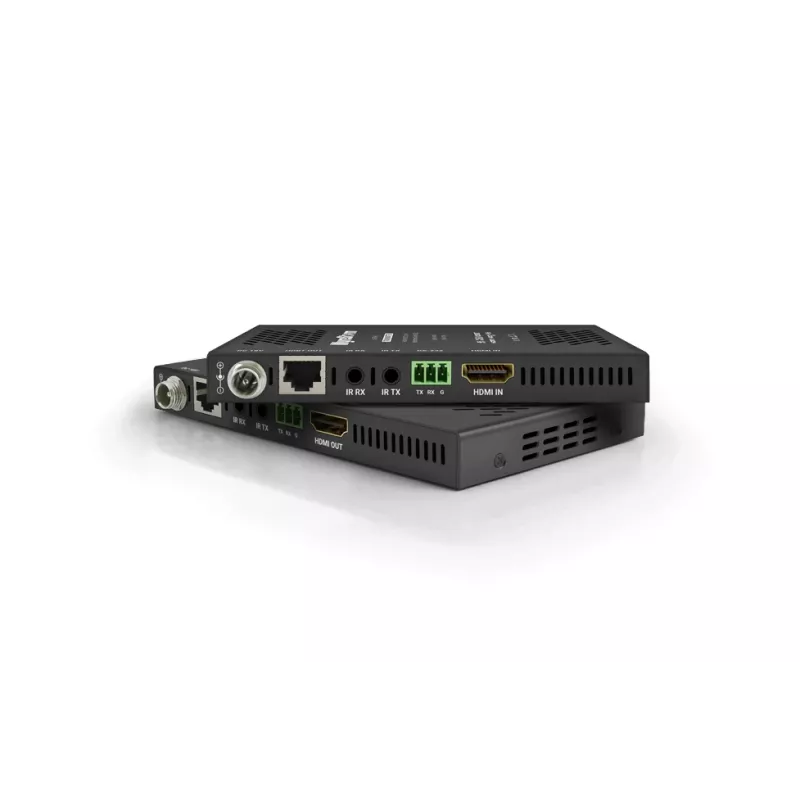

Extensor HDBaseT 4K UHD Wyrestorm con PoH bidireccional e IR y RS-232 bidireccionales

The Wyrestorm EX-35-H2 is a professional-grade 4K UHD HDBaseT extender set that delivers uncompromised video and audio over a single Cat5e/6 cable. Supporting resolutions up to 4K UHD at 30Hz 4:4:4 and 1080p at 60Hz, this extender set is ideal for commercial and residential AV installations requiring long-distance signal transmission without quality loss. With 2-way Power over HDBaseT (PoH), either the transmitter or receiver can power the system, simplifying installation. Bidirectional IR and RS-232 pass-through enable seamless control of source and display devices from either end.

Advantages

This extender set offers exceptional flexibility and reliability. The 2-way PoH feature eliminates the need for a local power outlet at both ends, reducing installation complexity and cost. HDBaseT technology ensures robust signal transmission up to 70m for 1080p and 40m for 4K UHD over standard Cat5e/6 cabling. The metal chassis provides durability and effective heat dissipation, while built-in ESD protection safeguards against electrostatic discharge. HDCP 2.2 compliance guarantees compatibility with the latest 4K content sources.

Suitable for

• Home theater systems requiring 4K UHD distribution
• Commercial AV installations such as conference rooms, classrooms, and digital signage
• Long-distance HDMI extension beyond standard cable limits
• Applications needing centralized control via IR or RS-232

Key specifications

• Video Resolution: Up to 4K UHD (3840x2160) @30Hz 4:4:4, 4K @60Hz 4:2:0, 1080p @60Hz
• HDBaseT Distance: 70m (1080p), 40m (4K UHD) over Cat5e/6
• Power: 2-way PoH (power from transmitter or receiver)
• Control: Bidirectional IR and RS-232 pass-through
• HDCP: 2.2 compliant
• Audio: LPCM, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS
• Bandwidth: 10.2 Gbps

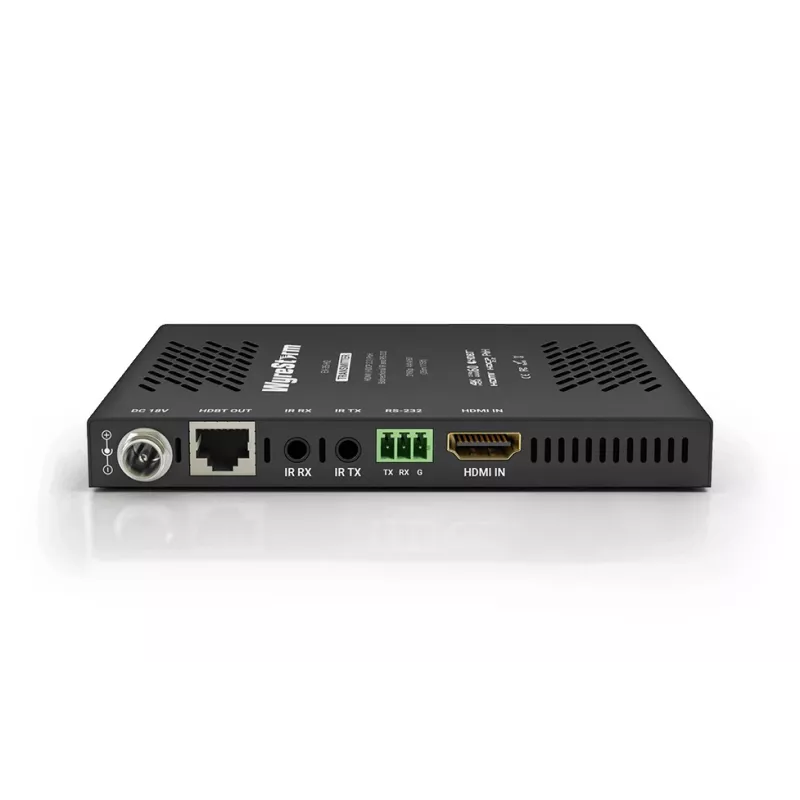

• Connectors (TX): 1x HDMI In, 1x IR In, 1x RS-232, 1x HDBaseT Out, 1x IR Out

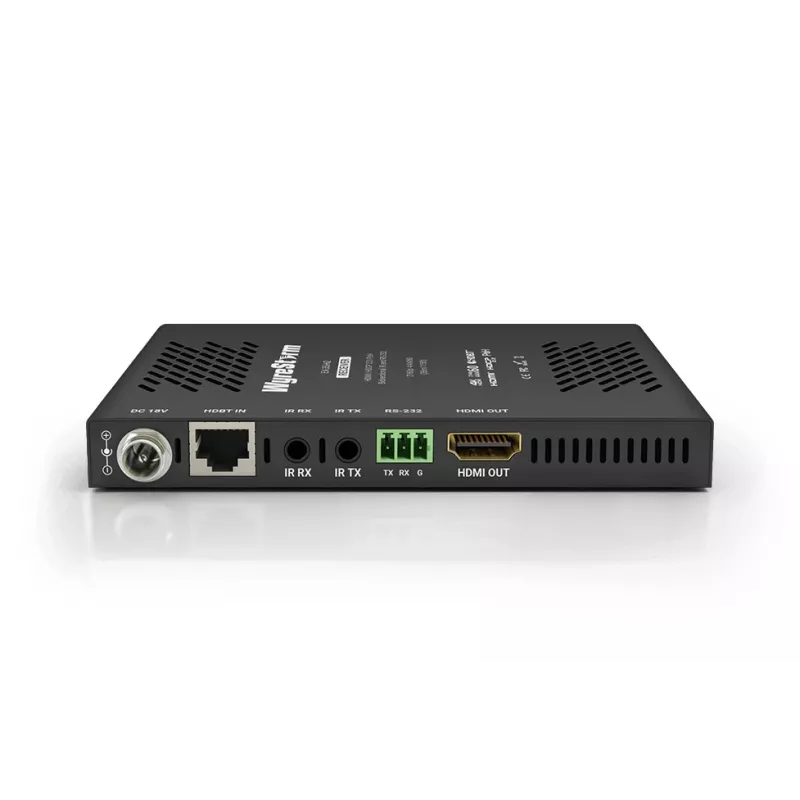

• Connectors (RX): 1x HDBaseT In, 1x IR In, 1x RS-232, 1x HDMI Out, 1x IR Out
• Chassis: Metal
• Power Supply: 12V DC, 2A (included)
• ESD Protection: ±8kV Contact, ±15kV Air
• Operating Temperature: 0 to 45°C
• CEC Pass-through: Yes
• EDID Management: Yes
• Color Space: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Recommendations

For optimal performance, use high-quality Cat6 or Cat6a cables. Ensure proper termination and avoid sharp bends. The extender set is plug-and-play; no additional software required. For advanced EDID management, refer to the user manual.
