Extensor HDMI Transmisor HDMI-EX-120/TX-V4 1080p 120m por Cat5e/6/7

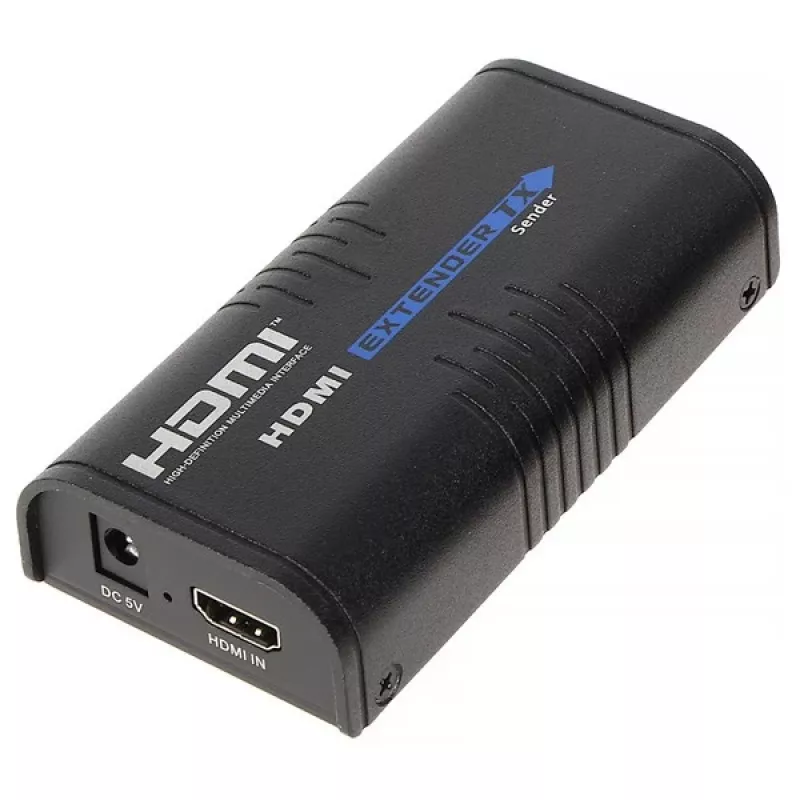

The HDMI-EX-120/TX-V4 is a high-performance HDMI extender transmitter unit designed to transmit Full HD 1080p video and audio signals over a single Cat5e/6/7 Ethernet cable up to 120 meters. Ideal for extending HDMI signals in home theaters, conference rooms, digital signage, and educational environments, this transmitter offers reliable, low-latency transmission with bi-directional IR pass-through for remote control extension.

Advantages

This transmitter provides a cost-effective and flexible solution for long-distance HDMI signal distribution. With near-zero latency (<1ms), it ensures real-time video playback without lag. The plug-and-play installation requires no software or drivers, making it easy to set up. Its metal alloy casing ensures durability and effective heat dissipation, suitable for continuous operation in various environments.

Suitable for

• Home theater systems requiring long cable runs
• Conference rooms and boardrooms for presentations
• Digital signage and advertising displays
• Educational institutions for classroom AV setups
• Retail stores for video distribution

Key specifications

• Product Type: HDMI Extender Transmitter (TX Unit)
• Max Resolution: 1080p @ 60Hz (Full HD)
• Max Transmission Distance: 120 meters (394 feet) over Cat5e/6/7
• HDMI Version: 1.3
• HDCP Version: 1.2
• IR Pass-through: Bi-directional (20-60KHz)
• Supported Audio Formats: LPCM, DTS Digital, Dolby Digital
• Input Ports: 1x HDMI Type A Female
• Output Ports: 1x RJ45 Female, 1x IR Out (3.5mm jack)
• Power Supply: DC 5V/1A (adapter included)
• Power Consumption: <3W
• Casing Material: Metal Alloy
• Operating Temperature: -10°C to +50°C
• Latency: <1ms
• LED Indicators: Power, Link/Signal
• Installation: Plug & Play

Recommendations

For optimal performance, use high-quality Cat6 or Cat7 Ethernet cables. Ensure the receiver unit (sold separately) is compatible with the same specifications. This transmitter is ideal for extending HDMI signals in professional AV installations where reliability and signal integrity are paramount.
