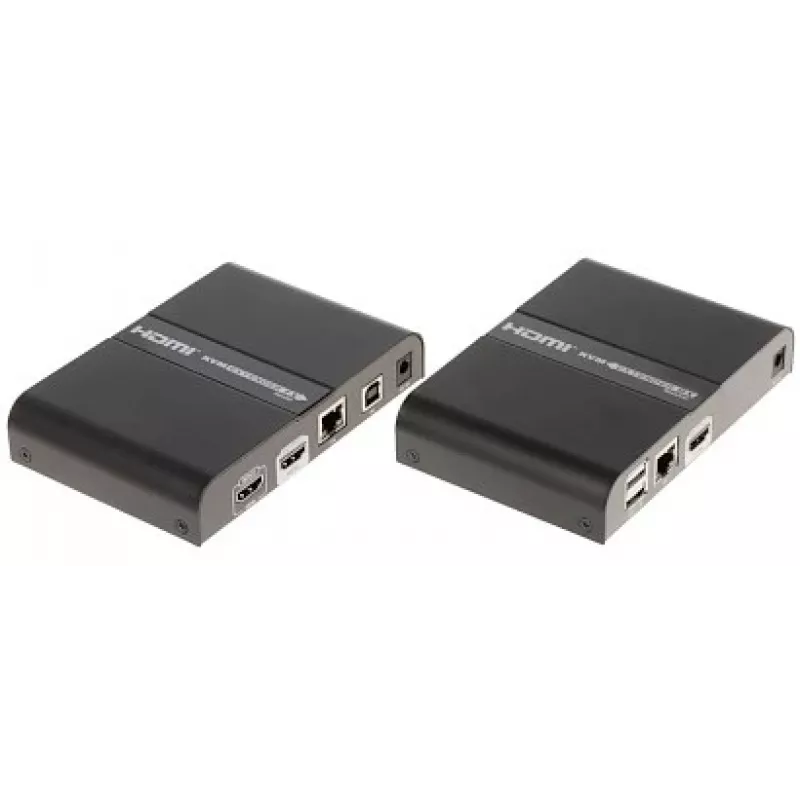

Extensor KVM SIGNAL HDMI+USB-EX-100-4K-V2 4K@60Hz 100m

The SIGNAL HDMI+USB-EX-100-4K-V2 is a high-performance KVM extender that transmits HDMI video, audio, and USB 2.0 signals up to 100 meters over a single Cat.6/6A/7 Ethernet cable. Supporting resolutions up to 4K@60Hz with HDCP 2.2, it is ideal for extending a workstation or control center.

Advantages

Experience ultra-low latency (<1ms) and reliable signal transmission with EDID pass-through. The metal housing ensures durability, and the included mounting brackets allow for flexible installation. With two USB-A ports on the receiver, you can connect a keyboard and mouse for full KVM control.

Suitable for

• Extending a computer setup to a remote monitor and peripherals
• Digital signage and video walls
• Control rooms and command centers
• Education and corporate environments

Key specifications

• Product Type: KVM Extender
• Max Resolution: 4K@60Hz (3840x2160)
• Transmission Distance: Up to 100m over Cat.6/6A/7
• HDMI Standard: HDMI 2.0
• USB Standard: USB 2.0
• HDCP Support: HDCP 2.2
• Input Ports (Sender): 1x HDMI, 1x USB-B
• Output Ports (Receiver): 1x HDMI, 2x USB-A
• Audio Support: LPCM, DTS-HD, Dolby TrueHD
• Power Supply: DC 5V/2A (2 adapters included)
• Housing Material: Metal
• Bandwidth: 18 Gbps
• Color Space: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
• ESD Protection: ±8kV air-gap, ±4kV contact

Recommendations

For optimal performance, use high-quality Cat.6A or Cat.7 cables. Ensure the power adapters are connected to both the sender and receiver units.
