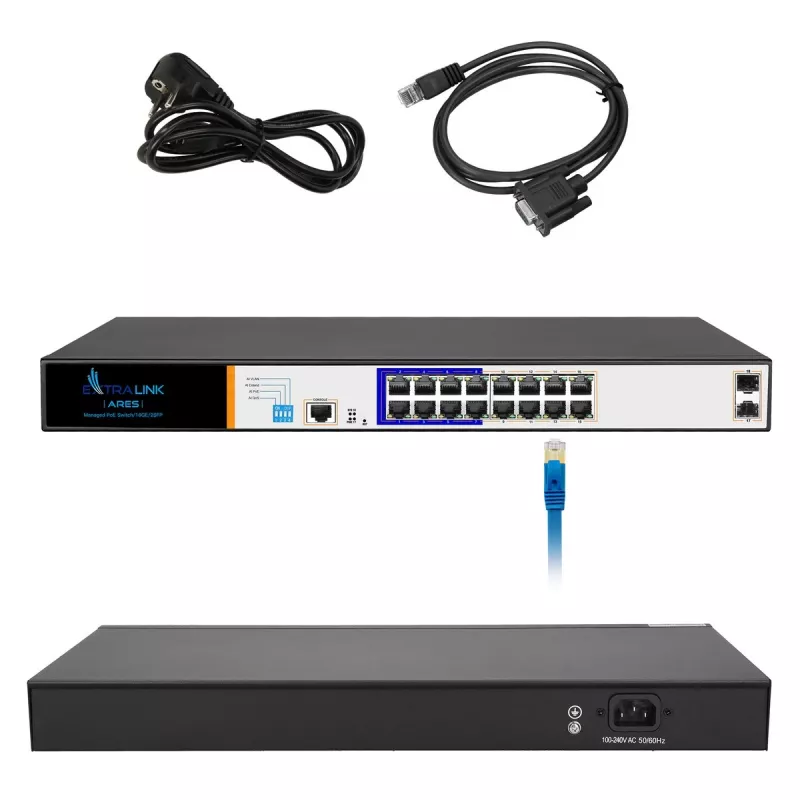

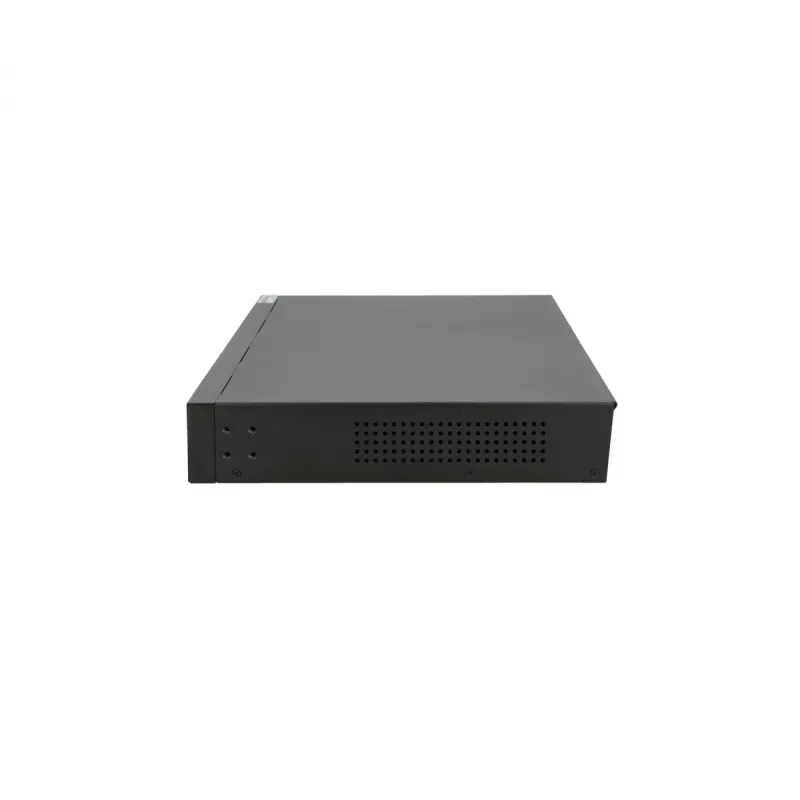

Extralink ARES switch PoE, 16x Gigabit PoE/PoE+, 2x SFP, 1x puerto de consola, 150W, gestionado

Running out of PoE ports and bandwidth in your growing network? The Extralink ARES PoE Switch delivers 16 Gigabit PoE/PoE+ ports with a total power budget of 150W, plus 2 SFP uplinks and a console port for out-of-band management. This managed Layer 2 switch gives you full control over VLANs, QoS, and port security, making it ideal for IP cameras, VoIP phones, and wireless access points in SMB or enterprise edge deployments.

Who is it for

Network administrators and IT integrators who need reliable PoE delivery to multiple endpoints without separate power injectors. Perfect for offices, retail, schools, and surveillance systems where centralized management and high-speed uplinks are required.

Main features

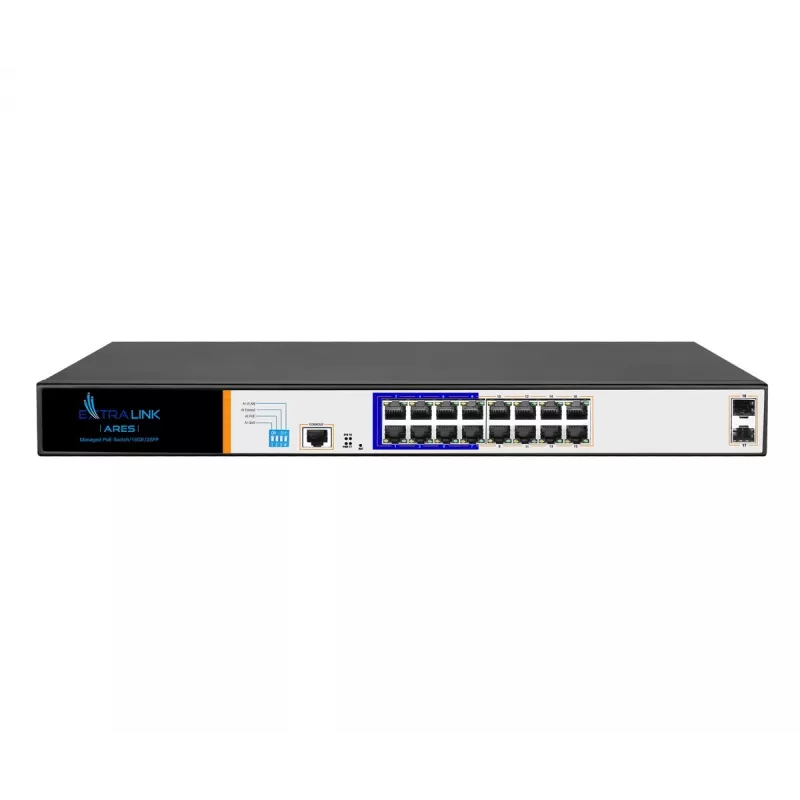

• 16× Gigabit PoE/PoE+ ports (10/100/1000 Mbps) with 150W total power budget
• 2× SFP slots for fiber uplinks, extending network reach
• 1× console port for local CLI management
• Managed Layer 2 features: VLAN, QoS, IGMP snooping, port mirroring, and more
• Rack-mountable metal housing for 19" racks
• Fanless design for silent operation in office environments

Specifications

• Brand: Extralink
• Model: ARES (EX.3807)
• Ports: 16× 10/100/1000 Mbps RJ45 PoE/PoE+, 2× SFP, 1× Console
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• PoE power budget: 150W
• Switching capacity: 36 Gbps
• Forwarding rate: 26.78 Mpps
• MAC address table: 8K
• Jumbo frame support: up to 9KB
• Management: Web GUI, CLI (console, Telnet, SSH), SNMP v1/v2c/v3
• VLAN: 802.1Q, up to 4094 VLANs
• QoS: 802.1p, DSCP, 8 queues per port
• Security: Port security, ACL, 802.1X, Storm control

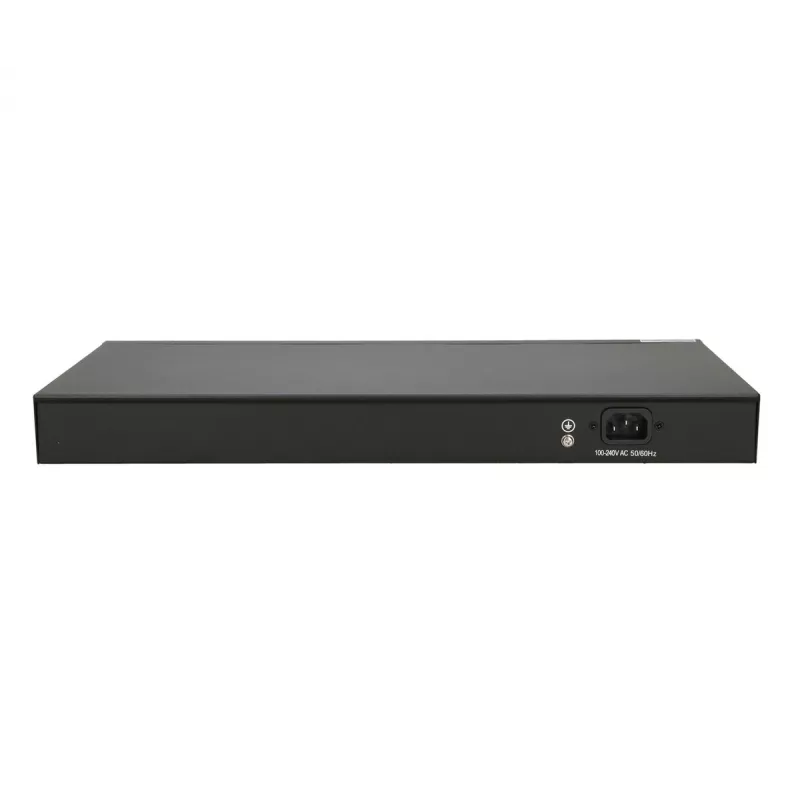

• Power supply: Internal AC 100-240V, 50/60Hz
• Dimensions (W×D×H): 440×220×44 mm (1U)
• Weight: 3.5 kg
• Operating temperature: 0°C to 40°C
• Certifications: CE, FCC, RoHS

Tips

Use the SFP slots to connect to a core switch or server over fiber, avoiding bottlenecks. Enable PoE scheduling to power down devices like IP cameras during off-hours, saving energy. For security, disable unused ports and enable 802.1X authentication to prevent unauthorized access.
