f-tronic VT H=1050mm 1 campo V17APZ 5 filas espacio APZ con AP 7141627 1 (7141627)

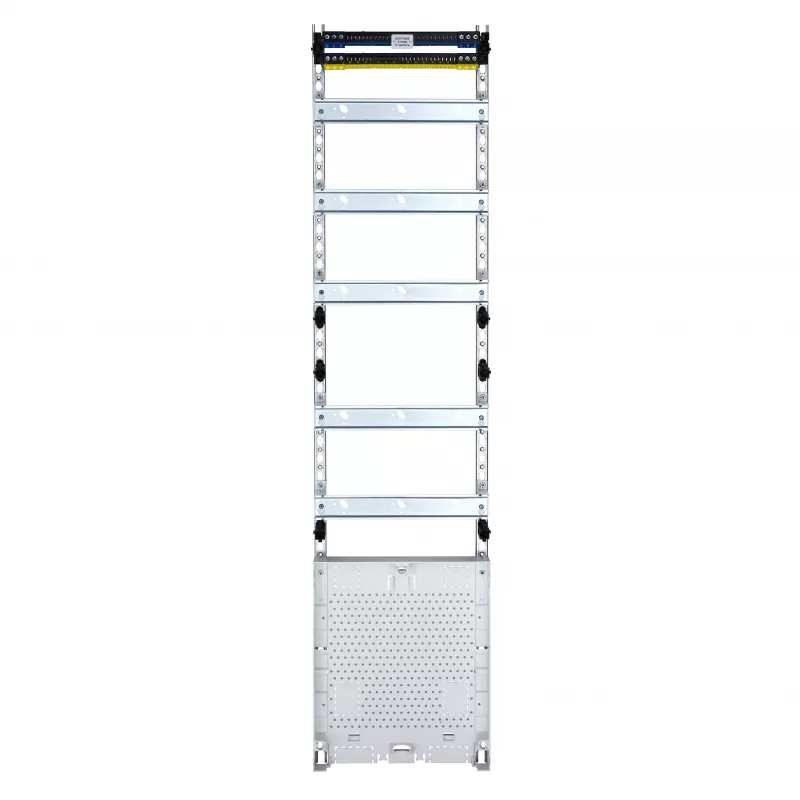

This flush-mounted distribution cabinet solves the challenge of safely housing electrical distribution and meter equipment in residential and commercial buildings. With a height of 1050 mm and a single field, it provides ample space for 5 rows of modular devices, including a dedicated meter connection space (APZ).

Who is it for

Electricians and installers who need a reliable, standards-compliant enclosure for meter installations and power distribution in modern buildings.

Main features

• Flush-mounted design for a clean, integrated look
• 1 field with 5 rows, total 60 modules (12 TE per row)
• Integrated meter connection space (APZ)
• Lockable steel door with reversible hinge
• Powder-coated steel sheet in white (RAL 9010)
• Protection class IP31
• Pre-punched knockouts for cable entry
• N/PE terminal blocks included

Specifications

• Mounting type: Flush-mounted (UP)
• Number of rows: 5
• Number of fields: 1
• Total modules: 60 (5 x 12 TE)
• Meter connection space: Integrated
• Material: Steel sheet
• Surface finish: Powder-coated
• Colour: White (RAL 9010)
• Protection class: IP31
• Door type: Steel door, lockable
• Niche dimensions (H x W x D): 1025 x 280 x 110 mm
• Outer dimensions (H x W x D): 1050 x 305 x 120 mm
• Rated current: Up to 63 A
• Terminal blocks: N/PE included
• Cable entry: Pre-punched knockouts (top/bottom)
• Standards: DIN VDE
• Application: Residential, commercial, meter installations
• Door hinge: Reversible (right/left)

Tips

Ensure the wall recess is prepared according to the niche dimensions. The reversible door allows flexible installation depending on room layout.
