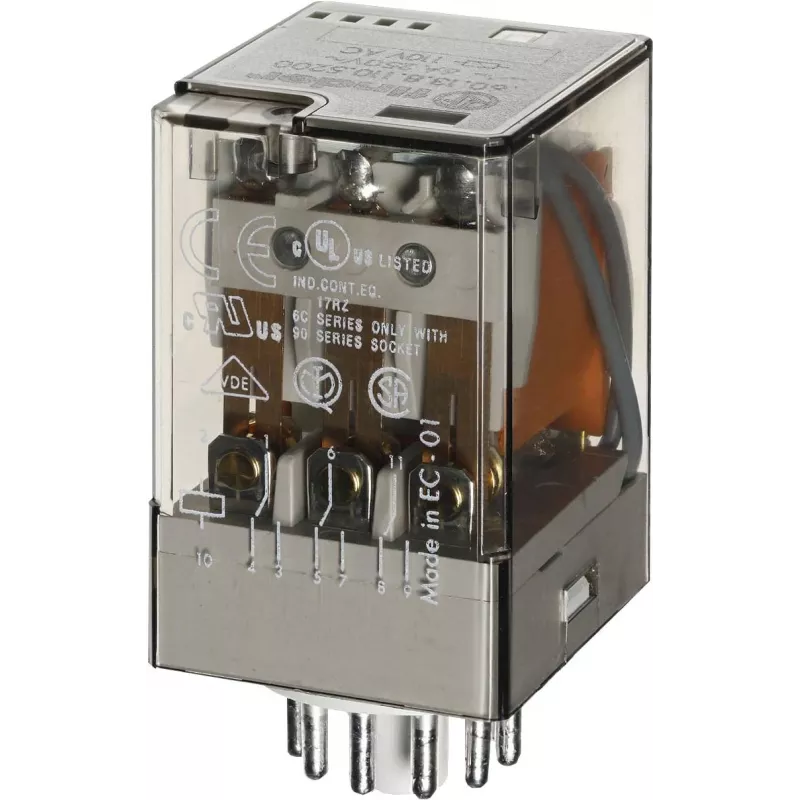

Finder 60.13.8.024.0 Relé industrial con LED, 3 CO, 24V AC, 10A, enchufable 601380240050

The Finder 60.13.8.024.0 industrial relay stands out with its integrated LED indicator and lockable test button, providing immediate visual status and manual testing without removing the relay from its socket. This 3 CO (3PDT) plug-in relay is engineered for 24V AC coil operation and handles loads up to 10A, making it a robust choice for industrial control panels and automation systems.

Highlights

• 3 CO (3PDT) contact configuration for versatile switching
• 24V AC coil voltage with low 3 VA power consumption
• LED indicator and mechanical flag for clear status at a glance
• Lockable test button for manual operation checks
• Plug-in octal base compatible with Finder 90 series sockets

In daily use

Designed for reliability in demanding environments, this relay features silver nickel (AgNi) contacts rated for 10A and 2500 VA, with a maximum switching voltage of 400V AC. The flux-proof construction (RT I) protects against dust and contaminants, while the wide operating temperature range of -40°C to +70°C ensures performance in extreme conditions. The mechanical life of 10 million operations and electrical life of 100,000 operations at AC1 load deliver long-term durability.

Full specifications

• Contact configuration: 3 CO (3PDT)
• Coil voltage: 24V AC
• Rated current: 10A
• Rated load (AC1): 2500 VA
• Coil power consumption: 3 VA
• Contact material: AgNi (Silver Nickel)
• Max switching voltage: 400V AC
• Electrical life (AC1): 100 x 10^3 operations
• Mechanical life: 10 x 10^6 operations
• Operating temperature range: -40 to +70 °C
• Dielectric strength (coil-contact): 2500V AC
• Dielectric strength (open contacts): 1000V AC
• Insulation resistance: > 1000 MΩ
• Protection degree: RT I (Flux proof)
• Mounting type: Plug-in (Octal Base)
• Number of pins: 11
• Features: LED Indicator, Lockable Test Button, Mechanical Indicator
• Compatible sockets: Finder Series 90 (e.g., 90.73, 90.74, 90.75)

Final note

This relay is a reliable choice for industrial automation, offering clear status indication and robust switching performance in a compact plug-in package.
