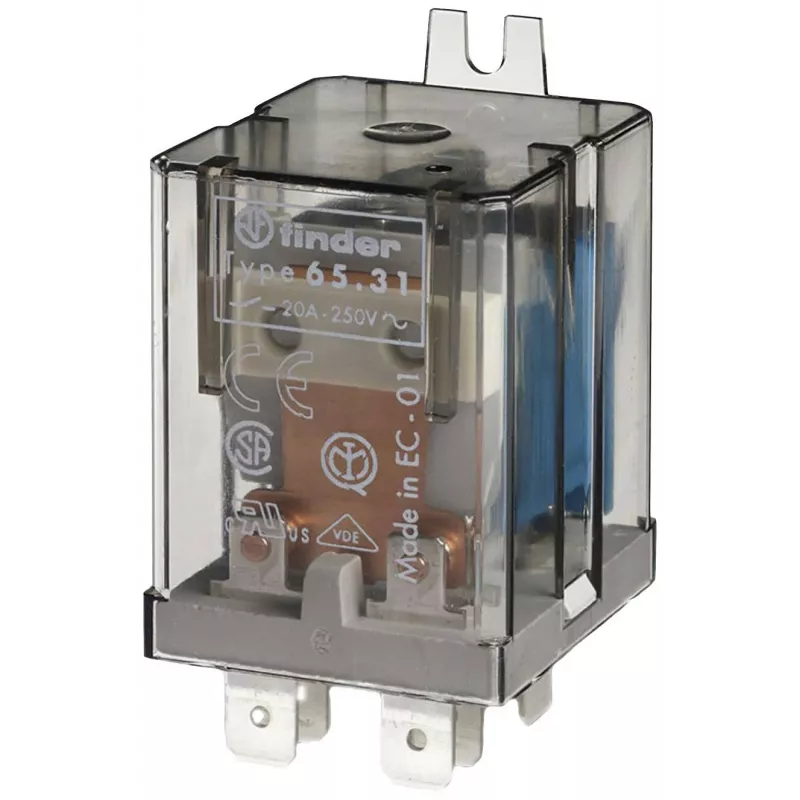

Finder 65.31.9.024.4000 Relé industrial enchufable, bobina 24V DC, 1 CO (SPDT), 20A, resistente al flujo

In industrial control panels and automation systems, the Finder 65.31.9.024.4000 plug-in relay switches loads up to 20A. Its 24V DC coil and single changeover contact (SPDT) suit machinery, HVAC, and process control where reliable high-current switching is required.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 CO (SPDT)
• Contact rating: 20 A / 250 V AC (AC1)
• Max switching voltage: 400 V AC
• Max switching power: 5000 VA
• Coil power: 1.2 W
• Contact material: AgNi
• Operating temperature: -40 to +70 °C
• Electrical life: 100 x 10^3 cycles at rated load
• Mechanical life: 10 x 10^6 cycles
• Mounting: plug-in socket
• Protection: RT I (flux proof)

Why choose it

Designed for demanding industrial environments, it handles high inrush currents and provides long service life. Flux-proof construction protects against solder flux and contaminants, ensuring stable performance.

Ideal use cases

• Motor control circuits
• Heating and lighting loads
• Industrial automation panels
• HVAC systems

Good to know

Mount on a compatible Finder socket for quick installation and replacement. The relay is part of the Series 65, known for compact size and high switching capacity.
