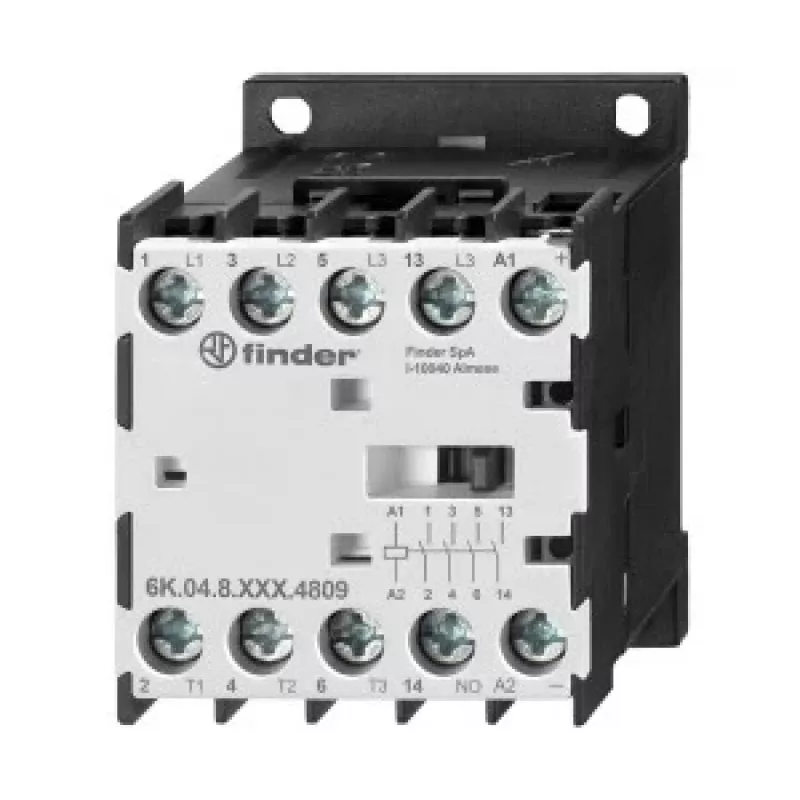

Finder 6K.04.8.230.4812 Contactor modular, bobina 230 V AC, 3 contactos principales NO, 1 contacto auxiliar NO, 25 A

The Finder 6K.04.8.230.4812 modular contactor delivers reliable switching for lighting and motor loads in a compact DIN-rail housing. With a 230 V AC coil, three normally open main contacts, and an additional NO auxiliary contact, it handles up to 25 A (AC-1) and 9 A (AC-3) with ease.

Advantages

Engineered for longevity, this contactor boasts a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles under AC-3 conditions. Its low holding power of 4.5 VA reduces energy consumption, while the IP40 front protection and IP20 terminals ensure safe operation in distribution boards.

Suitable for

• Resistive loads such as lighting and heating systems
• Motor control up to 4 kW at 400 V AC
• Building automation and HVAC applications
• DIN-rail installations in electrical panels

Key specifications

• Coil voltage: 230 V AC
• Main contacts: 3 NO, auxiliary contact: 1 NO
• Rated current: 25 A (AC-1), 9 A (AC-3)
• Rated power: 4 kW at 400 V AC (AC-3)
• Mounting: DIN rail (EN 60715)
• Operating temperature: -25 to +55 °C
• Standards: EN 60947-4-1, EN 61095

Recommendations

For electricians and panel builders seeking a compact, high-cycle contactor, the Finder 6K series offers proven performance and easy installation. Pair with appropriate overload protection for motor circuits.
