Finder 7M.24.8.230.0010 Contador de energía monofásico MID, conexión directa, 100 A, clase B, carril DIN, salida de impulso S0

With a maximum current of 100 A and a direct connection design, this single-phase energy meter handles high-load residential and commercial circuits without external current transformers. Its Class B accuracy (EN 50470-3) and MID certification ensure billing-grade measurement of active energy.

Overview

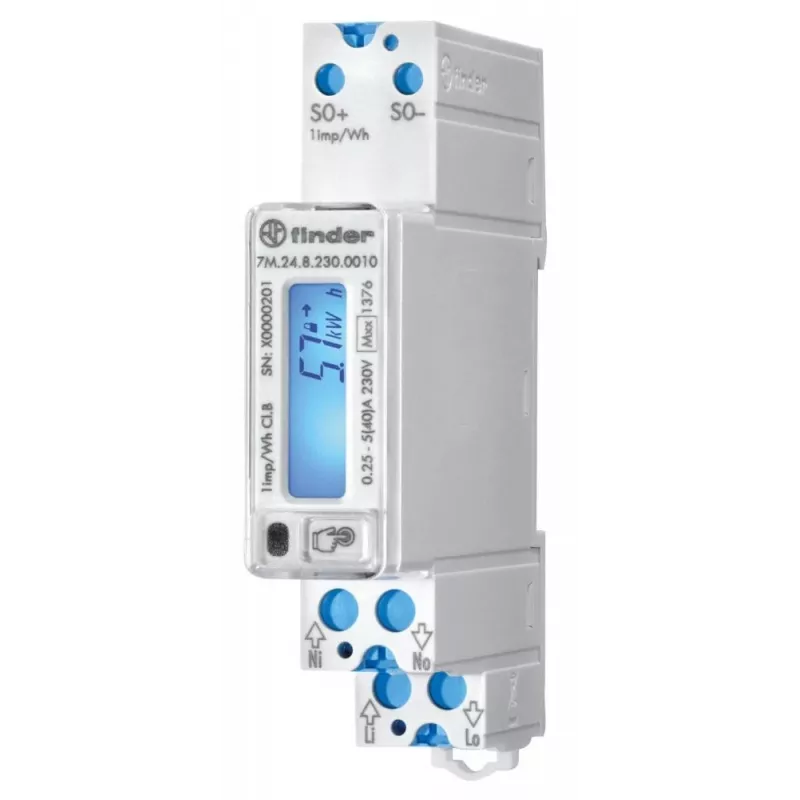

The Finder 7M.24.8.230.0010 is a single-phase energy meter for direct connection up to 100 A. It measures active energy (kWh) with a nominal current of 10 A and a minimum current of 0.25 A. The meter operates at 230 V AC, 50/60 Hz, and features a backlit LCD display with 7+1 digits (999999.9 kWh). A pulse output (S0 interface, 1000 imp/kWh) allows remote reading. Designed for DIN rail mounting (EN 60715), it occupies 8 modules (140 mm width).

What stands out

• Direct connection up to 100 A – no external CTs needed
• MID certified (Module B + D) for legal metrology
• Class B accuracy for active energy per EN 50470-3
• S0 pulse output (1000 imp/kWh) for integration with energy management systems
• Backlit LCD with 7+1 digits for clear reading
• DIN rail mounting, 8 modules wide

Technical details

• Meter type: Single-phase energy meter
• Connection: Direct
• Nominal voltage: 230 V AC
• Frequency: 50/60 Hz
• Maximum current (Imax): 100 A
• Nominal current (Ib): 10 A
• Minimum current (Imin): 0.25 A
• Accuracy class: Class B (EN 50470-3)
• Display: LCD with backlight, 7+1 digits (999999.9 kWh)
• Pulse output: S0, 1000 imp/kWh
• Mounting: DIN rail (EN 60715)
• Module width: 8 modules (140 mm)
• Operating temperature: -25 to +55 °C
• Protection degree (front panel): IP50
• Protection degree (terminal block): IP20
• Tariff: Single tariff

Our verdict

An ideal choice for sub-metering in residential and commercial settings where direct connection up to 100 A and MID compliance are required. The S0 pulse output and backlit display add practical value for monitoring and billing.
