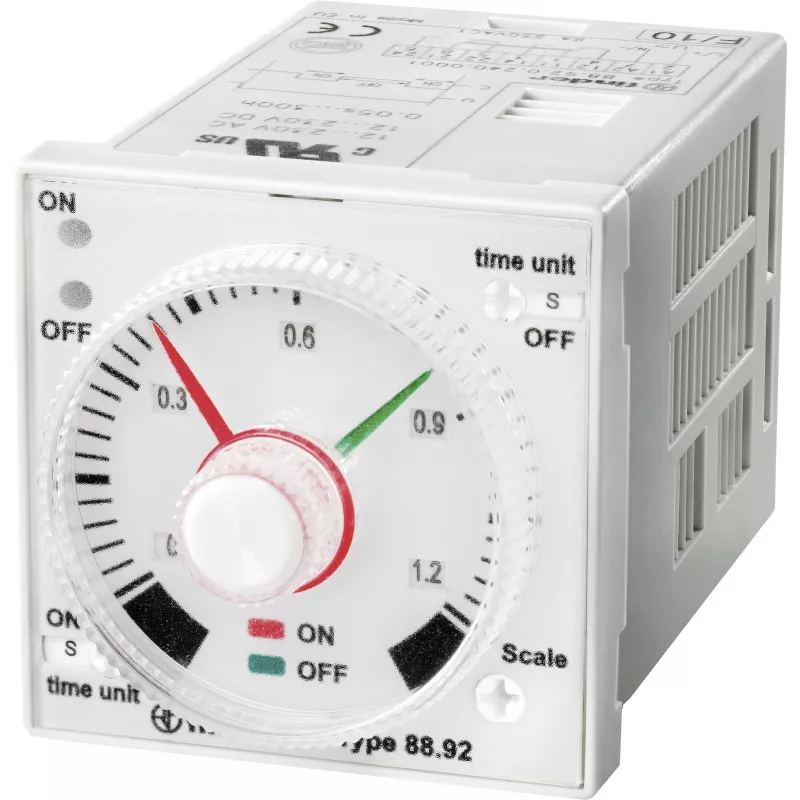

FINDER 88.92.0.240.0000 Relé temporizador multifunción, 240 V AC, 2 conmutadores, 16 A, Carril DIN

With 15 selectable timing functions and a wide time range from 0.05 seconds to 100 hours, the FINDER 88.92.0.240.0000 time relay offers versatile control for industrial automation. Its DPDT contacts handle up to 16 A at 250 V AC, making it suitable for direct switching of motors, valves, and lighting loads.

Overview

This multi-function timer operates on a 240 V AC supply and mounts on standard 35 mm DIN rail. Screw terminals ensure secure wiring, and the front panel provides IP40 protection. The relay is designed for reliable performance in demanding environments, with an operating temperature range of -20 to +50 °C.

What stands out

• 15 selectable timing functions for flexible control
• Wide time range: 0.05 s to 100 h
• High switching capacity: 16 A / 250 V AC
• DIN rail mounting for easy installation
• Mechanical life of 10 million cycles

Technical details

• Contact configuration: 2 changeover (DPDT)
• Contact material: AgCdO
• Supply voltage: 240 V AC
• Power consumption: 2.5 VA
• Dielectric strength: 2 kV AC
• Electrical life: 100,000 cycles at rated load
• Operating temperature: -20 to +50 °C
• Terminal type: screw
• Protection: IP40 front, IP20 terminals

Our verdict

A robust and flexible time relay for industrial control panels, offering a broad timing range and high contact rating in a compact DIN rail module.
