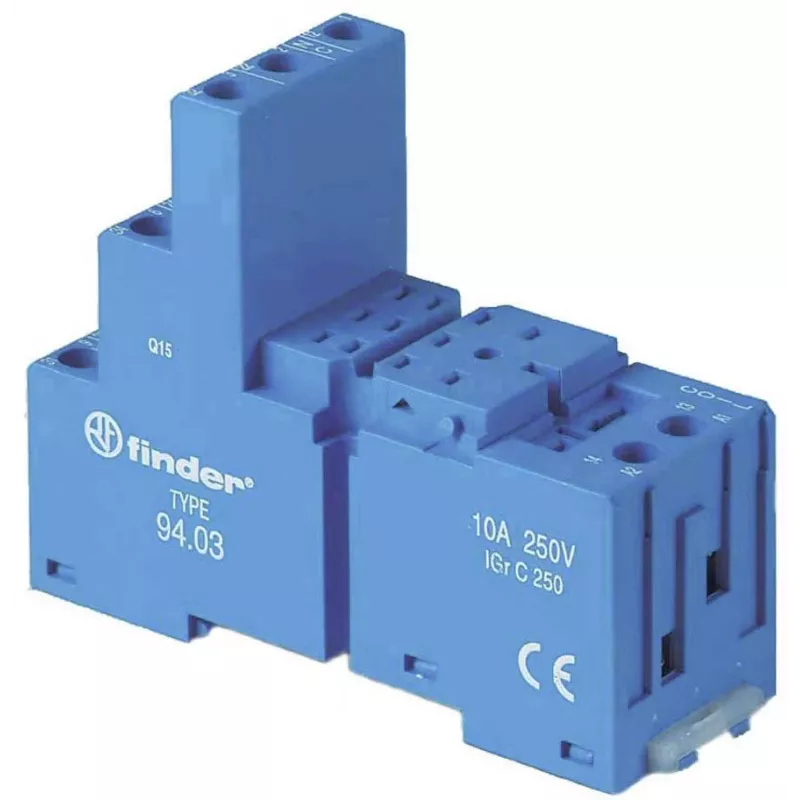

Finder 94.03 Base azul con terminales de tornillo para relés de las series 55.33/55.34 y 85, 11 polos, montaje en carril DIN/panel, 10 A, 250 V AC

This blue screw terminal socket securely mounts Finder 55.33, 55.34, 85.03, 85.04, 85.33, 85.34, 85.53, and 85.54 series relays on DIN rail (EN 60715) or panel. Its 11-pin configuration and screw terminals support rated currents up to 10 A and 250 V AC, ensuring reliable connections in industrial control systems.

Advantages

The socket's polyamide (PA) housing offers high mechanical strength and a UL 94 V-0 flammability rating, providing safety in demanding environments. Screw terminals accept solid wires up to 2 x 2.5 mm² and stranded wires up to 2 x 1.5 mm², with an 8 mm strip length and 0.5 Nm tightening torque for secure, maintenance-friendly wiring. An IP20 protection degree guards against accidental contact, while the operating temperature range of -40 to +70 °C ensures performance in harsh conditions.

Suitable for

• Industrial automation and control panels
• Relay replacement and maintenance in machinery
• DIN rail or panel-mounted relay installations

Key specifications

• Socket type: Screw terminal socket
• Number of pins: 11
• Compatible relay series: 55.33, 55.34, 85.03, 85.04, 85.33, 85.34, 85.53, 85.54
• Mounting: DIN rail (EN 60715) or panel
• Rated current: 10 A
• Rated voltage: 250 V AC
• Dielectric strength: 2 kV AC (input-output)
• Wire capacity: 2 x 2.5 mm² solid / 2 x 1.5 mm² stranded
• Wire strip length: 8 mm
• Screw torque: 0.5 Nm
• Operating temperature: -40 to +70 °C
• Protection degree: IP20
• Housing material: Polyamide (PA)
• Colour: Blue
• Flammability rating: UL 94 V-0

Recommendations

Verify relay compatibility before ordering. Use appropriate wire sizes and torque settings to ensure reliable connections. Follow local electrical codes during installation.
