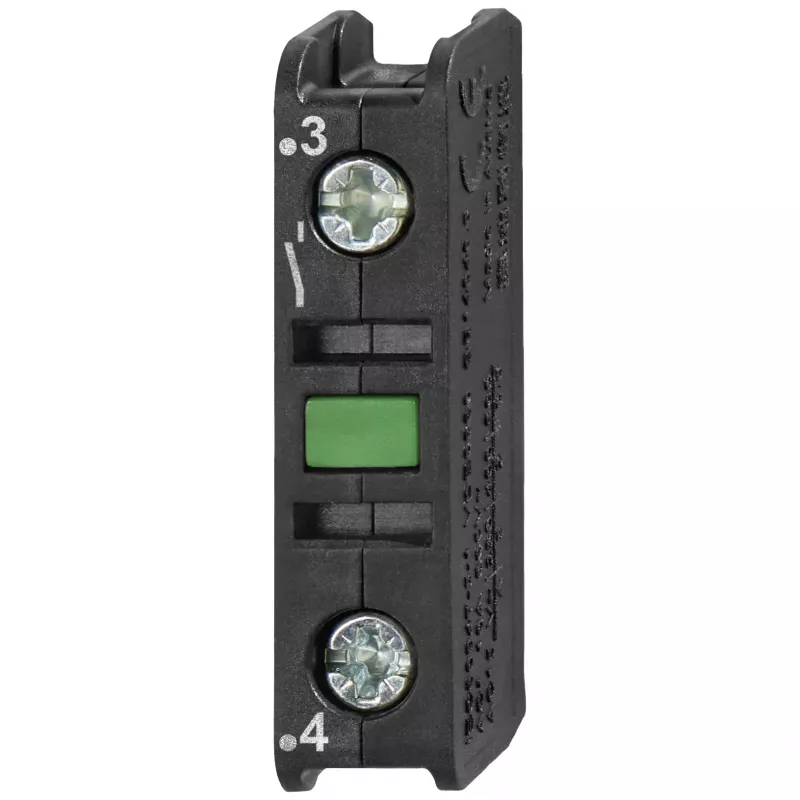

Finder interruptor auxiliar para contactores modulares 6K.13 y 6K.14 (06K.11)

When a modular contactor needs additional signaling or control contacts, this auxiliary switch provides the solution. The Finder 06K.11 adds one normally open and one normally closed contact to compatible 6K.13 and 6K.14 contactors, enabling status feedback, interlocking, or control of secondary circuits.

Who is it for

Electricians and panel builders who install Finder 6K.13 or 6K.14 modular contactors and require extra auxiliary contacts for control or signaling purposes.

Main features

• Adds 1 NO + 1 NC contact to compatible modular contactors
• Front mounting for easy installation
• Screw terminals accept solid or stranded wire from 0.5 to 2.5 mm²
• Rated for 6 A at 400 V AC (AC-15) and 0.5 A at 240 V DC (DC-13)
• Self-extinguishing thermoplastic housing

Specifications

• Contact configuration: 1 NO + 1 NC
• Rated operational current (AC-15): 6 A
• Rated operational voltage (AC-15): 400 V AC
• Rated operational current (DC-13): 0.5 A
• Rated operational voltage (DC-13): 240 V DC
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Thermal current (Ith): 10 A
• Number of poles: 2
• Terminal type: Screw terminals
• Wire size (solid): 1 x 0.5 - 2.5 mm²
• Wire size (stranded): 1 x 0.5 - 2.5 mm²
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +85 °C
• Degree of protection: IP20 (terminals)
• Housing material: Self-extinguishing thermoplastic

Tips

Mount the auxiliary switch on the front of the contactor after the main device is installed. Ensure the contactor is de-energized before installation.
