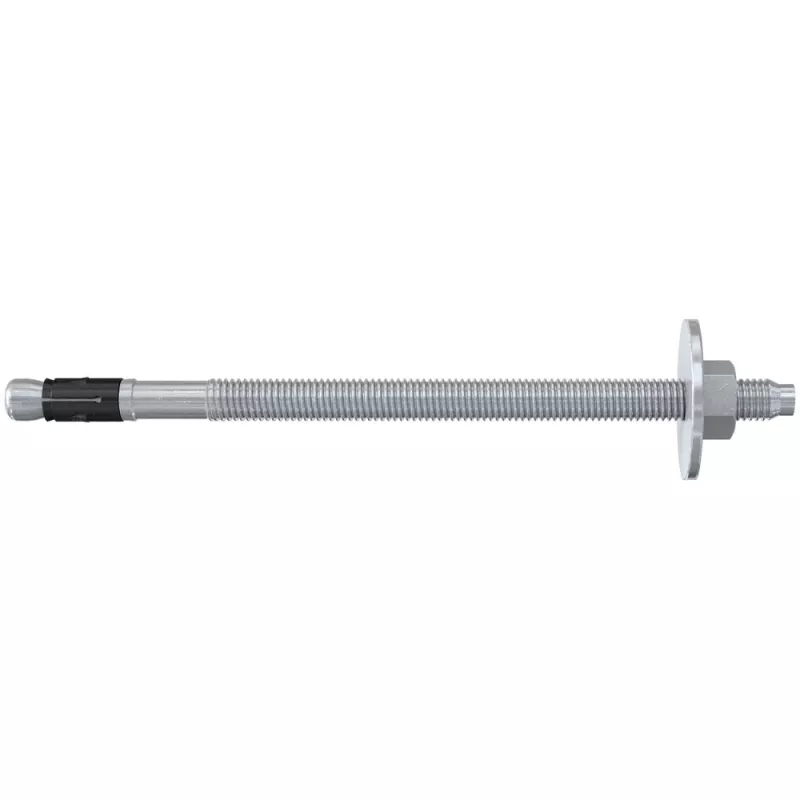

Fischer 564644 FAZ II Plus 8/10 GS anclaje pasante M8, acero galvanizado electrolíticamente, 100 uds.

The Fischer FAZ II Plus 8/10 GS stands out as a high-performance through bolt anchor engineered for secure fastening in cracked and non-cracked concrete. Its M8 thread and electro-galvanized steel construction provide reliable load-bearing capacity for structural applications, while the 100-piece pack offers convenience for larger projects.

Highlights

• ETA-approved for cracked and non-cracked concrete (C20/25 to C50/60)
• Electro-galvanized steel (GS) for standard indoor corrosion protection
• Through-fixing installation with hex nut and washer
• Pack of 100 anchors for efficient job-site use

In daily use

Designed for railings, consoles, steel constructions, and cable trays, this anchor simplifies installation with a drill hole diameter of 8 mm and a minimum anchorage depth of 45 mm. The 10 mm maximum fixture thickness allows secure attachment of base plates or brackets, while the 13 mm wrench size ensures easy tightening.

Full specifications

• Anchor type: Through bolt anchor
• Material: Electro-galvanized steel (GS)
• Thread size: M8
• Drill hole diameter: 8 mm
• Anchor length: 80 mm
• Max. usable length / clamping thickness: 10 mm
• Min. drill hole depth: 70 mm
• Min. anchorage depth: 45 mm
• Wrench size: 13 mm
• Installation type: Through-fixing
• Base materials: Cracked and non-cracked concrete (C20/25 to C50/60)
• Approval: ETA-Option 1
• Corrosion protection: Standard (for dry indoor conditions)
• Head type: Hex nut with washer
• Pack quantity: 100 pieces

Final note

With its robust design and ETA approval, the FAZ II Plus 8/10 GS delivers dependable anchoring performance for professional applications.
