Fischer Anclaje de reacción varilla roscada RG M10x130 R (pack de 10) 50264

Securing heavy loads in cracked or non-cracked concrete demands a fastening solution that combines high load capacity with reliable performance. The Fischer Reaction Anchor Threaded Rod RG M10x130 R provides a robust connection when used with Fischer injection mortars, making it suitable for structural applications where safety is critical.

Who is it for

This threaded rod is intended for professional installers, contractors, and engineers who need a certified anchoring system for concrete. It is ideal for fixing steel structures, railings, machinery, and facade elements in both new construction and renovation projects.

Main features

• Metric M10 thread with 130 mm rod length for versatile embedment depths.
• Electro-galvanized steel construction offers corrosion protection for dry indoor conditions.
• Compatible with Fischer RM, RM II, and RSB injection mortars for a complete chemical anchoring system.
• European Technical Assessment (ETA) approval for use in cracked and non-cracked concrete.
• Supplied in a pack of 10 rods for efficient project planning.

Specifications

• Product type: Threaded rod
• Anchor system type: Reaction anchor (chemical anchor)
• Thread diameter: M10
• Rod length: 130 mm
• Material: Electro-galvanized steel
• Corrosion protection: Zinc plated
• Quantity per pack: 10 pieces
• Compatible anchor capsules: Fischer RM, Fischer RM II, Fischer RSB
• Approval: ETA (European Technical Assessment)
• Substrate suitability: Cracked and non-cracked concrete

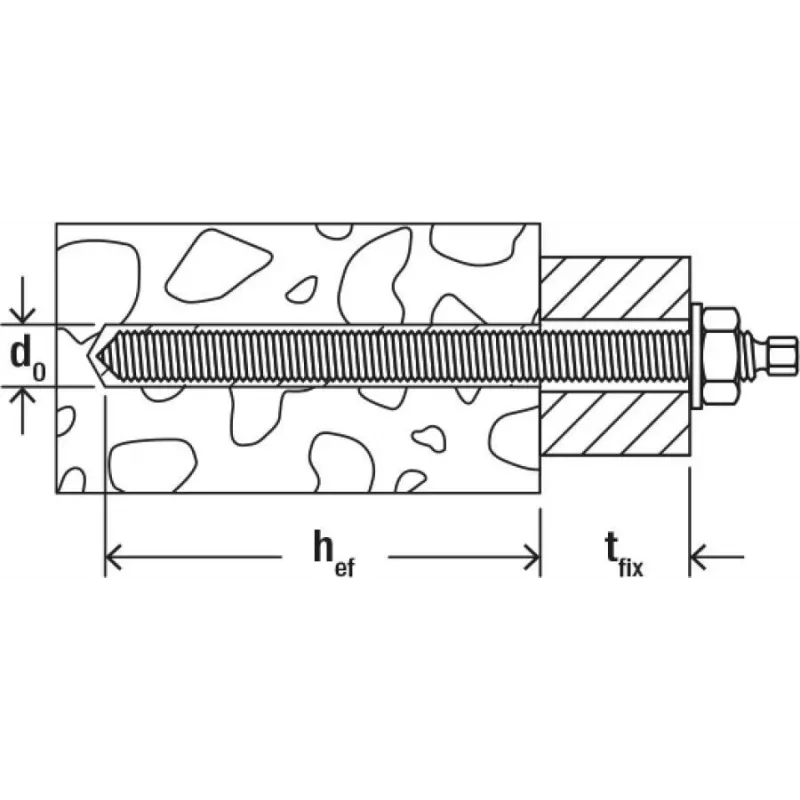

• Installation type: Pre-positioned installation
• Recommended drill hole diameter: 12 mm
• Product series: RG M
• Thread type: Metric
• Environmental use: Dry indoor conditions

Tips

For optimal performance, clean the drill hole thoroughly before injecting the mortar and use the recommended drill hole diameter of 12 mm. Ensure the rod is free of oil and debris before installation. Always follow the mortar manufacturer's instructions and local building codes.
