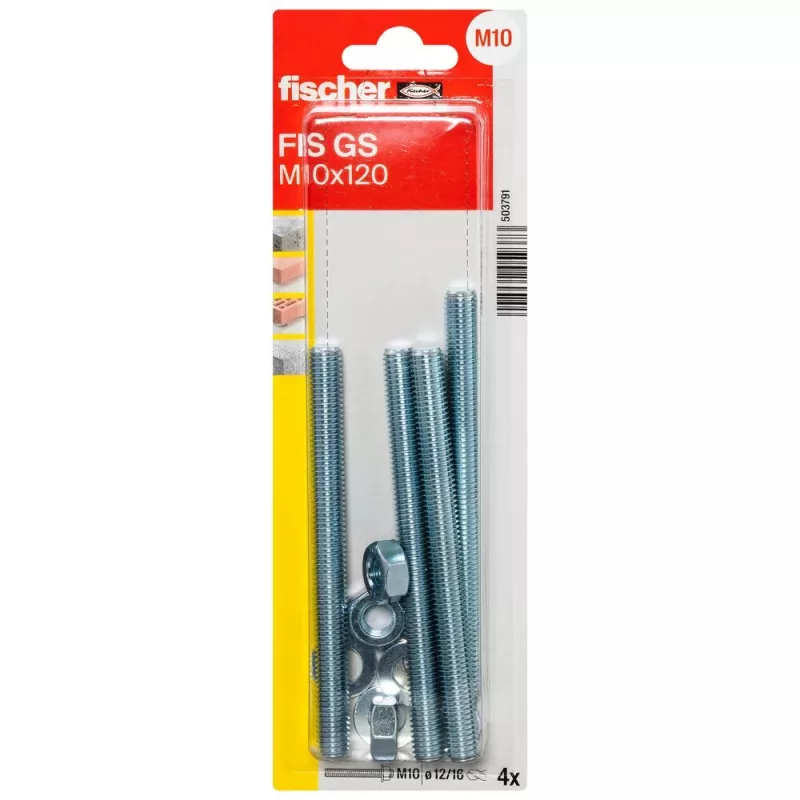

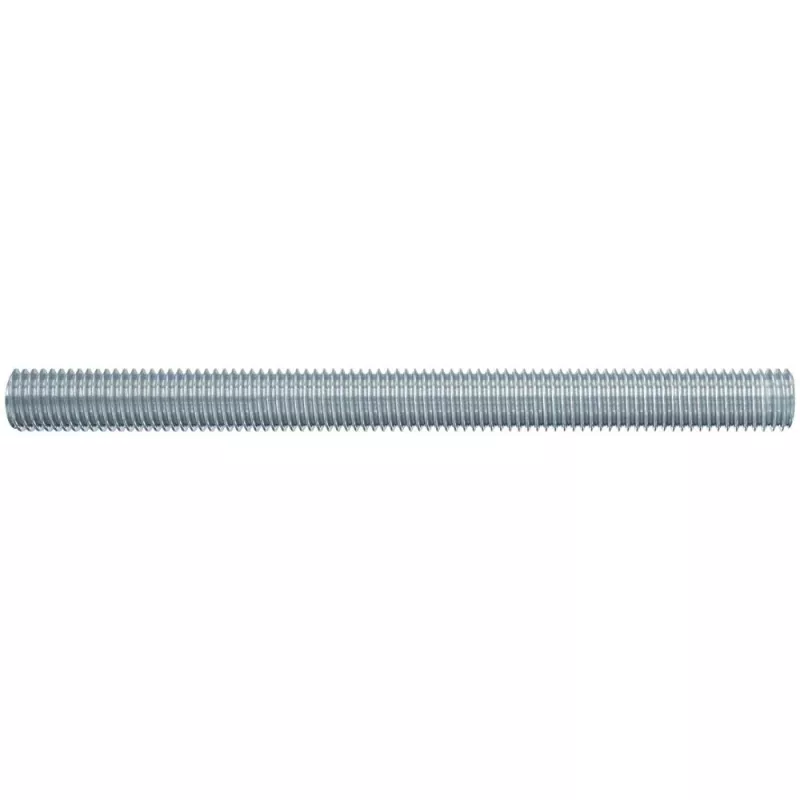

Fischer FIS GS M10 x 120 K NV anclaje roscado 120 mm, acero galvanizado, 1 ud. 503791

The Fischer FIS GS M10 x 120 K NV is a threaded anchor designed for heavy-duty fixings in cracked and non-cracked concrete. Its galvanized steel construction with zinc plating provides reliable corrosion protection for dry indoor applications.

Advantages

This anchor is suitable for pre-positioned and push-through installation methods, allowing flexibility in mounting. It is approved under ETA Option 1 for concrete, ensuring compliance with European technical standards for structural fastenings.

Suitable for

• Steel constructions
• Railings
• Machinery
• Consoles

Key specifications

• Thread diameter: M10
• Total length: 120 mm
• Material: Galvanized steel
• Drill hole diameter: 12 mm
• Minimum drill hole depth: 120 mm
• Quantity per pack: 1 piece

Recommendations

Use with Fischer injection mortars such as FIS V, FIS EM, or FIS SB for optimal performance in concrete base materials C20/25 to C50/60.
