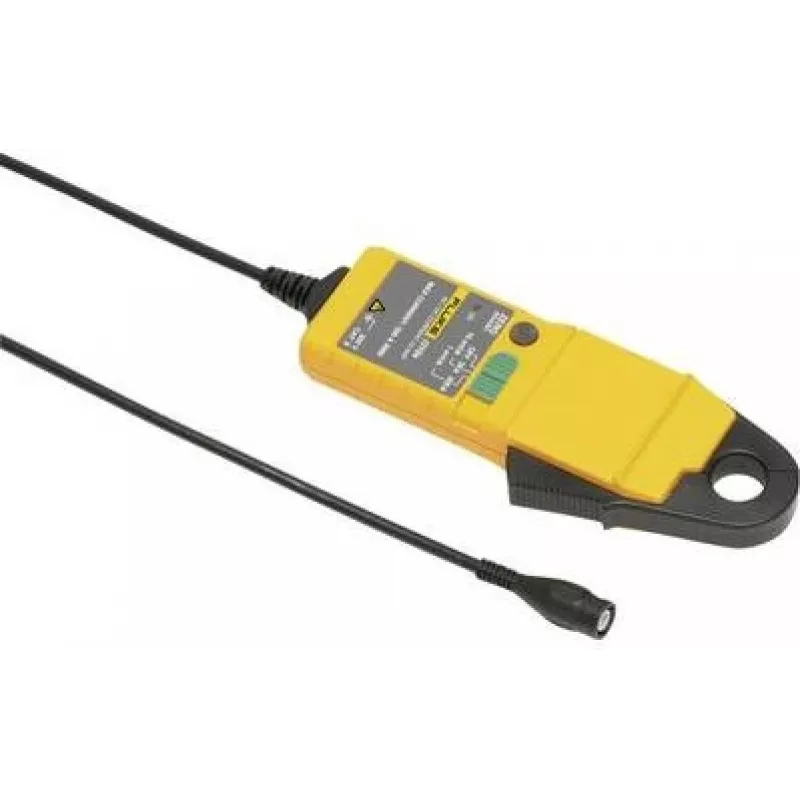

Fluke i310s Pinza amperimétrica de sonda AC/DC, 0,5 A a 400 A, BNC, cable de 2 m, negro/amarillo 2840309

Measure AC and DC current from 0.5 A to 400 A with a single clamp. The Fluke i310s delivers 1 mV/A output over a BNC connection, with a 32 mm jaw opening and a 2 m cable for flexible positioning.

Overview

The Fluke i310s is a current clamp probe designed for use with oscilloscopes and other instruments that accept a BNC input. It converts current into a voltage signal (1 mV per amp) for easy display and analysis. The clamp handles both AC and DC, with a frequency response up to 100 kHz for AC signals. The jaw opens to 32 mm, accommodating conductors up to that diameter. The probe is powered by a 9V alkaline battery and operates from -10 °C to 50 °C.

What stands out

• Wide current range: 0.5 A to 300 A AC RMS, 0.05 A to 400 A DC
• High bandwidth: DC to 100 kHz for accurate waveform capture
• Large jaw opening: 32 mm for clamping onto thick cables
• BNC connector with 2 m cable for easy connection to test equipment
• Safety rated CAT III 600V for use in industrial environments

Technical details

• Product type: AC/DC current clamp
• AC current range: 0.5 A to 300 A RMS
• DC current range: 0.05 A to 400 A
• Output sensitivity: 1 mV/A
• Frequency bandwidth: DC to 100 kHz
• Jaw opening: 32 mm (1.25 inches)
• Connector type: BNC
• Cable length: 2 m
• Safety rating: CAT III 600V
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 85 °C
• Power source: 9V alkaline battery (NEDA 1604A, IEC 6LR61)
• Battery life: 50 hours (typical)
• Colour: Black / Yellow
• Overload protection: 600 A
• DC accuracy (10A-400A): ±(1% + 0.5 A)

Our verdict

The Fluke i310s is a versatile and accurate current clamp for professionals who need to measure both AC and DC currents up to 400 A with high bandwidth. Its large jaw and BNC output make it compatible with a wide range of test equipment.
