VOLTCRAFT MSB-132 Cable de medición rojo de 1m conector de 4mm a conector de 4mm 10A 1000V CAT II VC-18709980

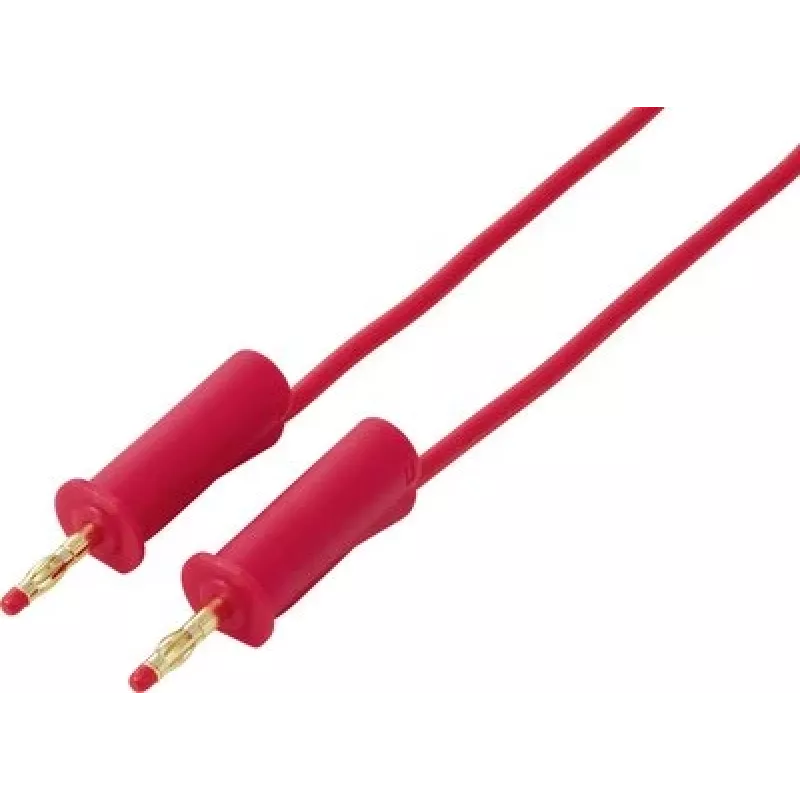

When you're troubleshooting a motor drive in a busy industrial panel, the last thing you want is a flimsy test lead that slips or adds resistance. The VOLTCRAFT MSB-132 is a single 1-metre red test lead with nickel-plated 4mm banana plugs on both ends, built for reliable measurements in demanding environments. It handles up to 10A and 1000V CAT II, so you can confidently probe power supplies, control circuits, and lab equipment.

Key specifications

• Length: 1 m
• Connectors: 4mm banana plug to 4mm banana plug, nickel-plated brass
• Conductor cross-section: 2.5 mm²
• Max current: 10 A
• Max voltage: 1000 V AC/DC, CAT II
• Insulation: PVC, red
• Resistance: < 30 mΩ per metre
• Operating temperature: -10 °C to +70 °C
• Compliance: RoHS

Why choose it

Low contact resistance and robust insulation mean stable readings and long service life. The flexible PVC jacket resists abrasion and stays manageable even in tight spaces. Nickel-plated plugs provide consistent contact and resist corrosion, ensuring your measurements remain accurate over time.

Ideal use cases

• Bench testing of power supplies and electronic circuits in labs
• Field service for industrial control panels and machinery
• Connecting multimeters to test points in CAT II environments
• Educational demonstrations and electronics prototyping

Good to know

This is a single lead; for complete measurement setups, you may need additional leads or probes. The 4mm banana plugs are compatible with most multimeters and test instruments. Always verify that your measurement category and voltage ratings match the application.
