Fluke Networks LinkIQ Duo Kit de comprobador de cables y redes Ethernet industrial con adaptadores M12, PoE, hasta 10 Gb/s, Li-Ion, CAT 3-8 6029135

Industrial maintenance technicians and network engineers use the Fluke Networks LinkIQ Duo Industrial Ethernet Kit to validate cable performance and troubleshoot network connectivity in PROFINET and EtherNet/IP environments. This tester combines cable testing, network testing, and PoE verification in one rugged handheld unit with a color LCD display, making it suitable for factory floors and field service.

Key specifications

• Test capabilities: cable testing (wire map, length, distance to fault, split pairs), network testing (switch port identification, advertised speed, duplex, PoE load test, ping, DHCP, nearest switch info), PoE testing
• Supported cable types: shielded and unshielded twisted pair (Cat 3, 5, 5e, 6, 6A, 8), coaxial (with adapter)
• PoE testing standards: IEEE 802.3af/at/bt (Type 1-4), up to 90W
• Network link speed detection: up to 10 Gb/s (10GBASE-T)
• Industrial Ethernet support: M12-X, M12-D, RJ45 connectors, PROFINET/EtherNet/IP diagnostics
• Display: color LCD
• Battery: rechargeable lithium-ion
• Max cable length measurement: up to 305 m (1000 ft)
• Wire map test: graphical wire map with distance to fault
• Tone generator: yes (digital and analog)
• Flash port locator: yes
• Data storage: internal memory for test results
• Connectivity: USB-C for data transfer/charging, Wi-Fi for LinkWare Live
• Reporting software: LinkWare PC and LinkWare Live compatible
• Included adapters: M12-X, M12-D, RJ45-RJ45 patch cord

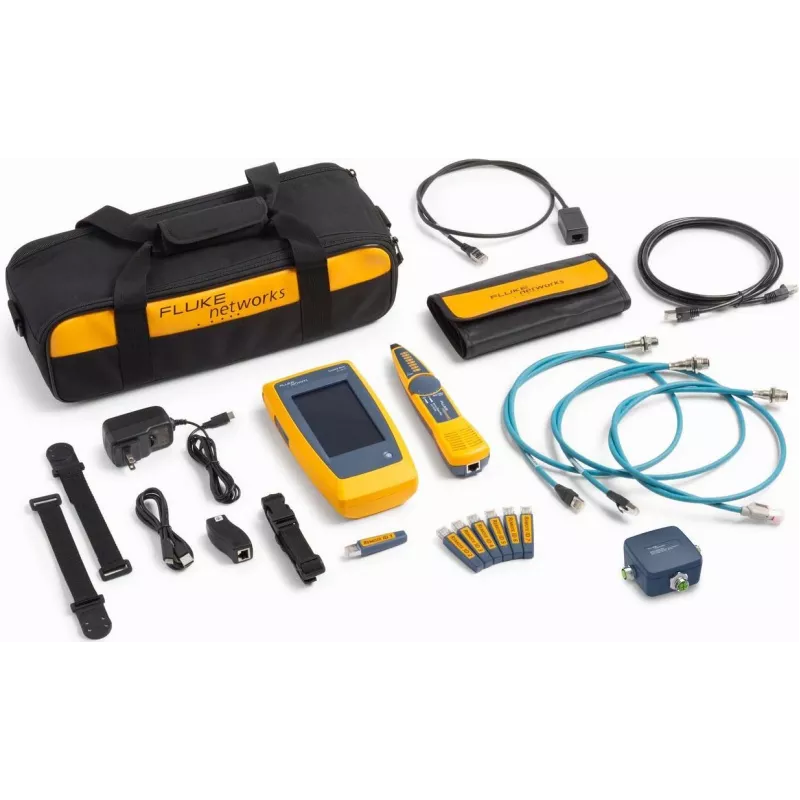

• Kit contents: LinkIQ main unit, LinkIQ Remote ID #1, M12-X adapter, M12-D adapter, RJ45-RJ45 patch cord (Cat 6A), AC charger, USB-C cable, carrying case
• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Safety rating: IEC 61010-1: Pollution Degree 2

Why choose it

The LinkIQ Duo combines cable qualification and network diagnostics in one device, eliminating the need for separate tools. Its support for M12 connectors and industrial protocols makes it a practical choice for automation environments.

Ideal use cases

• Commissioning and troubleshooting PROFINET and EtherNet/IP networks
• Verifying cable runs up to 305 m and locating faults
• Testing PoE availability and load capacity for powered devices
• Documenting test results with LinkWare software

Good to know

The kit includes the necessary adapters for M12-X and M12-D connections, along with a remote ID for one-person testing. The rechargeable battery and USB-C connectivity support field use and data transfer.
