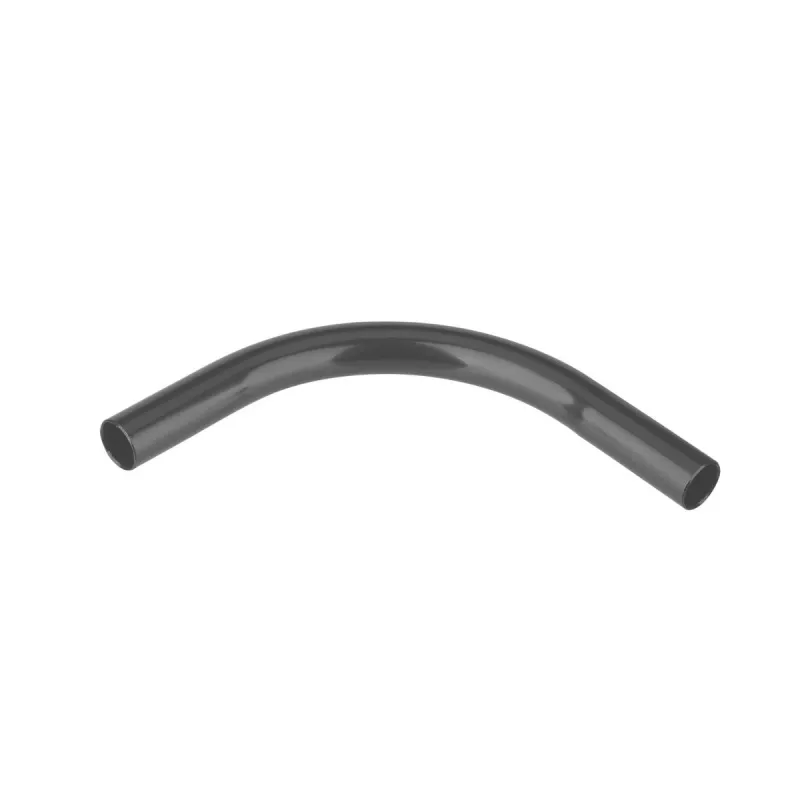

FRAENKISCHE codo de tubo de acero para StaroSteck-ES, 32mm, lacado negro 20360032

This steel conduit bend is specifically engineered for the StaroSteck-ES system, providing a reliable 90° direction change in electrical installations. Its push-fit connection eliminates the need for additional tools or fittings, simplifying assembly and reducing installation time. The black lacquered finish offers corrosion protection while maintaining a professional appearance.

Highlights

• Compatible with OBO Bettermann StaroSteck-ES conduit system
• Nominal diameter: 32 mm
• 90° bend angle with 100 mm bend radius
• Push-fit connection for quick, secure joining
• Black lacquered steel for durability and corrosion resistance

In daily use

Ideal for routing cables around corners in industrial and commercial settings, this bend maintains the integrity of the conduit system while allowing for smooth cable pulling. The lacquered surface resists scratches and environmental wear, ensuring long-term performance.

Full specifications

• Material: Steel
• Surface finish: Lacquered
• Colour: Black (RAL 9005)
• Connection type: Push-fit
• Halogen-free: Yes
• Compression strength class: 3 (Medium)
• Impact resistance class: 3 (Medium)
• Temperature range: -25 to +60 °C
• IP protection rating: IP40 (when installed as part of the StaroSteck-ES system)
• Standard: DIN EN 61386-21

Final note

A dependable component for completing your conduit installation with precision and ease.
