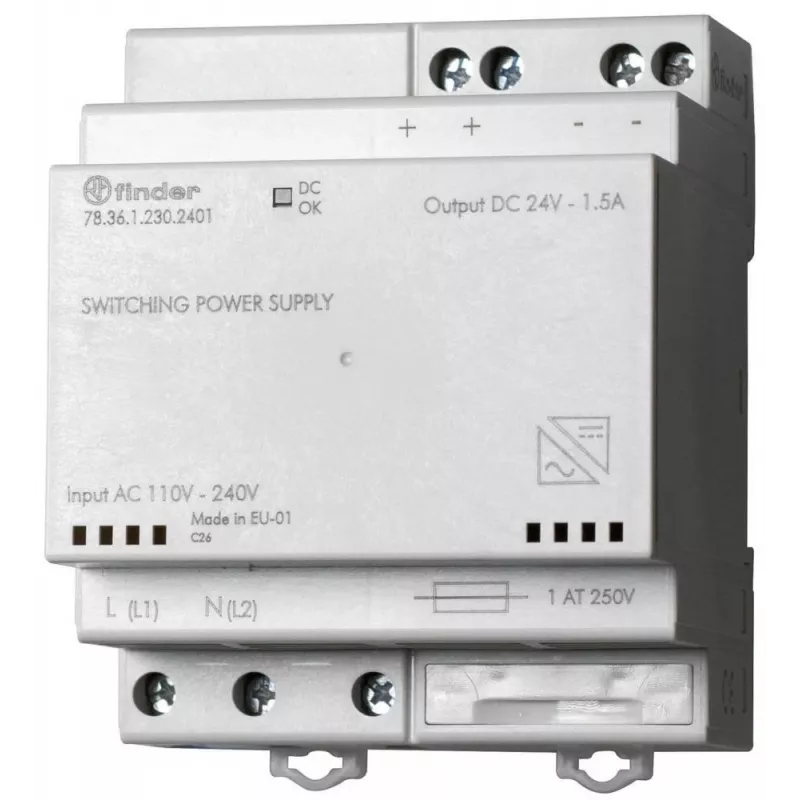

Fuente de alimentación conmutada Finder 78.36.1.230.2402 36W 24V DC 1,5A carril DIN

Switching power supply delivering 36 W with a 24 V DC output at 1.5 A, designed for DIN rail mounting. The unit accepts a universal AC input of 100-240 V, making it suitable for diverse industrial and building automation installations.

Advantages

High efficiency above 85% reduces energy consumption and heat generation. Integrated protection against short circuit, overload, and overvoltage safeguards connected equipment. The compact plastic housing is suitable for DIN rail installation, saving space in control cabinets.

Suitable for

• Industrial control systems
• Building automation
• DIN rail distribution boards
• 24 V DC equipment power

Key specifications

• Input voltage: 100-240 V AC, 50/60 Hz
• Output: 24 V DC, 1.5 A, 36 W
• Efficiency: >85%
• Protection: short circuit, overload, overvoltage
• Operating temperature: -20°C to +70°C
• Insulation class: Class II
• Ripple & noise: <150 mVp-p
• Housing material: plastic

Recommendations

For reliable 24 V DC power in DIN rail applications, verify that the load does not exceed 1.5 A and ensure adequate ventilation within the enclosure.
