Fuente de alimentación Cooler Master ELITE NEX White 600W

The Cooler Master ELITE NEX White 600W is a reliable ATX power supply unit designed for entry-level PC builders. It delivers 600 W of continuous power with 80 PLUS certified efficiency (approximately 85% at typical loads) and supports AC input of 200–240 V at 50/60 Hz. The PSU includes a 24-pin ATX motherboard connector, SATA power cables (150 mm and 400 mm), a 120 mm cooling fan and an active cooling system to maintain stable operation under load. It is certified by TUV, cTUVus, CE, FCC, CCC, EAC and UKCA.

Advantages

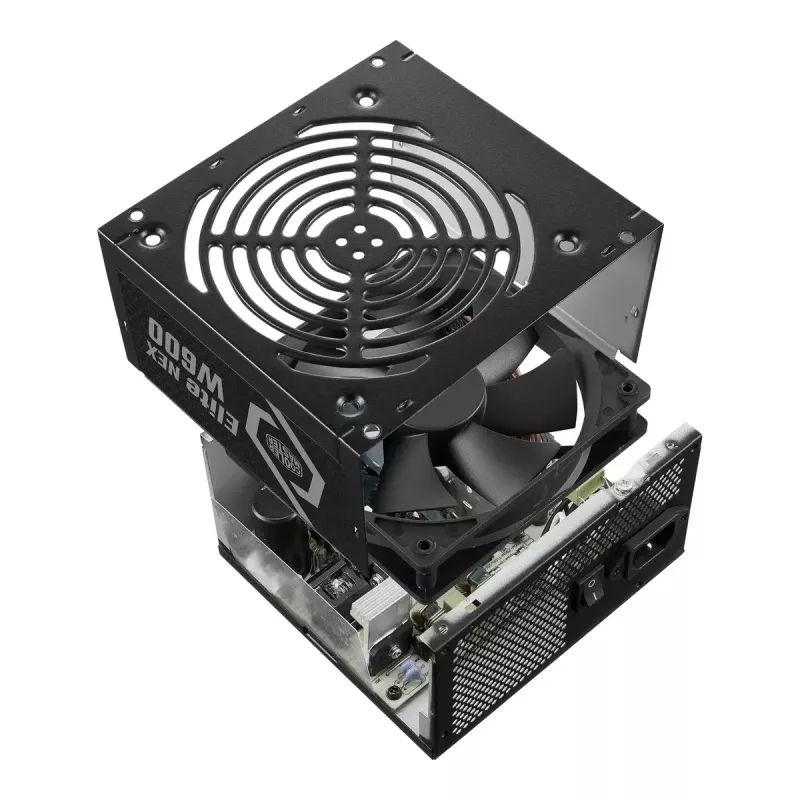

The ELITE NEX White integrates active power factor correction and a dual-forward topology, providing improved current stability and protections commonly found in higher-end units. It tolerates high peak loads, supplying up to an extra 100 W for short bursts (up to 20 seconds), and is rated to operate comfortably at ambient temperatures up to 40°C. Built with durability and multi-environment safety in mind, it performs reliably in conditions such as high altitude or elevated humidity.

Suitable for

• Entry-level desktop builds and office PCs
• Home multimedia and light gaming systems
• Systems requiring steady 600 W power with basic cable connectivity (24-pin ATX, SATA)
• Users seeking an 80 PLUS certified, compact ATX PSU

Key specifications

• Total power: 600 W
• Efficiency: 85% (80 PLUS certified)

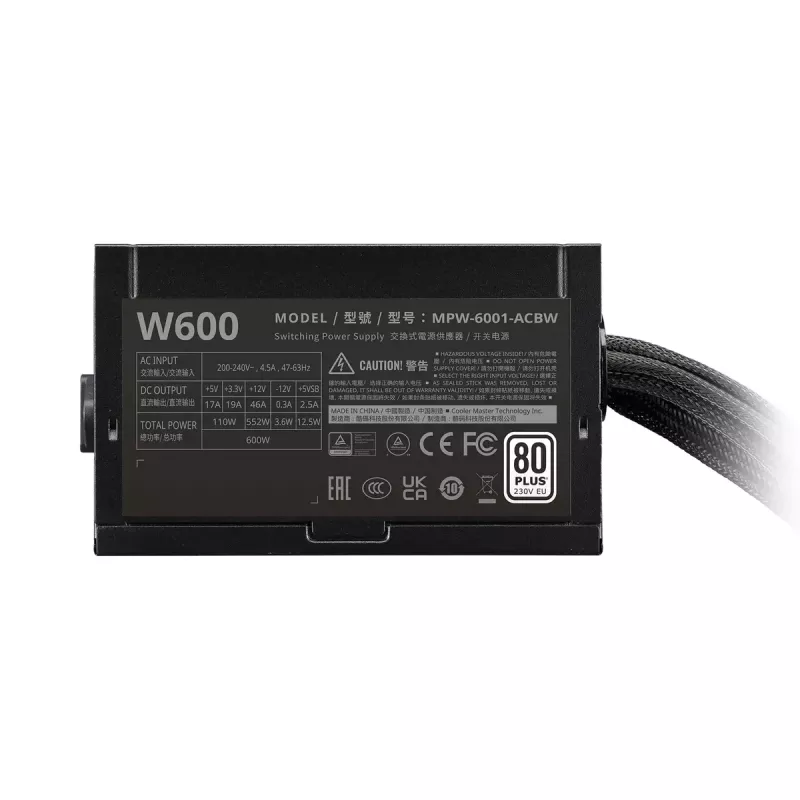

• AC input: 200–240 V, 50/60 Hz
• Motherboard connector: 24-pin ATX
• Fan diameter: 120 mm
• Weight: 1.49 kg
• Product colour: Black (white model name indicates series)
• Certifications: TUV, cTUVus, CE, FCC, CCC, EAC, UKCA

How to use

Install the PSU in a compatible ATX case following the motherboard and case manufacturer instructions. Connect the 24-pin ATX cable to the motherboard and attach SATA power cables to drives as required. Ensure the AC input matches 200–240 V and that all connectors are firmly seated. Maintain clearance around the 120 mm fan for unobstructed airflow. For systems with peak power needs, the unit can supply short bursts of additional power, but continuous loads should remain within the rated 600 W.

Recommendations

Place the power supply in a well-ventilated case, avoid obstructing the fan, and use a properly rated mains cable. Use a PSU wattage calculator to confirm 600 W meets your system demands before purchase.
