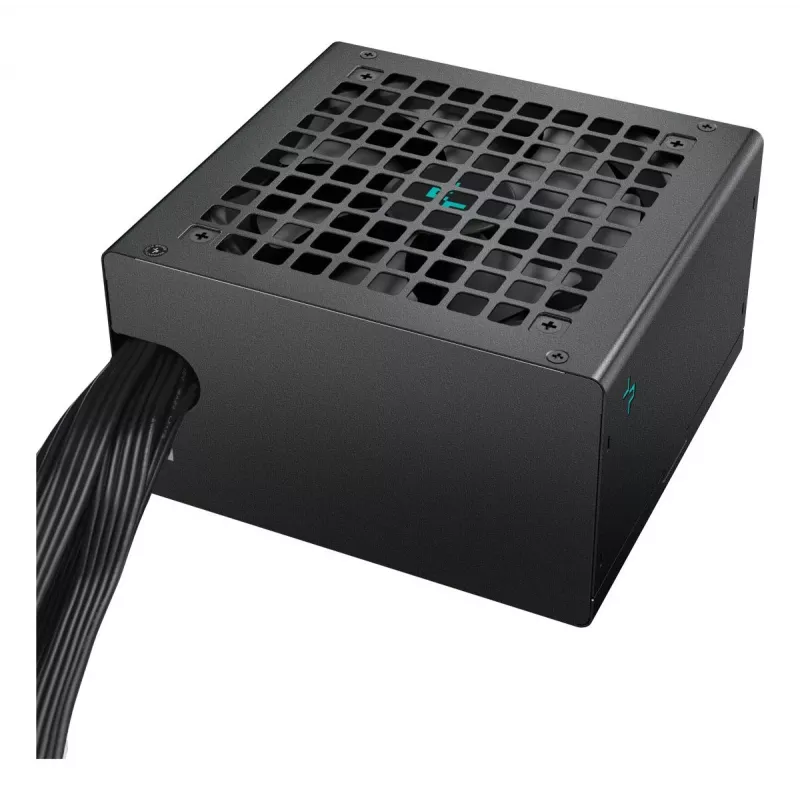

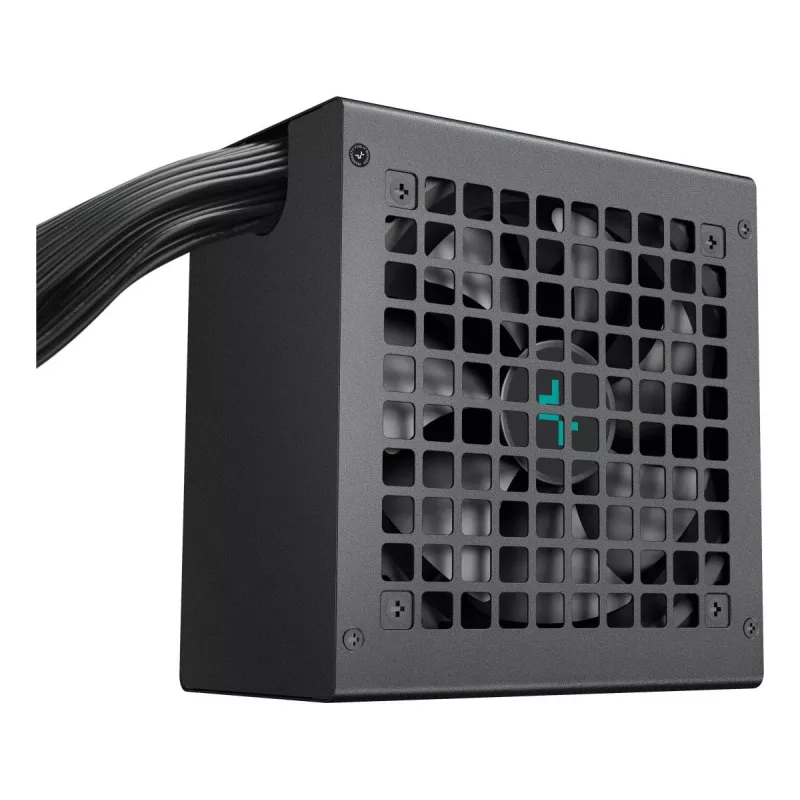

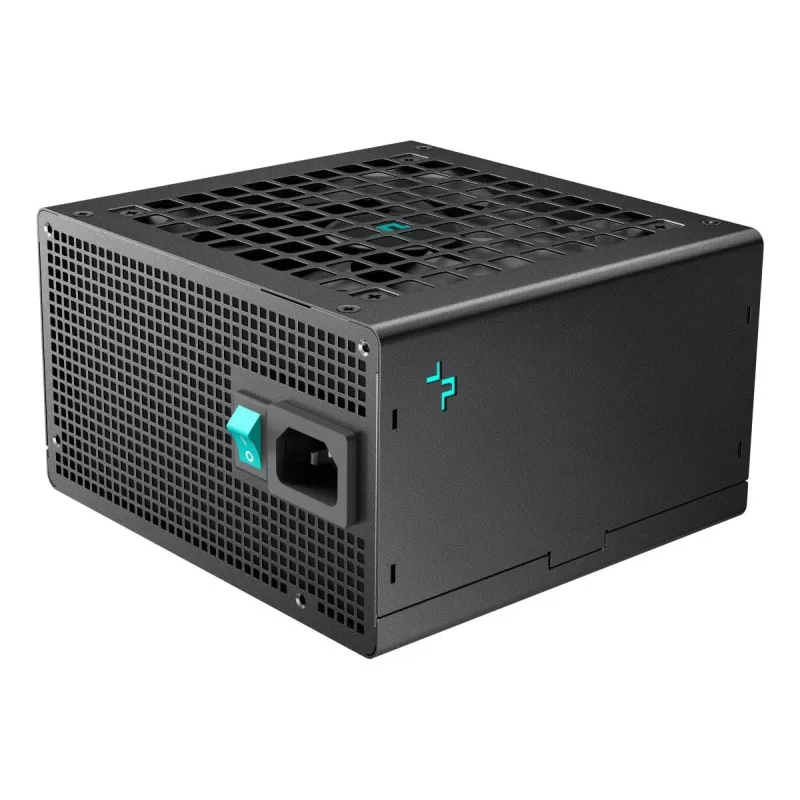

Fuente de alimentación DeepCool PL750D 750 W ATX 3.0 80 PLUS Bronze, ventilador de 120 mm, 20+4 pines, negro

The DeepCool PL750D 750 W power supply unit is a native ATX3.0 PSU designed to provide stable power for modern and legacy desktop systems. It includes a native 12VHPWR (PCIe 5.0) connector rated up to 300 W, three PCIe connectors and two EPS connectors, a 20+4 pin ATX motherboard connector, and multiple SATA power cables. The unit is 80 PLUS Bronze certified and uses a 120 mm hydro-bearing fan for active cooling.

Advantages

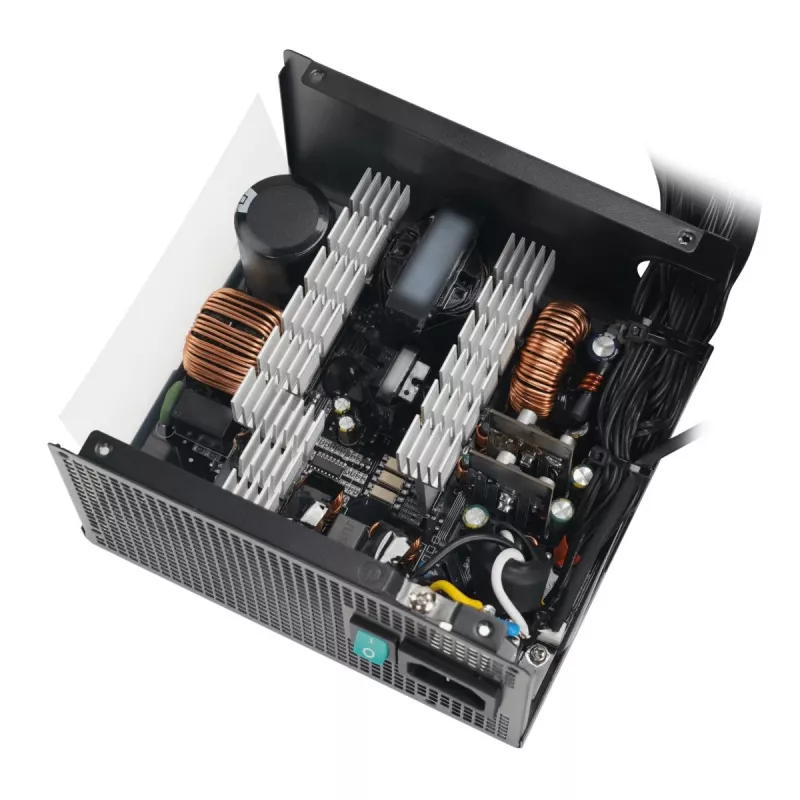

The PL750D supports Intel's ATX3.0 transient response, able to supply double the total system power for 0.1 ms to handle power spikes. High-grade electrolytic capacitors maintain a hold-up time of ≥16 ms at full load. The PSU uses active PFC, DC-to-DC conversion and a dual-transistor forward topology for stable voltage regulation and reliable operation up to 5,000 m altitude. Built-in protections include OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO. A 5-year limited warranty is provided.

Suitable for

• Gaming desktops requiring a native 12VHPWR (PCIe 5.0) connection
• Workstations and PCs that need 750 W continuous power
• Systems using multiple PCIe and EPS power connections
• Builds where 80 PLUS Bronze efficiency and quiet 120 mm cooling are desired

Key specifications

• Total power: 750 W
• Efficiency: 80 PLUS Bronze (approx. 85% at typical load)
• Motherboard connector: 20+4 pin ATX

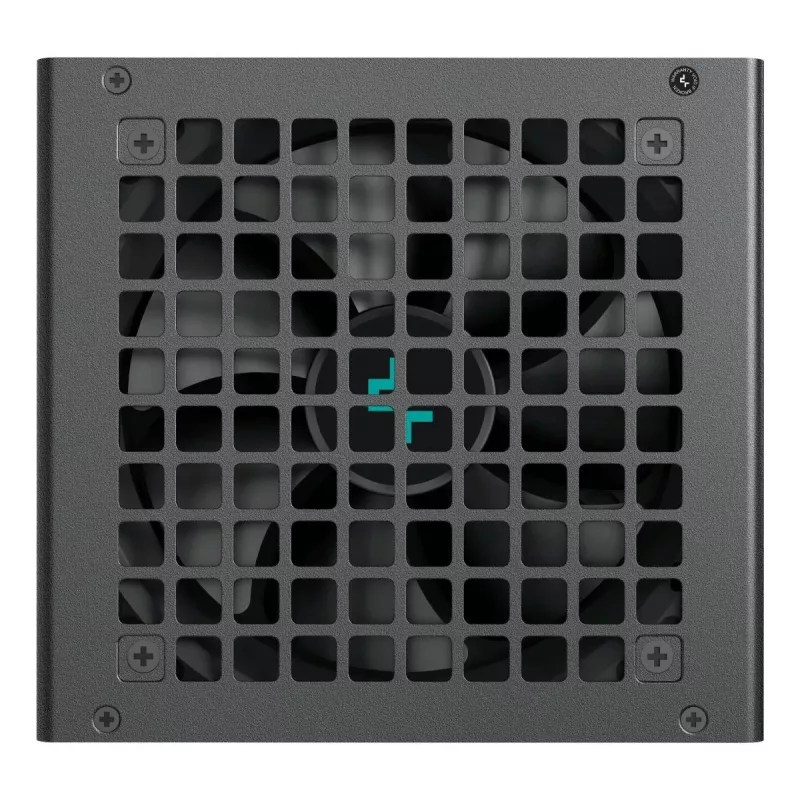

• Fan diameter: 120 mm hydro-bearing
• Native 12VHPWR (PCIe 5.0) connector rated up to 300 W; three PCIe and two EPS connectors
• AC input: 100–240 V, 50/60 Hz
• Product colour: Black

How to use

Install the PL750D into an ATX-compatible case and connect the 20+4 pin ATX cable to the motherboard. Use the native 12VHPWR cable for compatible graphics cards, and connect additional PCIe, EPS and SATA cables to components as required. Ensure the AC mains voltage matches the PSU input range (100–240 V) and secure all connectors firmly before powering on the system. Allow adequate airflow around the PSU and position cables to avoid blocking the 120 mm fan.

Ieteicamais lietošanas veids

For reliable operation, keep the interior of the PC free from dust, maintain ambient temperatures within manufacturer recommendations, and follow safe grounding and anti-static procedures during installation.
